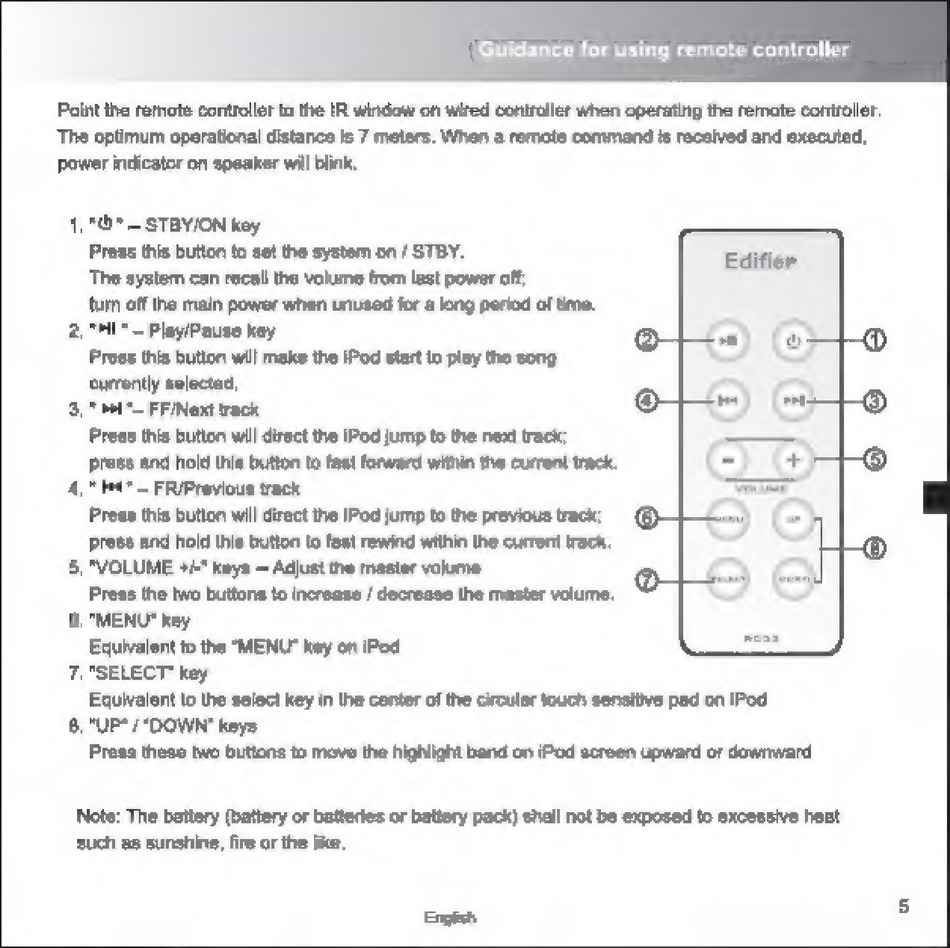

' Guidance for using remote controller
Point the remote controller to the IR window on wired controller when operating the remote controller,
'The optimum operational distance is 7 meters. When a remote command is received and executed,
power indicator
on speaker wil blink.
1 . * 0 * = STBYION key
Press this button to set the system on / STBY.
The system can recal the volume from last power off:
tum off the main power when unused for a long period of time,
2, "I" — Play/Pause key
currently selected,
3," PH FF Nox track
Press this button will direct the iPod jump to the next track;
Press this button will direct the iPod jump to the previous track;
press and hold this button to fast rewind within the current track.
5, "VOLUME ++" keys — Adjust the master volume
Press the two butions to increase / decrease the master volume.
6, "MENU" key
Equivalent to the "MENU" key on ¡Pod
7. "SELECT key
Equivalent to the select key in the center of the circular touch sensitive pad on iPod
8, "UP*/ "DOWN" keys
Press these two buttons to move the highlight band on iPod screen upward or downward
Note: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat
such as sunshine, fire or the like,
