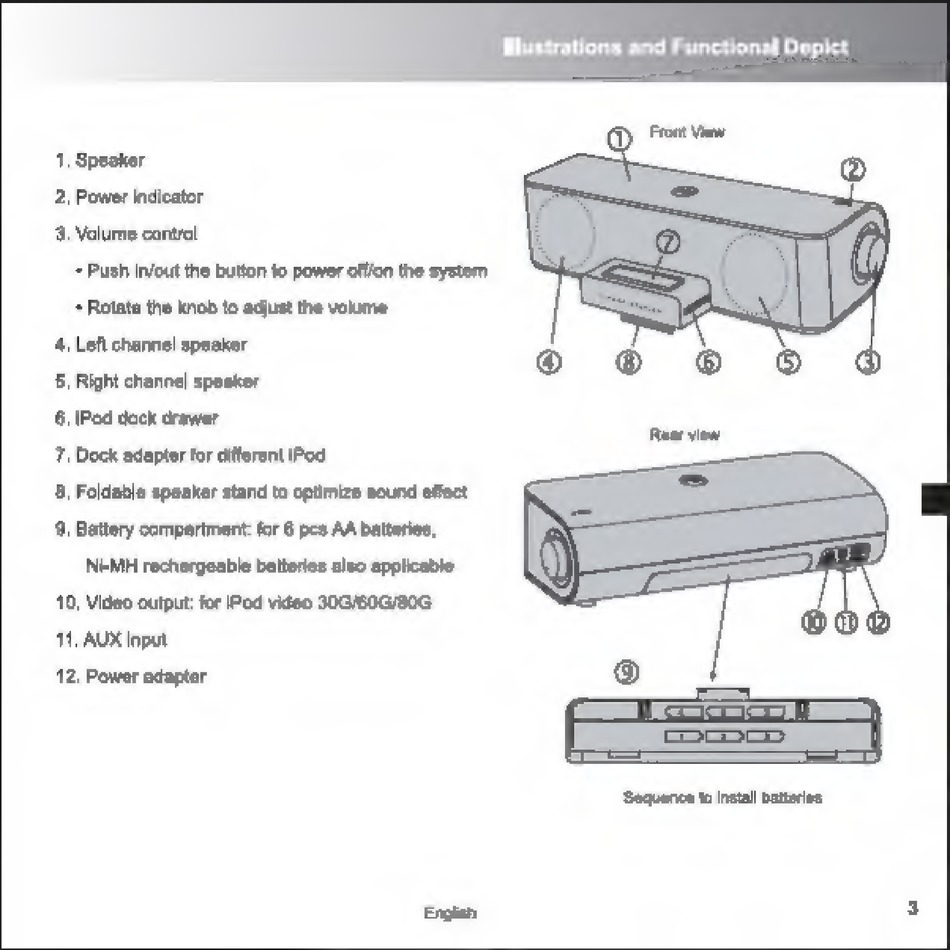

Front View
1, Speaker
2. Power indicator
3. Volume control
* Push in/out the button to power offion the system
+ Rotate the knob to adjust the volume
4, Loft channel speaker © © O O
vew
5, Right channel speaker
6. IPod dock drawer
Rear:
7, Dock adapter for different iPod
8, Foldable speaker stand to optimize sound effect
E
9. Battery compartment: for 6 pes AA batteries,
NEMH rechargeable batteries also applicable
10, Video output: for IPod video 30G/60G/80G
1. AUX input
12, Power adapter ©
'Sequence to install batteries
