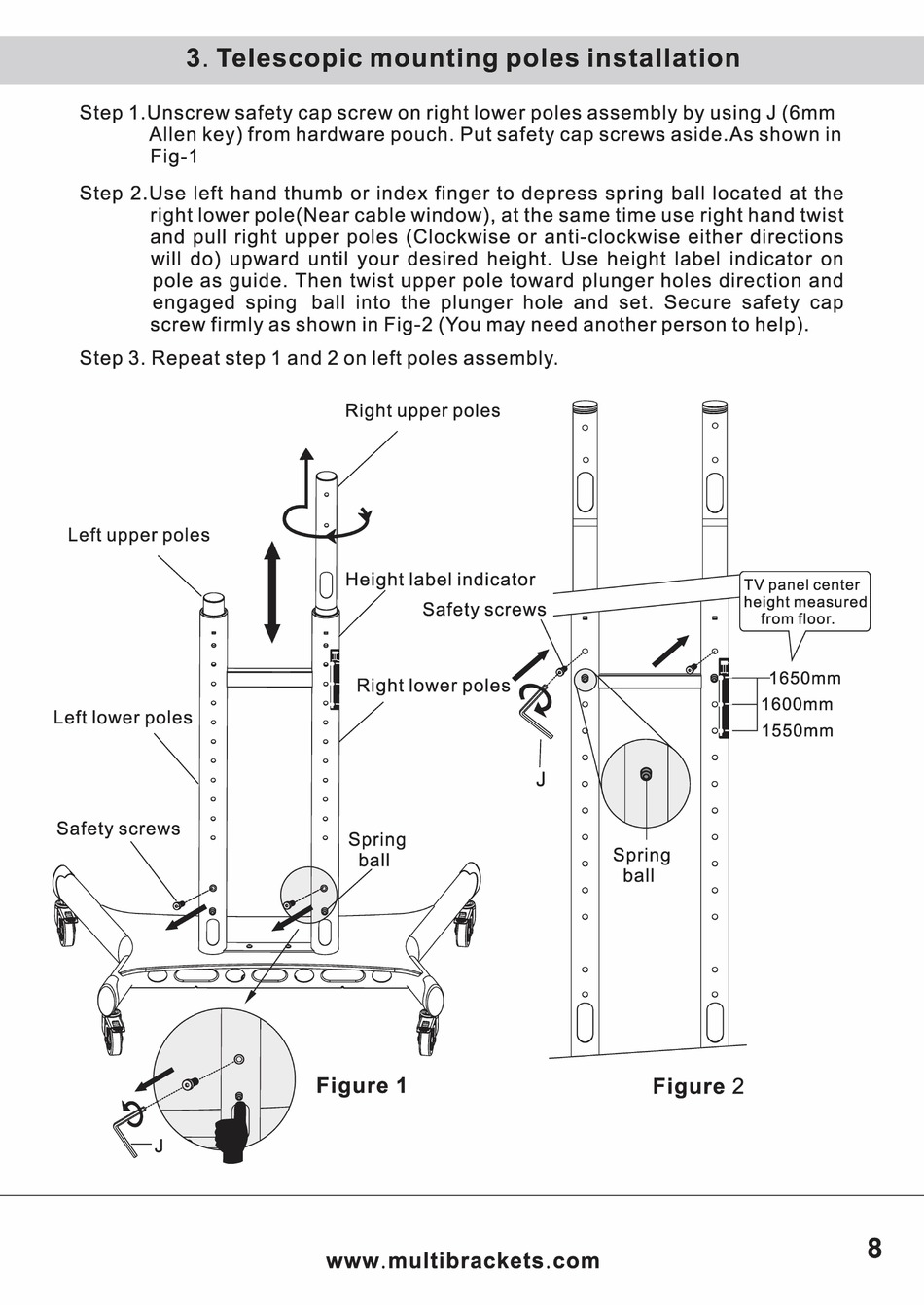

3. Telescopic mounting poles installation
Step 1.Unscrew safety cap screw on right lower poles assembly by using J (6mm
Allen key) from hardware pouch. Put safety cap screws aside.As shown in
Fig-1
Step 2.Use left hand thumb or index finger to depress spring ball located at the
right lower pole(Near cable window), at the same time use right hand twist
and pull right upper poles (Clockwise or anti-clockwise either directions
will do) upward until your desired height. Use height label indicator on
pole as guide. Then twist upper pole toward plunger holes direction and
engaged sping ball into the plunger hole and set. Secure safety cap
screw firmly as shown in Fig-2 (You may need another person to help).
Step 3. Repeat step 1 and 2 on left poles assembly.
Right upper poles
0
0
0 0
0
0
0
Left upper poles
~
0 Height label indicator
TV panel center
Safety screws ..
height measured
/\?
"
from floor.
e
/.
/{i)
g
1650mm
0
Right lower poles~ •
0
1600mm
Left lower poles
0
1550mm
~
0 0
I
0 0
0
0 0
J
0
0 0
0
Safety screws
0 0
0
0
Spring
0 0
ball
0
Spring
0
ball
4)
0 0
0 0
0 0
0 0
0 0
Figure 1
Figure 2
