Multibrackets M Public Floorstand Basic 180 Installationsanleitung Seite 4

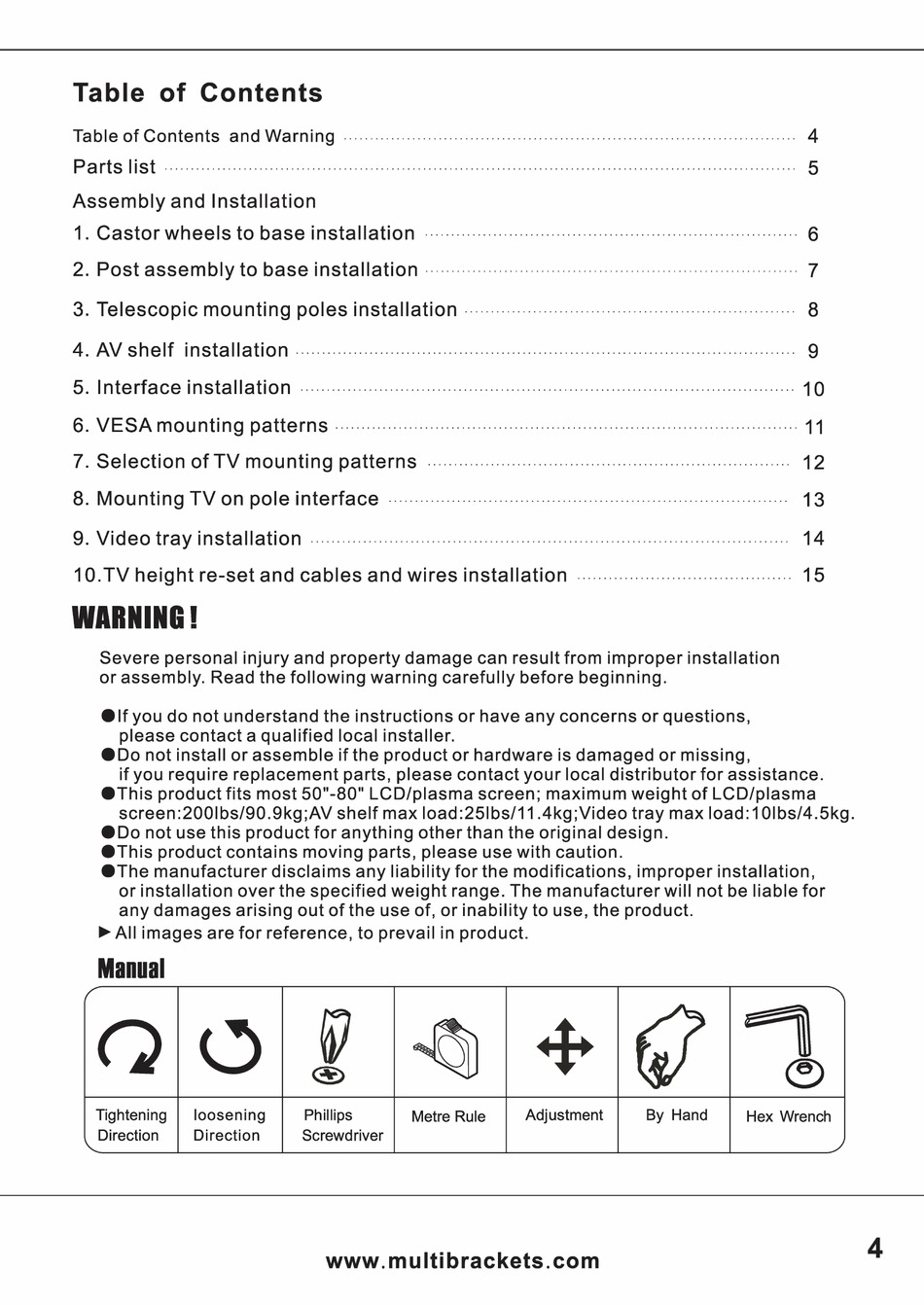

Table of Contents
Table of Contents and Warning ......................................................................................
4
Parts list ........................................................................................................................ 5
Assembly and Installation
1. Castor wheels to base installation •·· • •···· • •···· • •···· • •···· • •···· • •···· • •···· • •···· • •···· • •···· • •···· • • 6
2. Post assembly to base installation •···· • •···· • •···· • •···· • •···· • •···· • •···· • •···· • •···· • •···· • •···· • •···· 7
3. Telescopic mounting poles installation ............................................................... 8
4. AV shelf installation ............................................................................................... 9
5. Interface installation .............................................................................................. 1 O
6. VESA mounting patterns ........................................................................................ 11
7. Selection of TV mounting patterns ..................................................................... 12
8. Mounting TV on pole interface ..... ...... ...... ...... ...... ...... ...... ...... ...... ...... ...... ...... ..... 13
9. Video tray installation ........................................................................................... 14
1 O.TV height re-set and cables and wires installation ......................................... 15
WARNING I
Severe personal injury and property damage can result from improper installation
or assembly. Read the following warning carefully before beginning.
elf you do not understand the instructions or have any concerns or questions,
please contact a qualified local installer.
eDo not install or assemble if the product or hardware is damaged or missing,
if you require replacement parts, please contact your local distributor for assistance.
eThis product fits most 50"-80" LCD/plasma screen; maximum weight of LCD/plasma
screen:200Ibs/90.9kg;AV shelf max load:25Ibs/11.4kg;Video tray max load: 1 0lbs/4.5kg.
eDo not use this product for anything other than the original design.
/
'-
eThis product contains moving parts, please use with caution.
eThe manufacturer disclaims any liability for the modifications, improper installation,
or installation over the specified weight range. The manufacturer will not be liable for
any damages arising out of the use of, or inability to use, the product.
► All images are for reference, to prevail in product.
Manual
Q
0
~
~
+
r;J
4
®
~
Tightening loosening Phillips
Metre Rule
Adjustment By Hand
Hex Wrench
Direction Direction Screwdriver
www.multibrackets.com
'
4
