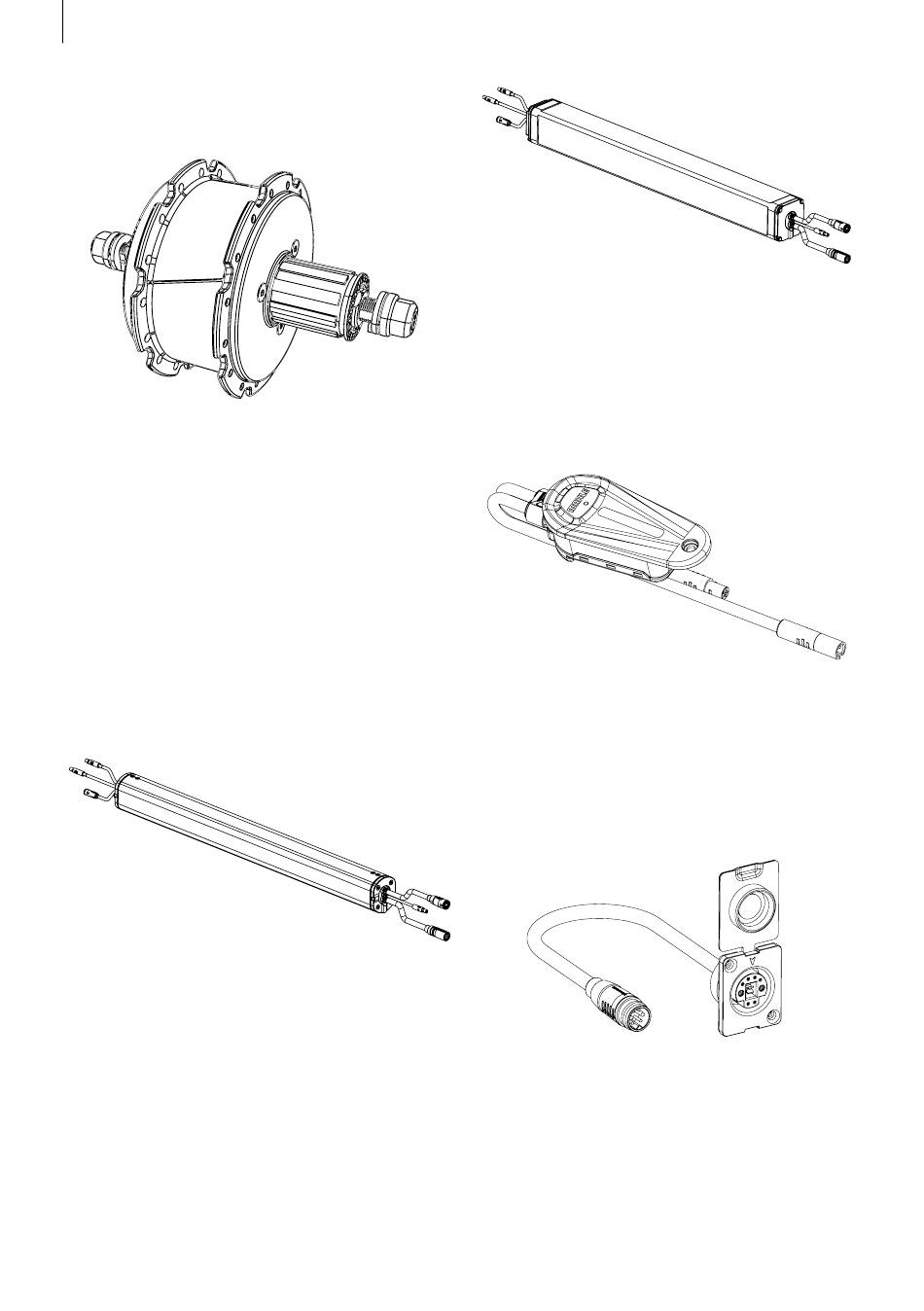

2.1. Main System

Protection Against Dust and splashing water in general,
except where otherwise indicated.

2.1.1. X30 Engine

•
Engine with torque equivalent to that of a 45 Nm
mid-engine.
•
O.L.D. Axis 136.5 mm.
•
Rated voltage: 36 V.
•
Max. speed: 25 km/h or 20 mph (limited by region).
•
Motor connection system by means of a watertight
connector.
•
Standard free wheel installation.
•
CAN-BUS interface.
•
Weight: 1,900 g (without core).

2.1.2. Internal Battery

There are two internal battery options for the MAHLE X30
system depending on their charging capacity.

2.1.2.1 iX2 Battery

•
Capacity: 236 Wh.
•
Rated voltage: 36 V.
•
Maximum charge current: 3.2 A.
•
Measurements: 469.5 x 49.6 x 41.8 mm.
•
CAN-BUS interface.
•
Energy support for accessories: 2A (maximum) /
12 V (maximum).
•
Weight: 1,500 g.

2.1.2.2 iX3 Battery

•
Capacity: 350 Wh.
•
Rated voltage: 36 V.
•
Maximum charge current: 4 A.
•
Measurements: 469.5 x 51 x 52 mm.
•
CAN-BUS interface.
•
Energy support for accessories: 2A (maximum) /
12 V (maximum).
•
Weight: 2250 g.

2.1.3. Control unit

•
Action button.
•
Light sensor.
•
Measurements: 73.1 x 28.2 x 18.9 mm.
•
Dynamic RGB LED interface.
•
CAN-BUS, ANT+ and Bluetooth® interface.
•
Temperature of use: -10 ºC to 60 ºC.
•
Weight: 32 g.

2.1.4. Charging port

•
6-pin connector with single connection.
•
Weight: 24 g.
