DeLUXX Advanced Rollo Slowmotion Bedienungsanleitung Seite 8

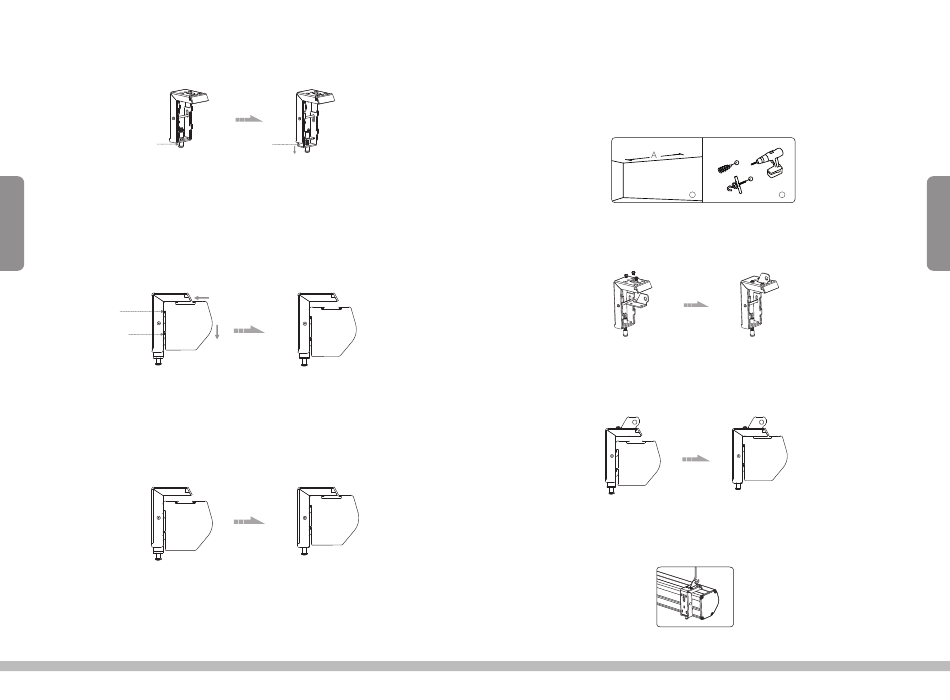

3 . Loosen the locking screw to lower the bracket clamp all the way down.
Fixing screw
Figure 6
3
4. Mount the projection screen by sliding the casing grooves over the bracket hooks. ( Figure 8-9 )
Up groove
Down groove
Figure 8
5. Tighten the locking screw to clamp the screen securely in place. ( Figure 10-11 )
Figure 10
( Figure 6-7 )
Baffle
Figure 7
Figure 9
Figure 11
DELUXX®
Ceiling hang installation
Each end of the screen casing needs to be supported by a hook (not provided). Ensure that the suspension system
(cable and/or hook) can support the weight of the screen.
1. To drill two same holes with an electric drill horizontally with wall, then fasten hangers (unprovided) onto the
ceiling. ( Figure 12 )
1
Figure 12
2. Use three M5x10mm screws to fasten the hanging brackets, to the wall and ceiling brackets as shown.
( Figure 13-14)
Figure 13
3. Attach the wall and ceiling brackets to the casing as shown in figures 15 and 16.
Figure 15
4. Place hooks through the hanging brackets to suspend the projection screen as shown. See figure 17.
Figure 17
2
Figure 14
Figure 16
DELUXX®
4
