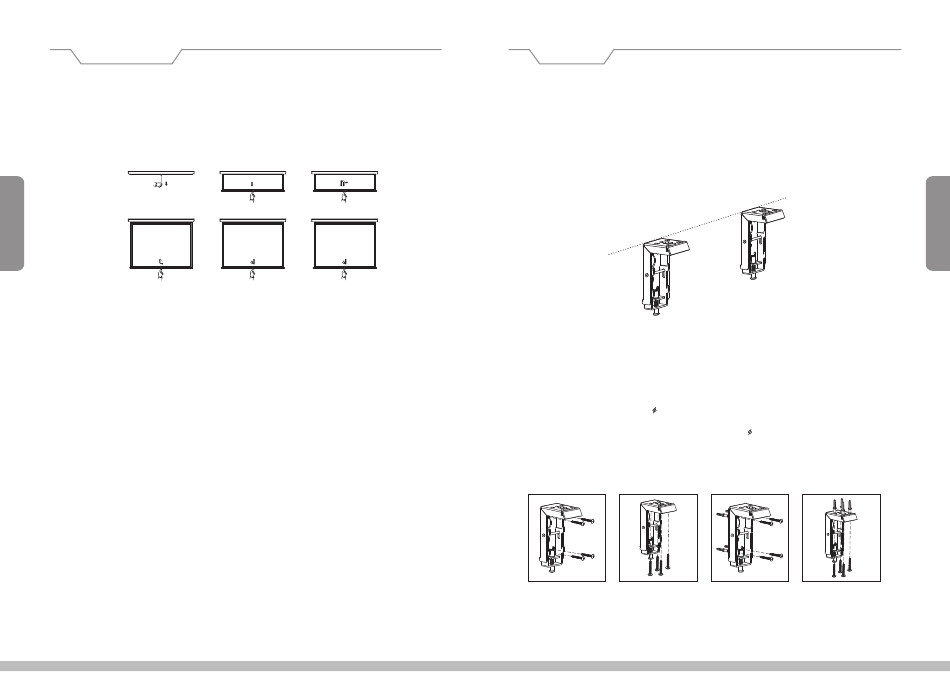

Operation
1. Use rope to pull down bottom rod until within hand reach distance.
2. Lower the screen by pulling down the handle. Once in position, hold for 3 seconds; the self locking mechanism
will lock the screen into position
3. Retract the screen by pulling down the handle and then let go of it. The screen will retract at the controlled
speed into the casing.
5
DELUXX®
Installation
Take out all the parts from the packaging to ensure you have all necessary components.
There are three installation measures for this product, namely wall mount, ceiling mount and ceiling hang. The
installed distance can be changeable up to your needs via adjusting the slipper block, while the ideal position is the
mounting bracket is at its nearest point to the end cap, which can reduce unnecessary vibration or noise.
Wall and ceiling installation:
1. Mount the wall/ceiling brackets using the appropriate screws for your supporting material.
2. Ensure the brackets are horizontal and near the ends of the casing. Fasten to the wall or ceiling, not both.
( Figure 1) .
Installation Steps
a) Wood supporting materials: Drill in the 5 x 40 screws through the appropriate holes in the bracket
( Figure 2-3 ).
b) Concrete supporting materials: Install the anchors and drill in the
bracket holes. ( Figure 4-5).
Wood ceiling installation
Wood wall installation
Figure 2 Figure 3
Figure 1
5 x 40 screws into the appropriate
Concrete ceiling installation
Concrete wall installation
Figure 4 Figure 5
