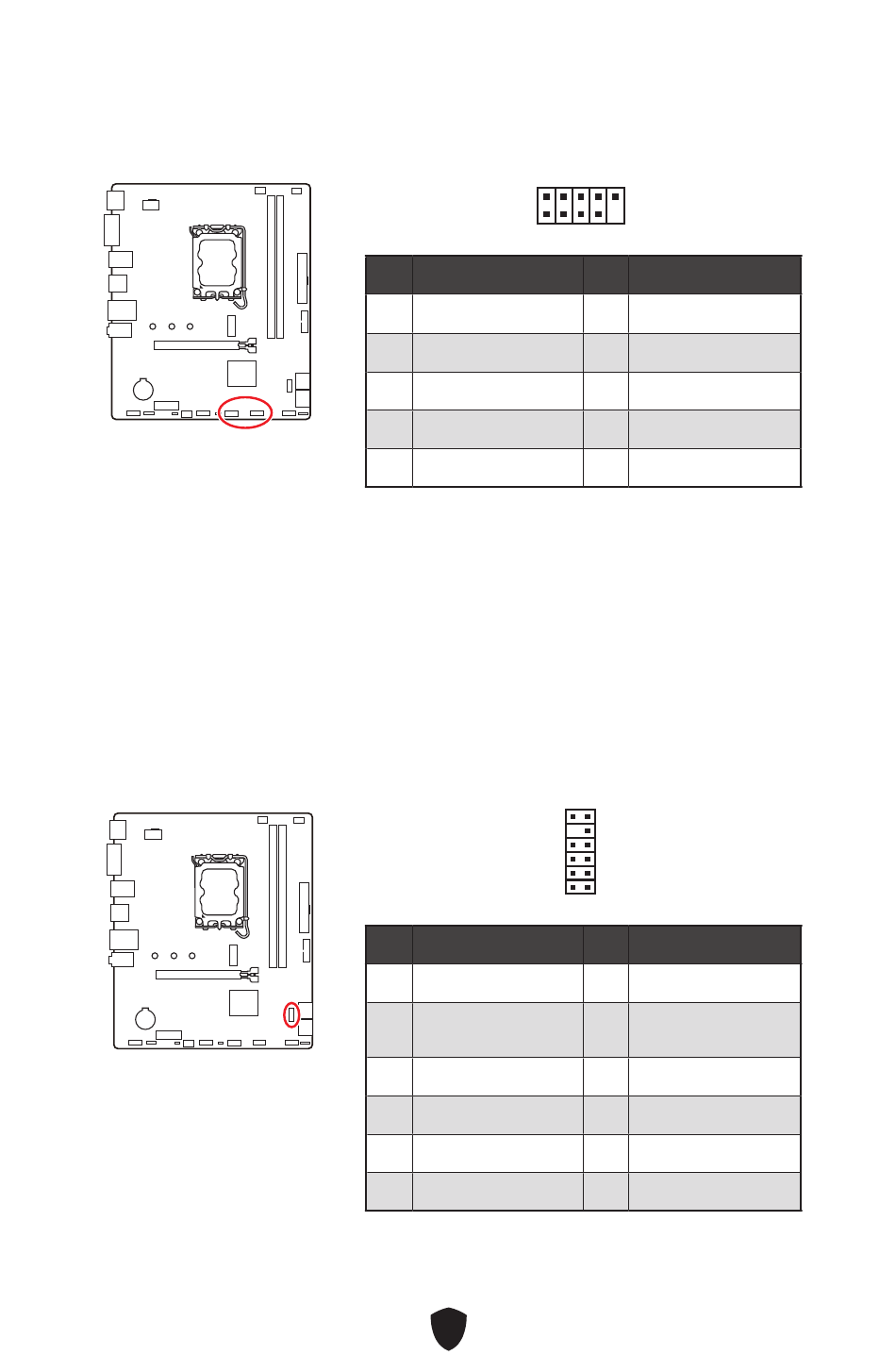

JUSB1 & JUSB3: USB 2.0 Connectors
These connectors allow you to connect USB 2.0 ports on the front panel.
Important
⚠
Note that the VCC and Ground pins must be connected correctly to avoid possible
●
damage.
In order to recharge your iPad, iPhone and iPod through USB ports, please install MSI
●
Center utility.
JTPM1: TPM Module Connector
This connector is for TPM (Trusted Platform Module). Please refer to the TPM security
platform manual for more details and usages.
2
1
Pin
Signal Name
1
VCC
3
USB0-
5
USB0+
7
Ground
9
No Pin
12
Pin
Signal Name
1
SPI Power
Master In Slave Out
3
(SPI Data)
5
Reserved
7
Ground
9
Reserved
11
Reserved
32
10
9
Pin
Signal Name
2
VCC
4
USB1-
6
USB1+
8
Ground
10
NC
11
2
1
Pin
Signal Name
2
SPI Chip Select
Master Out Slave In
4
(SPI Data)
6
SPI Clock
8
SPI Reset
10
No Pin
12
Interrupt Request
