Parts List - Intex Clw090 Bedienungsanleitung

6
7
8

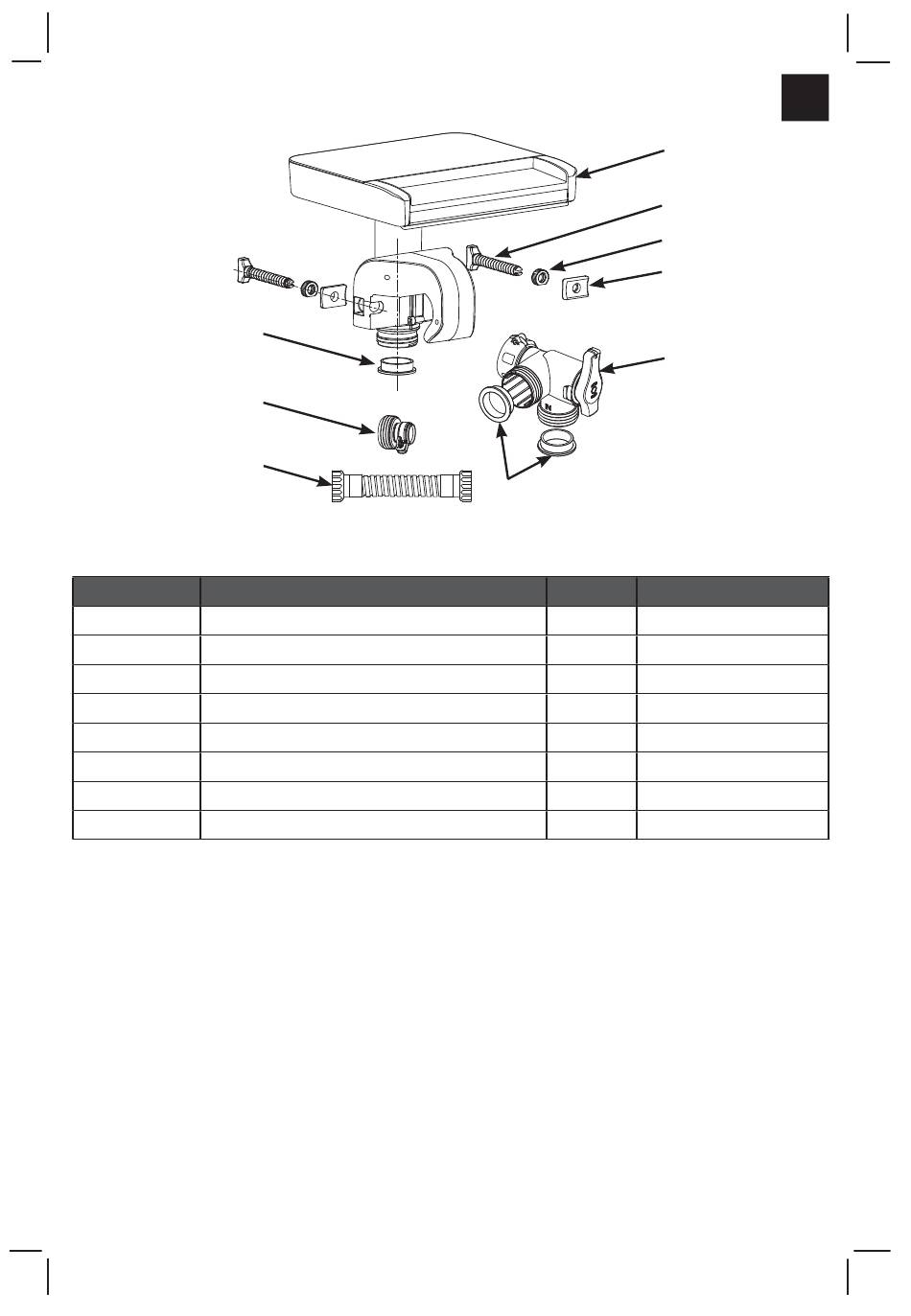

NOTE: Drawings for illustration purpose only. May not reflect actual product. Not
to scale.
REF. NO.
Waterfall set
1
Clamp screw
2
Clamp nut
3
Fixer
4
Bypass valve
5
L-shape O-ring
6
Adaptor B
7
Connecting hose
8
Due to a policy of continuous product improvement, Intex reserves the right to
change specifications and appearance, which may result in updates to the
instruction manual without notice.
Setup
1. Locate the pool water return inlet connection or plunger valve.
2. To maximize the performance of the waterfall, place the waterfall to the left
side and within reach of the water return inlet connection or plunger valve, as
there is less twisting of the bypass connecting hose (8).
3. Place the waterfall clamp over the frame pool horizontal top beam. Make sure
it is on the left side and within reach of the water return inlet connection or
plunger valve. Securely tighten the clamp screws by hand. See fig 1 - 3.
SAVE THESE INSTRUCTIONS
(335IO) LED WATERFALL ENGLISH SIZE: 4.875" X 7.25" 04/26/2023
