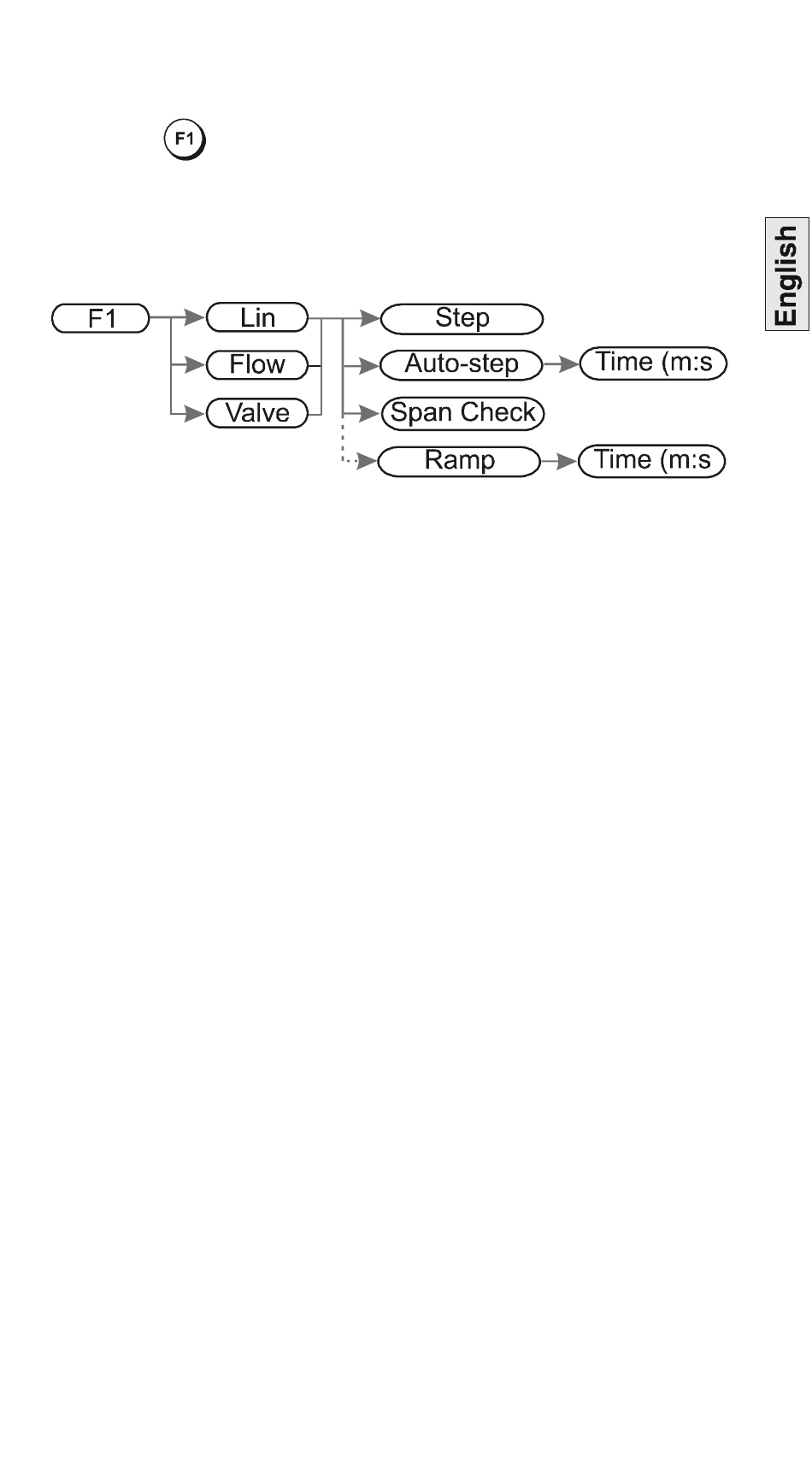

Advanced options in Source mode
Press the
Linear simulates linear transmitters.
Flow simulates flow transmitters.
Valve simulates valve control signals.
Note: Ramp function not available for Valve selection.
Step
Auto-step
Span Check Step between 4(or 0)mA and 20 mA.
Ramp
Maintenance
• Return the loop calibrator to the factory for any repairs, it
cannot be repaired on-site.
• To keep the loop calibrator accurate a calibration check
should be carried out once per year.
Cleaning
• Clean the loop calibrator case with a moist, lint-free
cloth and weak detergent.
key to enter advanced options:
25% steps for linear and flow - fixed values for
Valve.
The same as step with a timed step interval.
Automatic ramp between 4(or 0)mA and 20 mA.
7 K317 Issue No. 1
