and

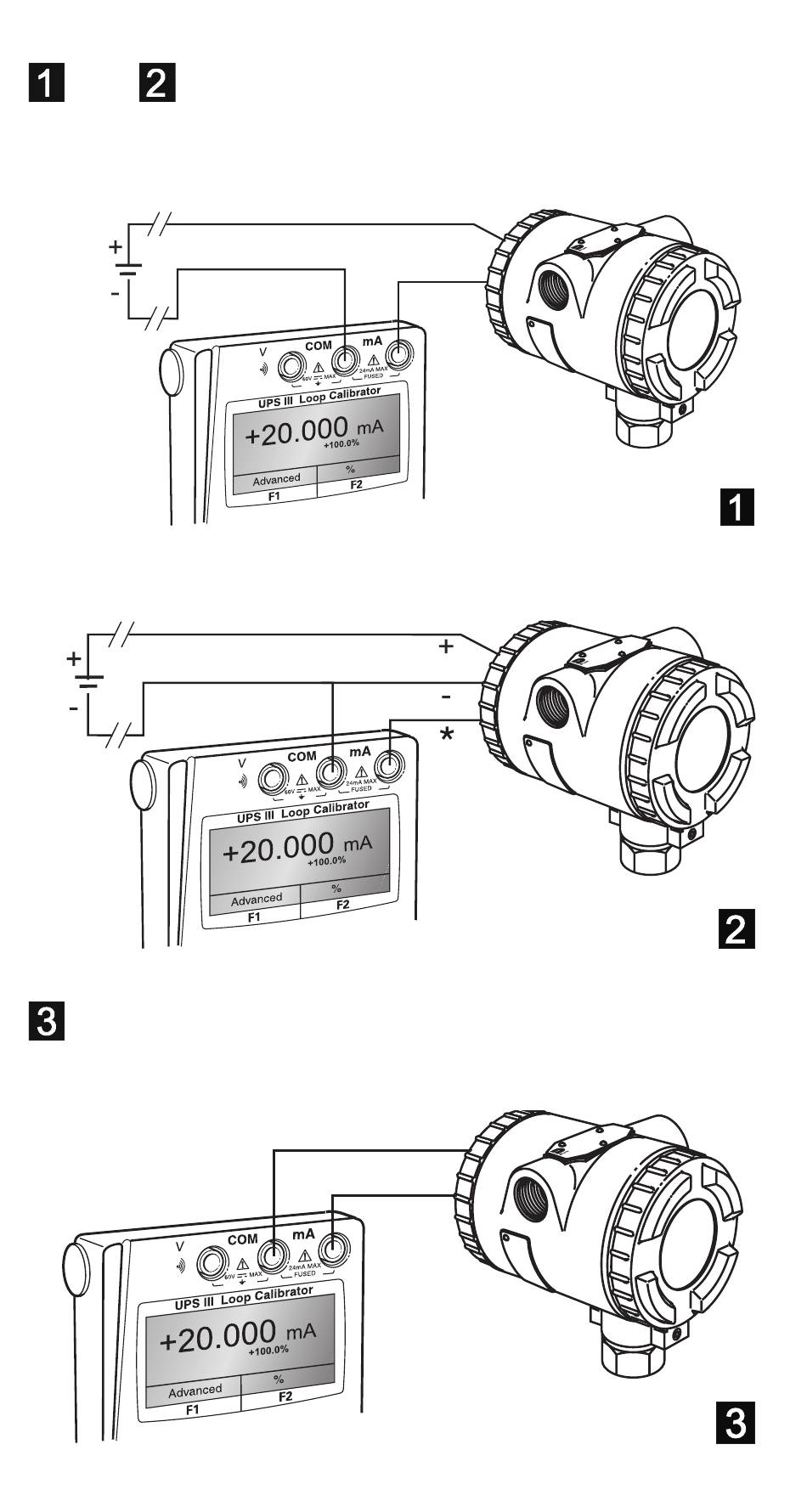

Press the mode key and select [Measure mA]. External
power supplies Vmax = 60 V for the loop. The calibrator
measures the current flow of the loop.
Closed loop current measurement from transmitter test
terminal
Measure mA with 24 V
Press mode key and select [Measure mA and 24V]. The
calibrator supplies 24 V for the loop, maximum 24 mA
K317 Issue No. 1
Measure mA
* test terminal
4
