Model Railway Control Unit

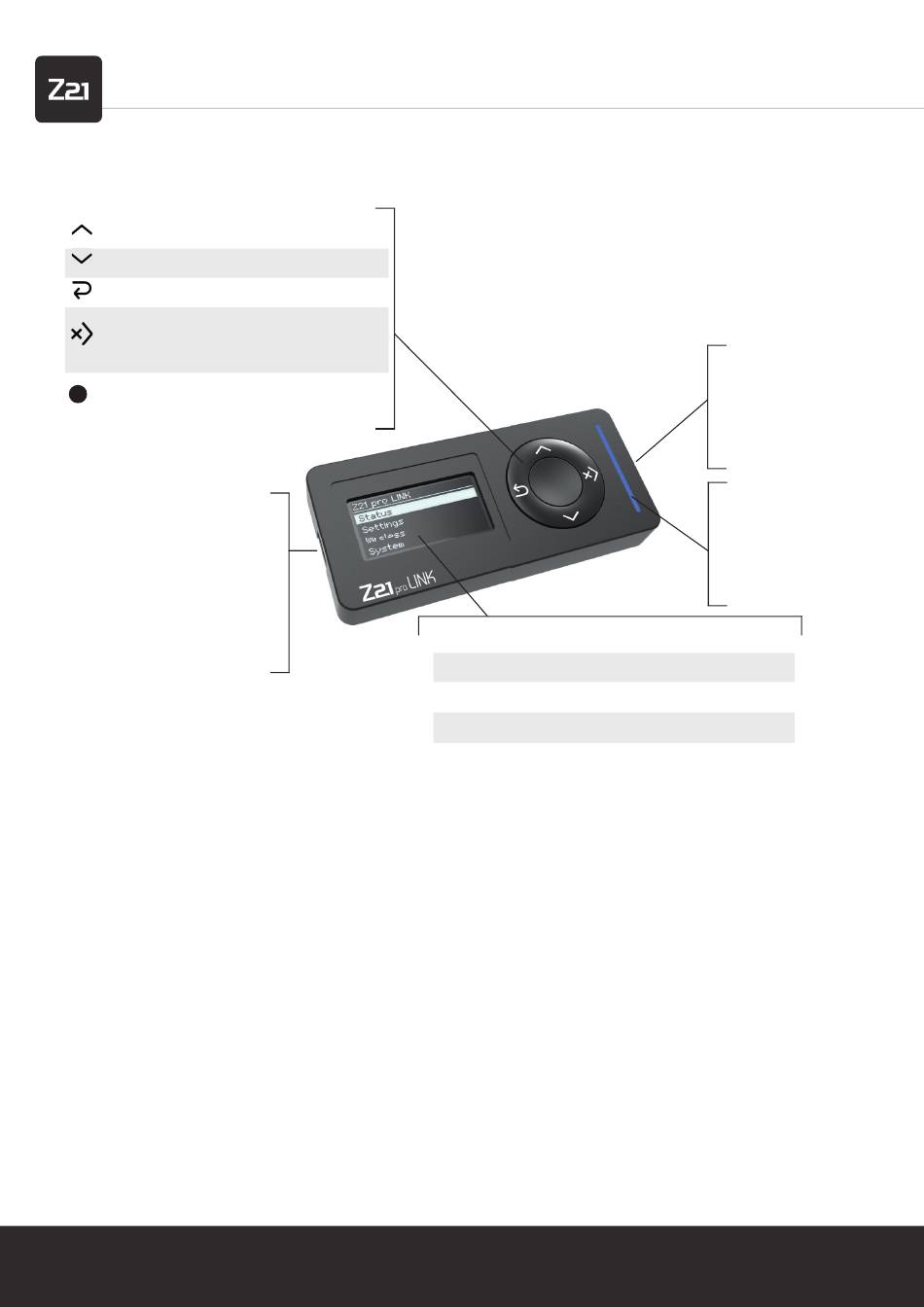

1. Quick guide / Overview

Scroll up
Scroll down
Back, cancel
Press briefl y: continue, next character
Press longer: Delete character
Stop: quick delete
Confi rm, select
Micro USB
Alternative supply voltage:
5 V, 1 A
The connected zLink-capable device
can also be supplied
(only if this does not have its own
supply).
USB power supply: 10859
To fi nd out how the Z21 pro LINK is connected with the WLAN, please see chapter: 4- „Establishing a WLAN connection"

2. Determination of use and function

The Z21 pro LINK has been developed for use on model railway systems with Z21 components featuring a zLink interface.
The range of application of the Z21 pro LINKs can basically be divided into 3 main functions:
18
Display
Live status of the zLink-capable device
Status
Settings of the zLink-capable device
Settings
WLAN settings of the Z21 pro LINK
Wireless
System settings of the Z21 pro LINK
System
zLink
Connection to your
zLink-capable device
and supply of the Z21
pro LINK
LED
Lights up when WLAN
connection active, and
fl ashes slowly
