Preparing your workspace
1. Before you begin, it is best to lay out all necessary tools.
Prefer to the required tools section for the list of necessary tools.
WARNING
Do NOT remove the safety wrap that holds the awning arms down.
Serious injury can result from removing the wrap too soon.
2.Open the awning box and unwrap each piece carefully to avoid damaging
the product.
3. Lay out each piece of the awning to ensure that all pieces are present.
Refer to the parts diagram for detailed information regarding parts.
4.Open the small, inner box that contains the small parts and lay them out
as well.
Assembly:

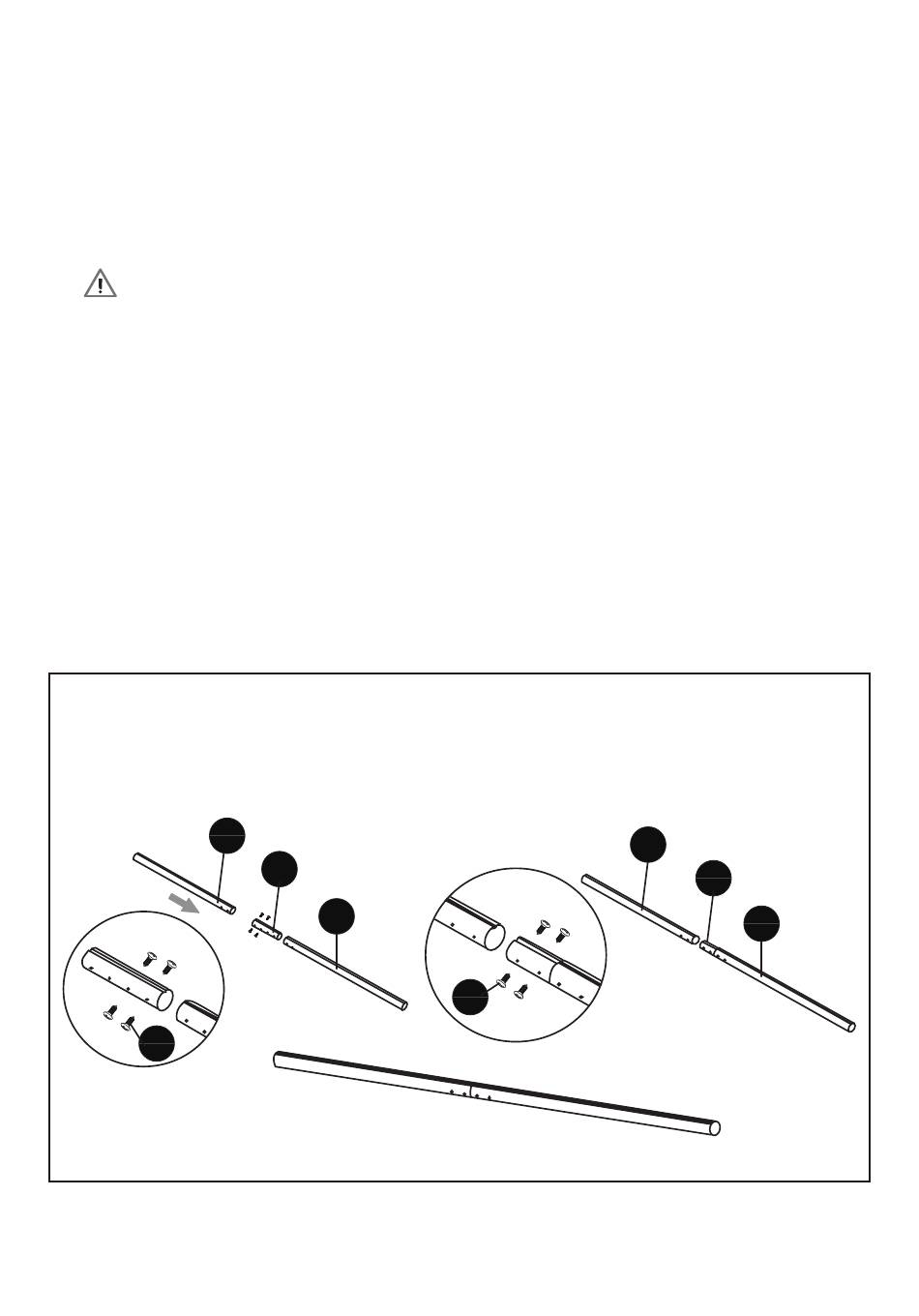

Step 1: Roller assembly
Keep the rollers aligned, assemble the roller with the connectors and secure
it with the corresponding bolts as shown in the figures below:
