STEP4
Mounting the Wall Brackets
1. Now that the bolts are securely installed on the wall, remove the nuts that are
loosely placed over the bolts.
2.Place a wall bracket onto one set of bolts. This should be an easy fit if the bolt
holes are properly aligned.

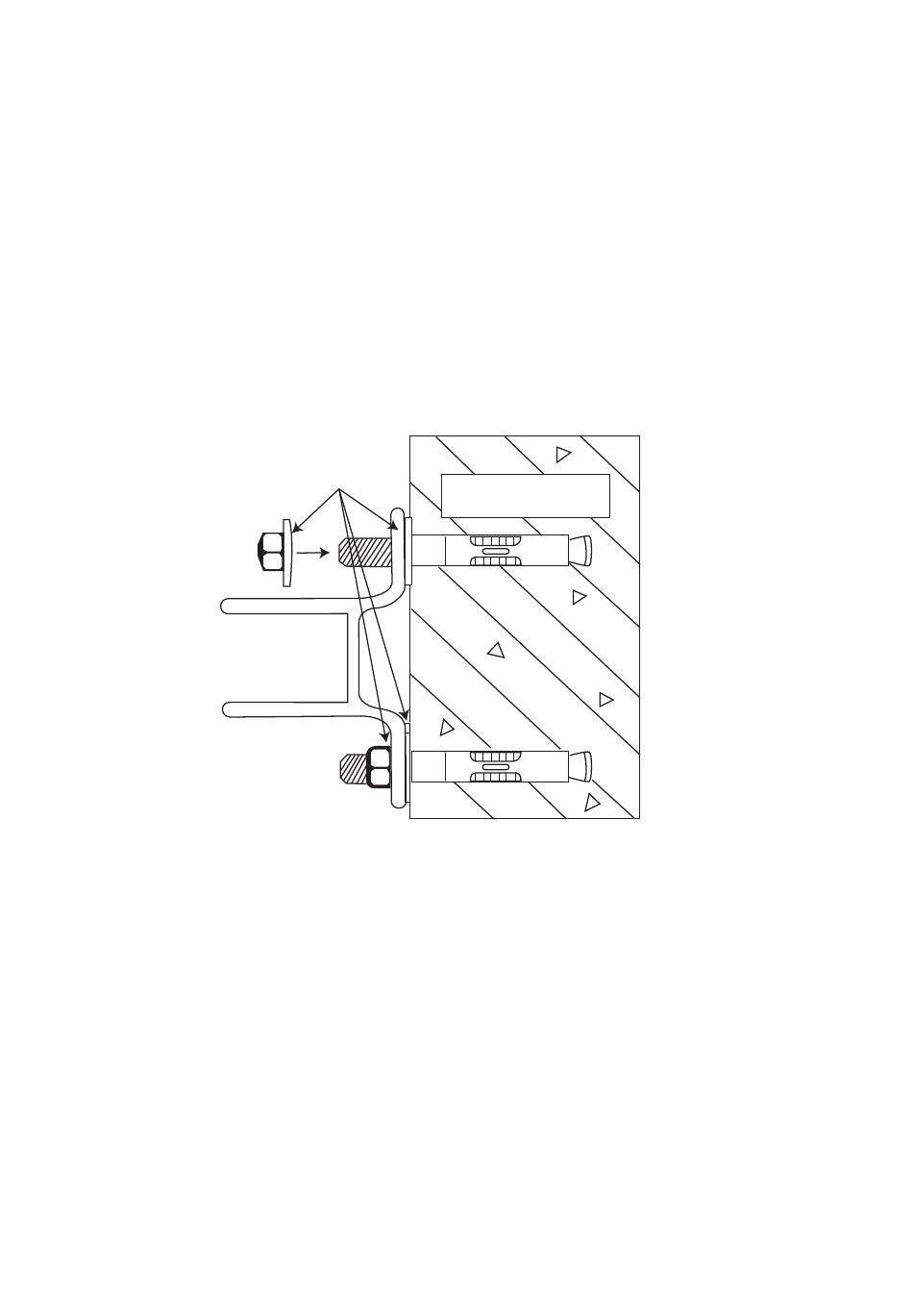

3. Once the wall bracket is resting on the bolts, place a washer over the bolt.
Then secure it with a nut, as shown in the figure.
4.The brackets MUST sit firmly on the wall. If there is any movement, you must
tighten it more.
5. Repeat this step for each of the wall brackets. Once you do this, all wall brackets
will be securely installed in place.
Washer
CROSS SECTION
20
OF WALL
