OPTIONAL INSTALLATION

Adjusting the Awning

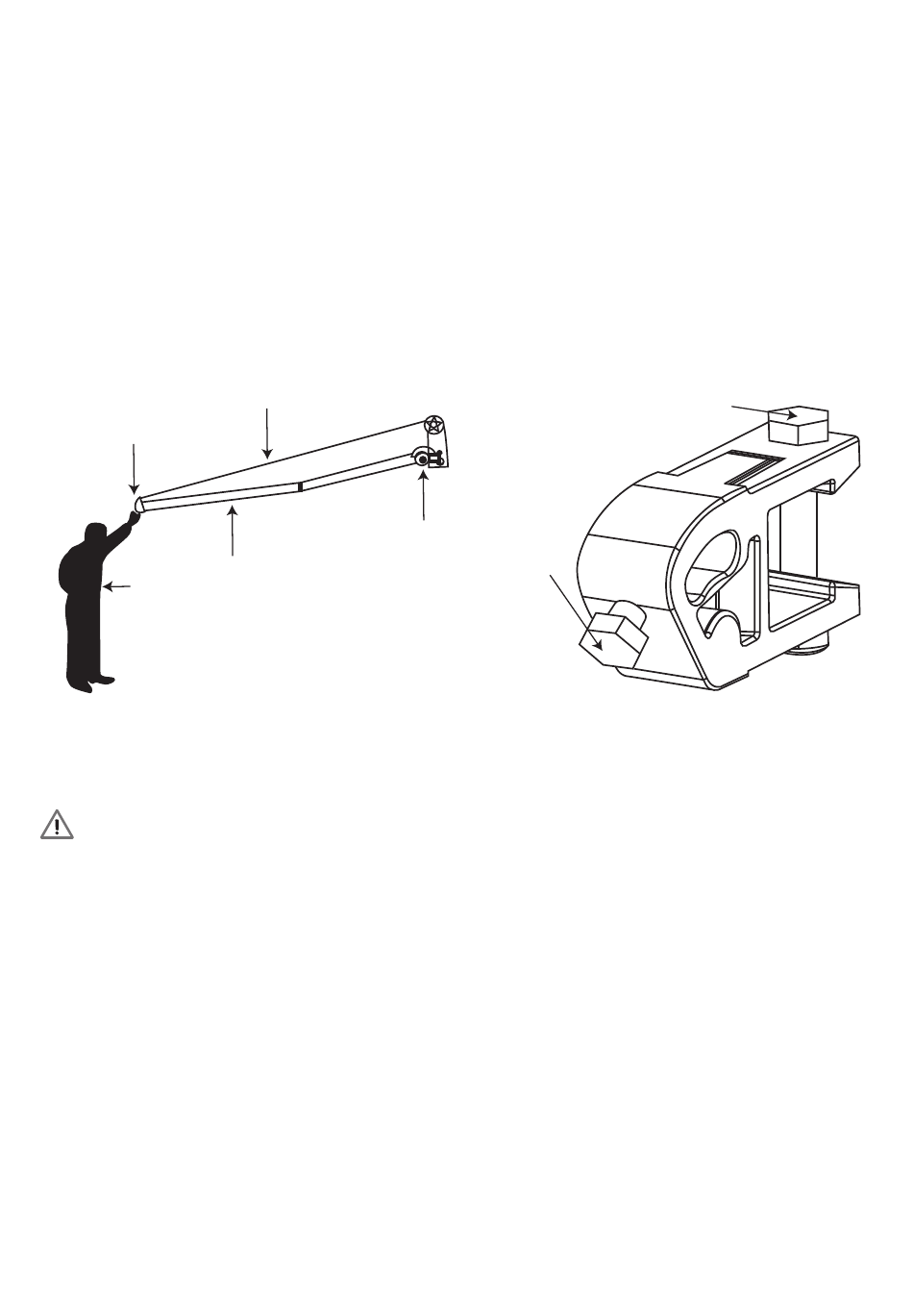

Each awning comes with a pre-set angle that is considered ideal. However, if you
need to make an adjustment, it can be done in just a few easy steps.
Front
Bar
Helper
WARNING
Raising the front bar will reduce the angle of the fabric, thus increasing the risk of
rainwater pooling on the fabric. To prevent the awning from collapsing due to
rainwater weight, you must retract the awning when unattended. Failure to do so
could result in a broken awning or personal injury.
Note: Be sure that the front bar is adjusted to be completely even.
Any misalignment will result in improper retraction.
Awning
Fabric
Lateral
(see detailed view)
Arm
Loosen
Arm
to adjust
Clamp
Jack Bolt
22
Tighten
