ENGLISH

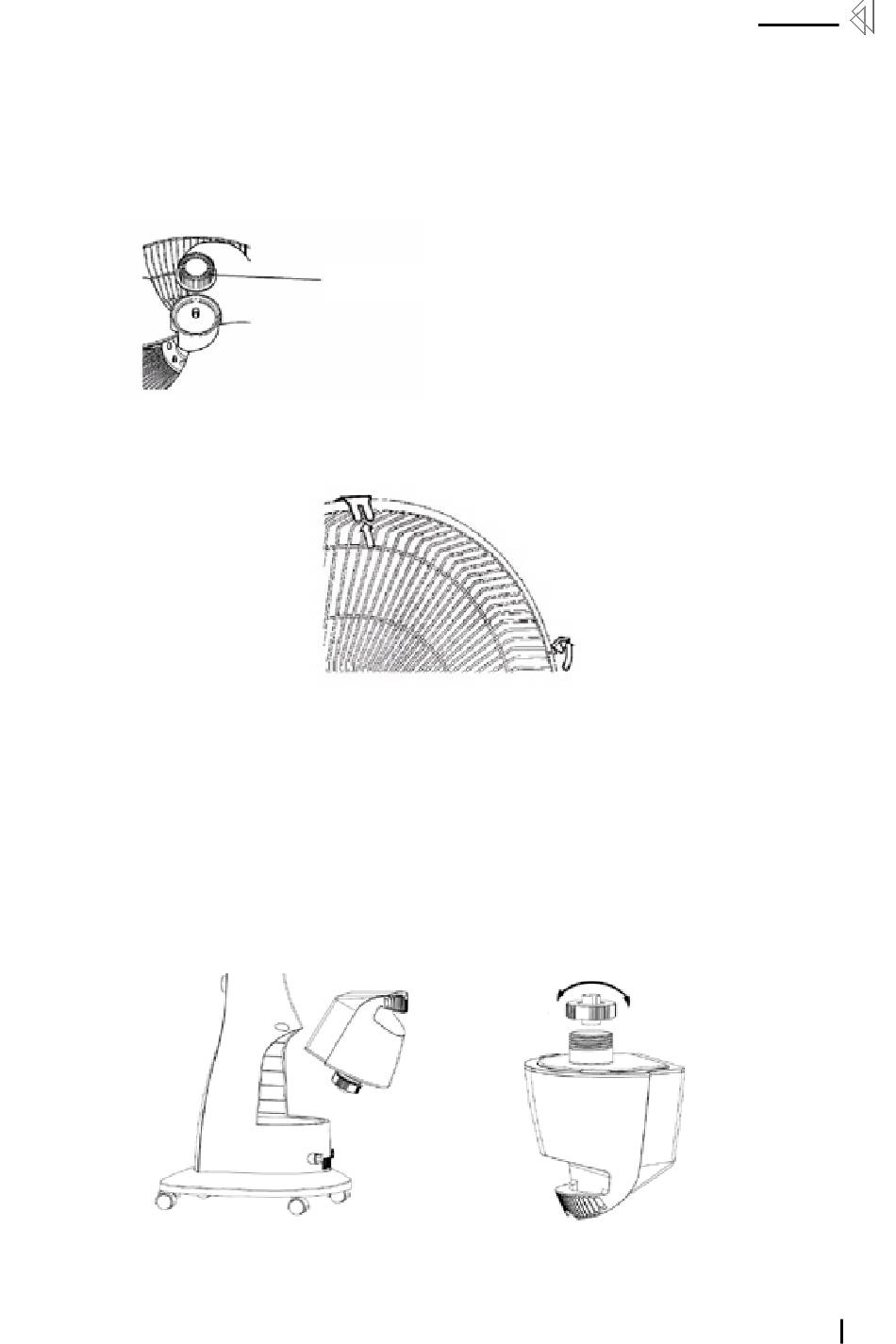

The groove in the centre of the fan blade aligns with a T-bar on the motor shaft to ensure it is
installed correctly.
Fix the blades by screwing the fixing element anti-clockwise at the end of the motor's shaft.
The spinner is self-tightening; do not force it.
Tighten the fixing element anti-clockwise.
Open all the locking clips on the front safety grid.
WATER TANK ASSEMBLY
HUMIDIFIER
Take out water tank first, and then take out body valve's cover from water tank. Put the water
in the tank and tighten the body valve's cover. Place the tank inside the mist fan's main body.
Make sure the water temperature does not exceed 40 ºC.
Main body cover
Body valve cover
Loosen
Tighten
FORCESILENCIE 590 FRESHESSENCE
17
