Installer Adjustments
Maximum volume setting
To restrict the maximum volume level of the E50, adjust the preset screw (labelled
below) with a small flat blade screw driver. Turning anti-clockwise will reduce the
maximum volume level and turning clockwise will increase it. The maximum output
level of the speakers will be altered accordingly but the range of volume indication on
the front of the unit will not be affected.
Mono/Stereo setting
To set the amplifier output to mono, use a ball point pen or small screw driver to move
the DIP switch #1 (labelled below) to the ON position. The default position for this
switch is OFF (stereo).
EQ adjustment
To adjust the EQ to a flat response, use a ball point pen or small screw driver to move
the DIP switch #2 to the ON position. The default position for this switch is OFF (treble
and bass boost for Qi 65CB speakers).

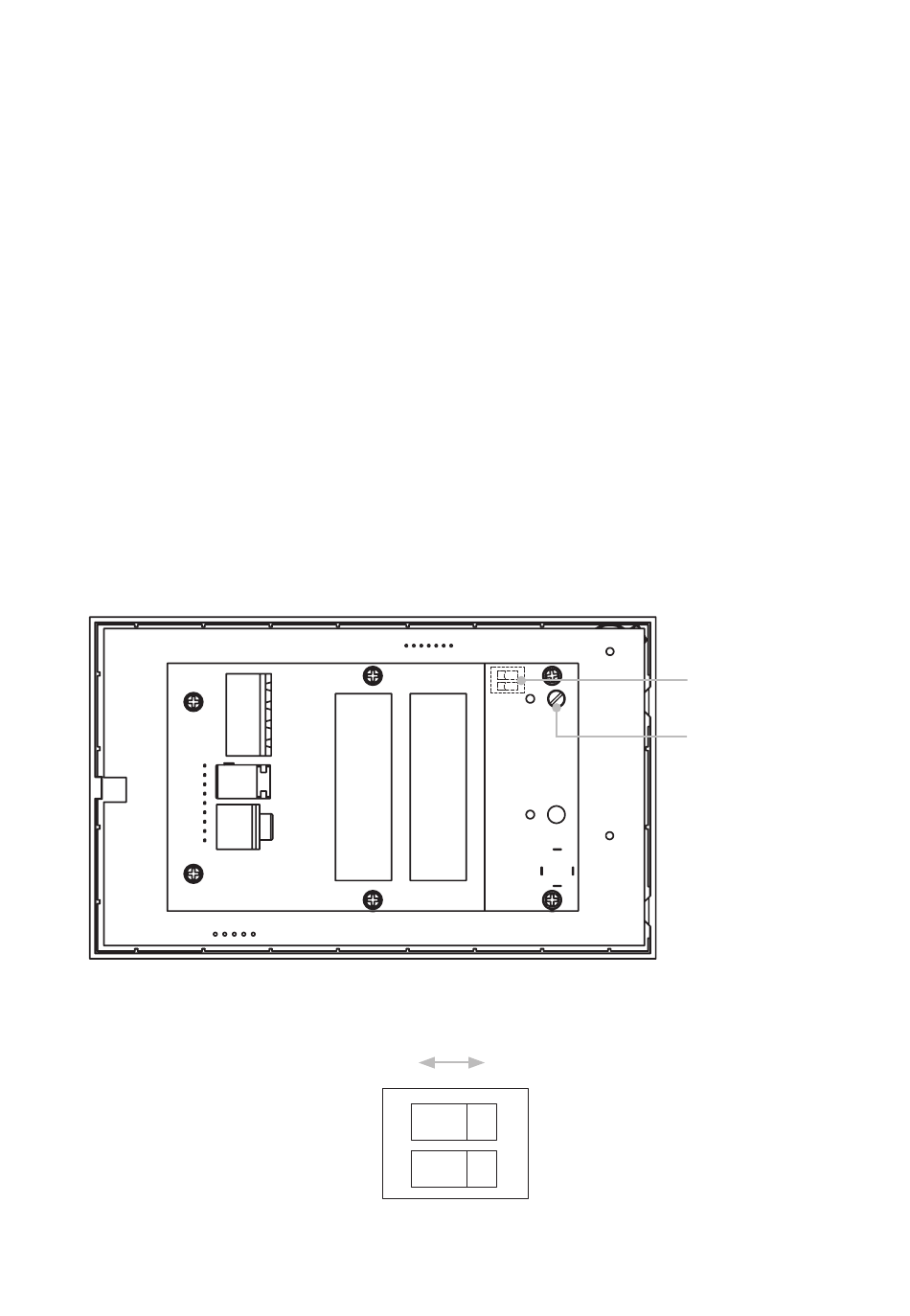

Rear panel controls for installer adjustments
ON
Flat EQ
Mono
DIP switch detailed view
OFF
Treble and
2
bass boost
1
Stereo
11
DIP switch (under)
Volume adjustment
screw (through hole)
