Removing and Installing the Optical Drive From
the Media Base
1 Undock the media base (see "Undocking Your Tablet-PC From the Media
Base" on page 8).
2 Save and close any open files or programs, and turn off the Tablet-PC.

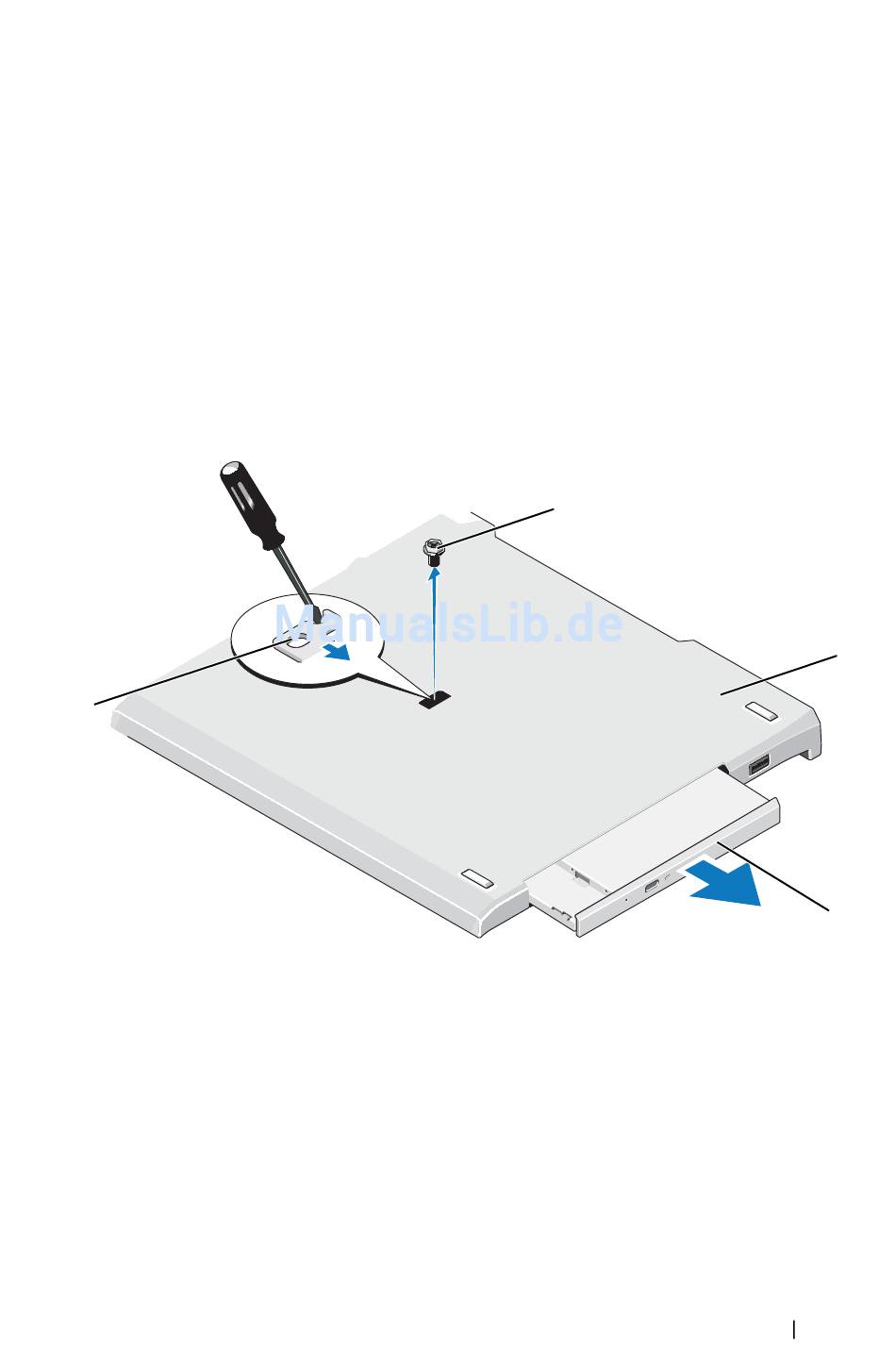

3 To remove the optical drive:
Remove the screw that secures the optical drive to the media base.
a
Use your screwdriver to slide the drive out of the media bay.
b
4
1 screw
3 optical drive
4 To install the optical drive:
Insert the optical drive into the media bay on the media base.
a
Insert the securing screw that holds the optical drive in place.
b
5 Turn on the Tablet-PC.
The operating system automatically recognizes the new drive.
1
2 media base
4 screw hole
Media Base
2
3
9
