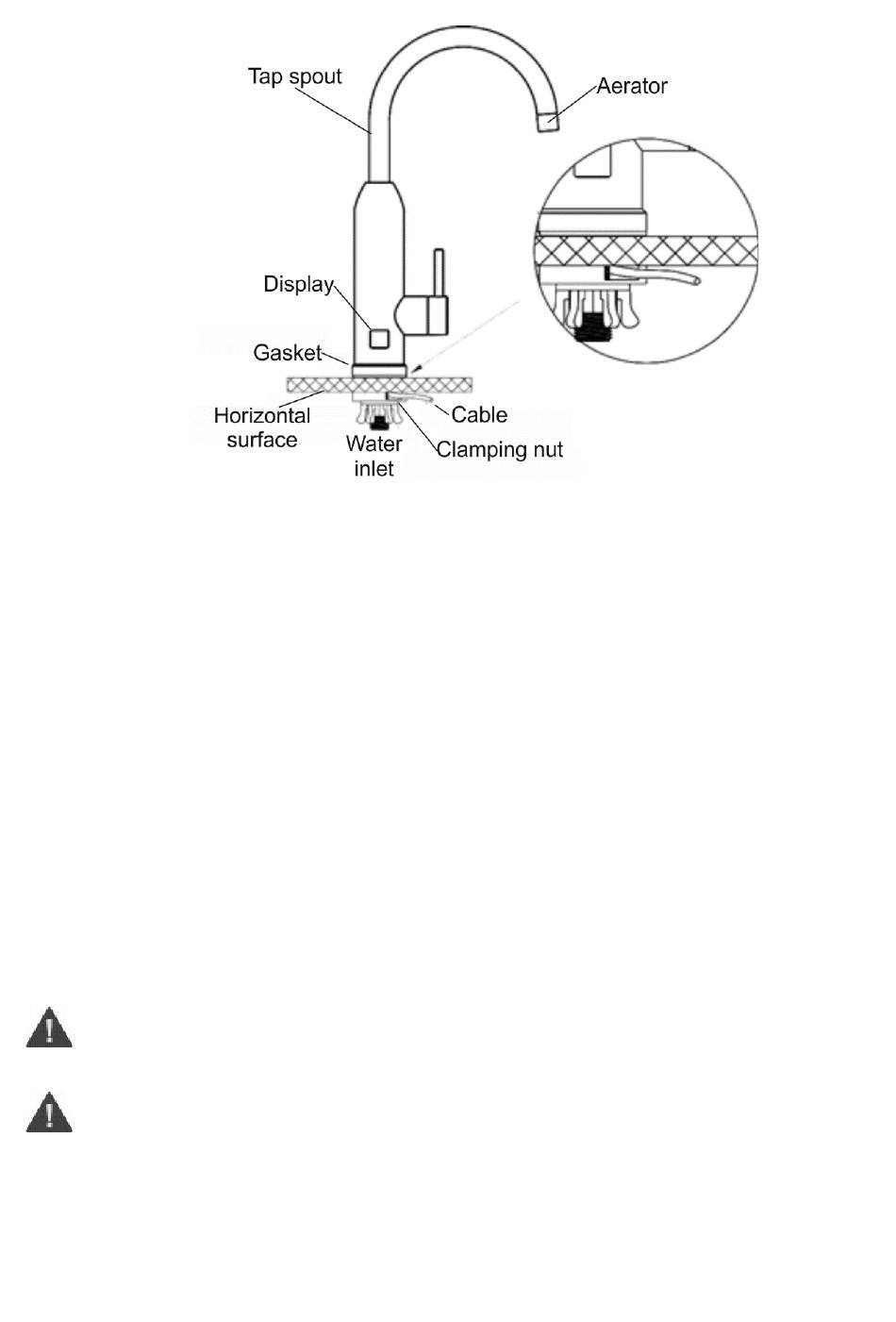

Fig. 2. Installation with the output of the power cable under the sink
1. Remove the appliance body, spout and shower kit from the box. Attach the spout
to the adapter mounted on the mixer housing by pulling the spout nut.
2. Install the IEWH on the sink in accordance with the selected installation option,
following the scheme from Figure 1 or Figure 2.
3. Pre-cut off the cold water supply in the water supply system.
4. Connect the cold water inlet pipe of the IEWH to the cold water supply pipe using
a flexible plumbing (not included in the package).
5. After connecting, supply water to the IEWH, wait for water to flow out of the spout,
stop the water supply. Check the density of all connections.
6. Before connecting to the power supply, de-energize the network to which the
device is connected. It's recommended to use RCD or ELCB with grounding (need
to buy separately and not in scope of supply) for this device. RCD or ELCB need
to be integrated into device cable.
7. Connect the RCD or ELCB to the IEWH cable. To do this, remove the cover of the
RCD or ELCB. Next, connect the IEWH supply cable to the RCD terminal block
according to the scheme: L (brown) – "phase"; N (blue) – "zero"; E or
(yellow/green) – "grounding".
8. Turn on the IEWH to the network.
It is necessary to supply cold water to the IEWH using a water pretreatment
filter with a degree of purification of at least 200 microns.
It is forbidden to install any shut-off valves, valves at the outlet of the water
from the IEWH, or to attach additional mixers, shower watering cans,
dividers to the outflow of the IEWH.
