SETUP INSTRUCTIONS (continued)
Connecting the system to other types of pump (with different type of thread or no
thread):
The Saltwater System can also be adapted to other filter pumps with different thread or those
without a thread on the connection.

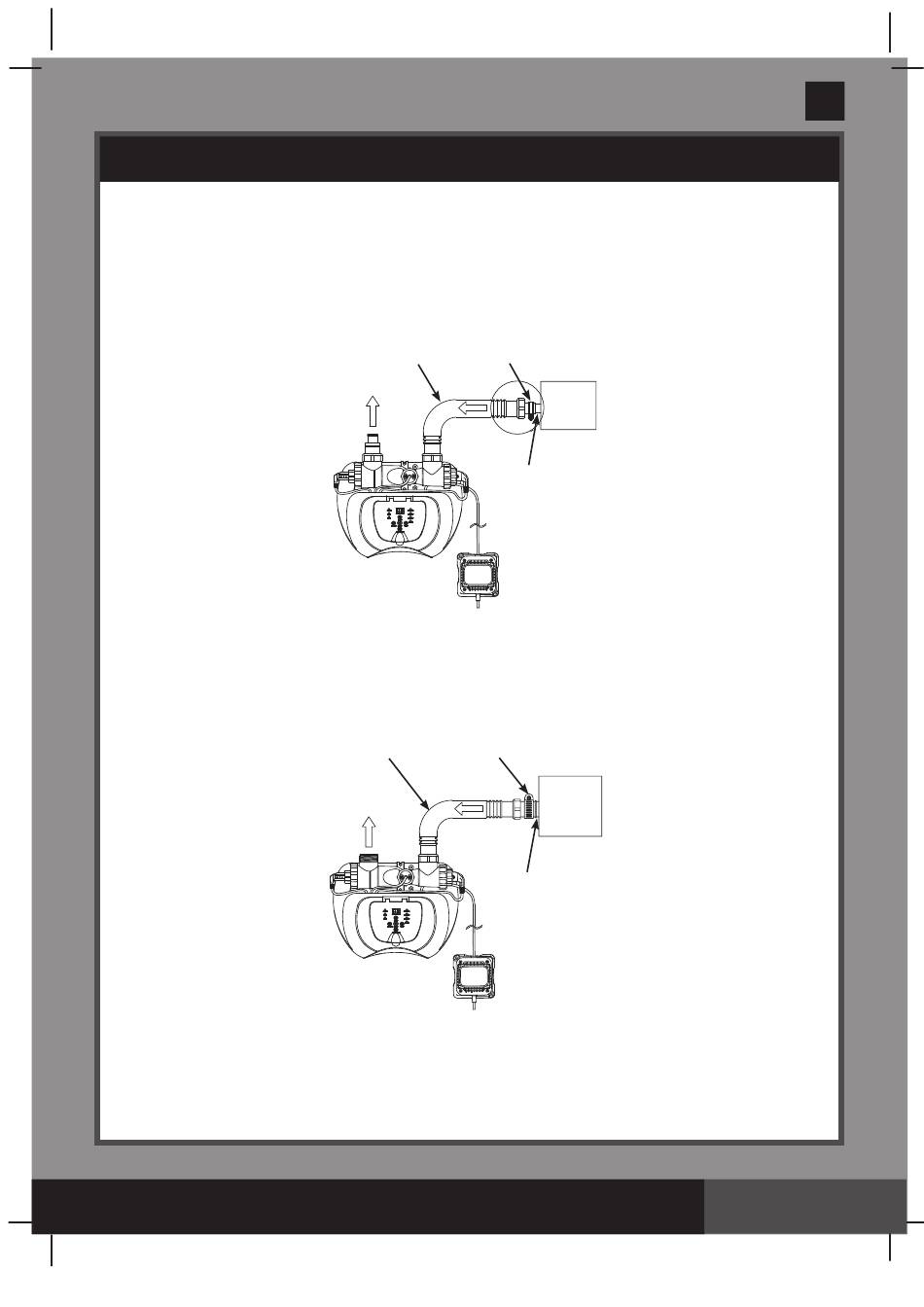

Connection to 1-1/4" (32mm) hose:
1. Connect one end of adaptor B (8) to the connector hose (7). Tighten securely.
2. Now, connect the other end of adaptor B (8) to the filter pump outlet. Tighten securely.
Connection to 1-1/2" (38mm) hose with clamp:
1. Connect the connector hose (7) to the filter pump outlet connection with a large hose clamp.
Tighten securely.
SAVE THESE INSTRUCTIONS
