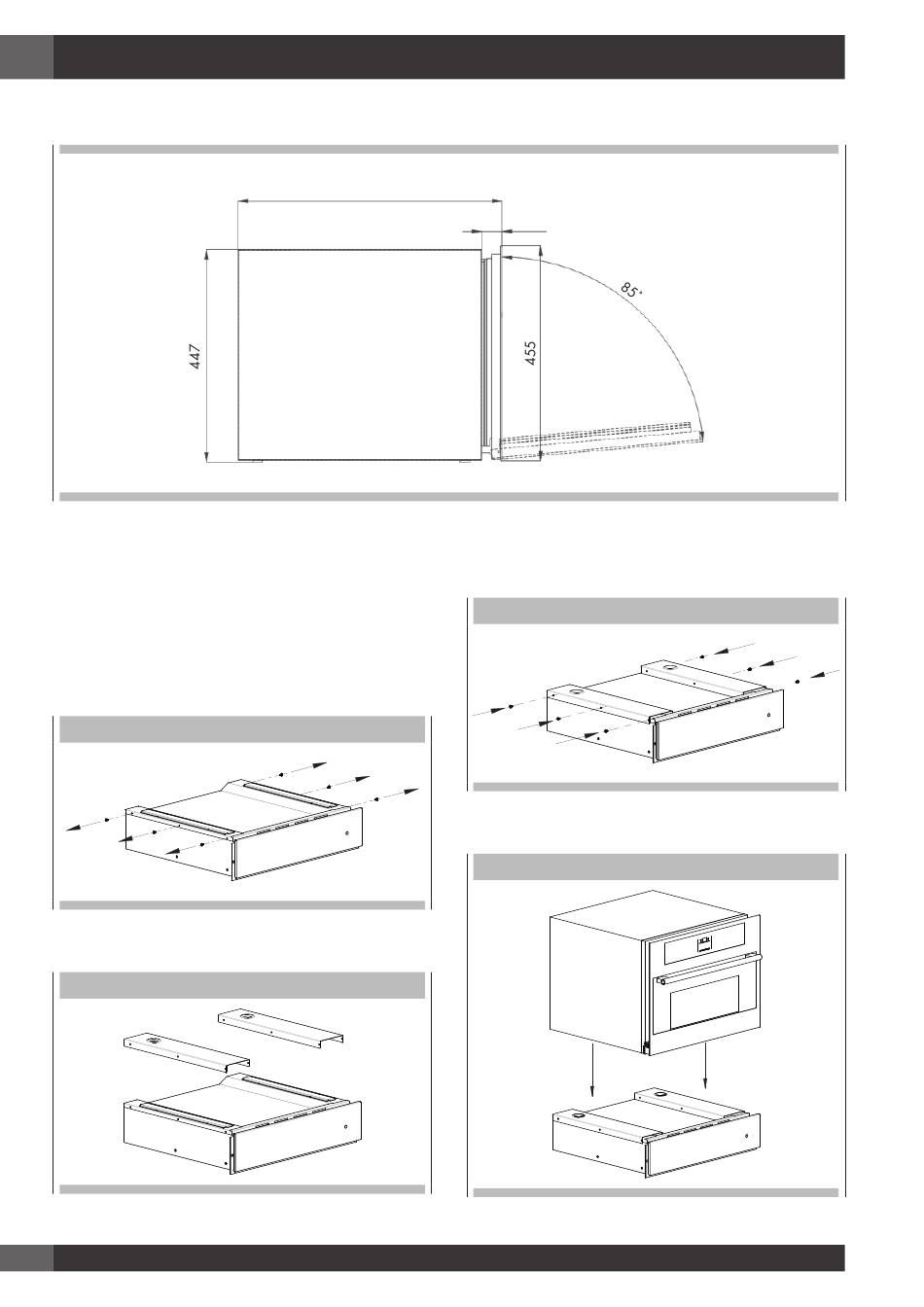

OPEN ANGLE SIZE DRAWINGS:
INSTALLING THE WINE CELLAR WITH
WARMING DRAWER
To install the wine cellar above the 145 mm warming
drawer, it is necessary to install the brackets supplied with
the wine cellar between the two products.
To install, unscrew the 6 screws indicated in figure 1, in the
top part of the drawer.
Place the supplied brackets on the drawer's top cover.
6
555
FIG. 1
FIG. 2
43
Tighten the 6 previously removed screws, in order to secure
the brackets to the drawer.
FIG. 3
Place the wine cellar on top of the drawer.
FIG. 4
