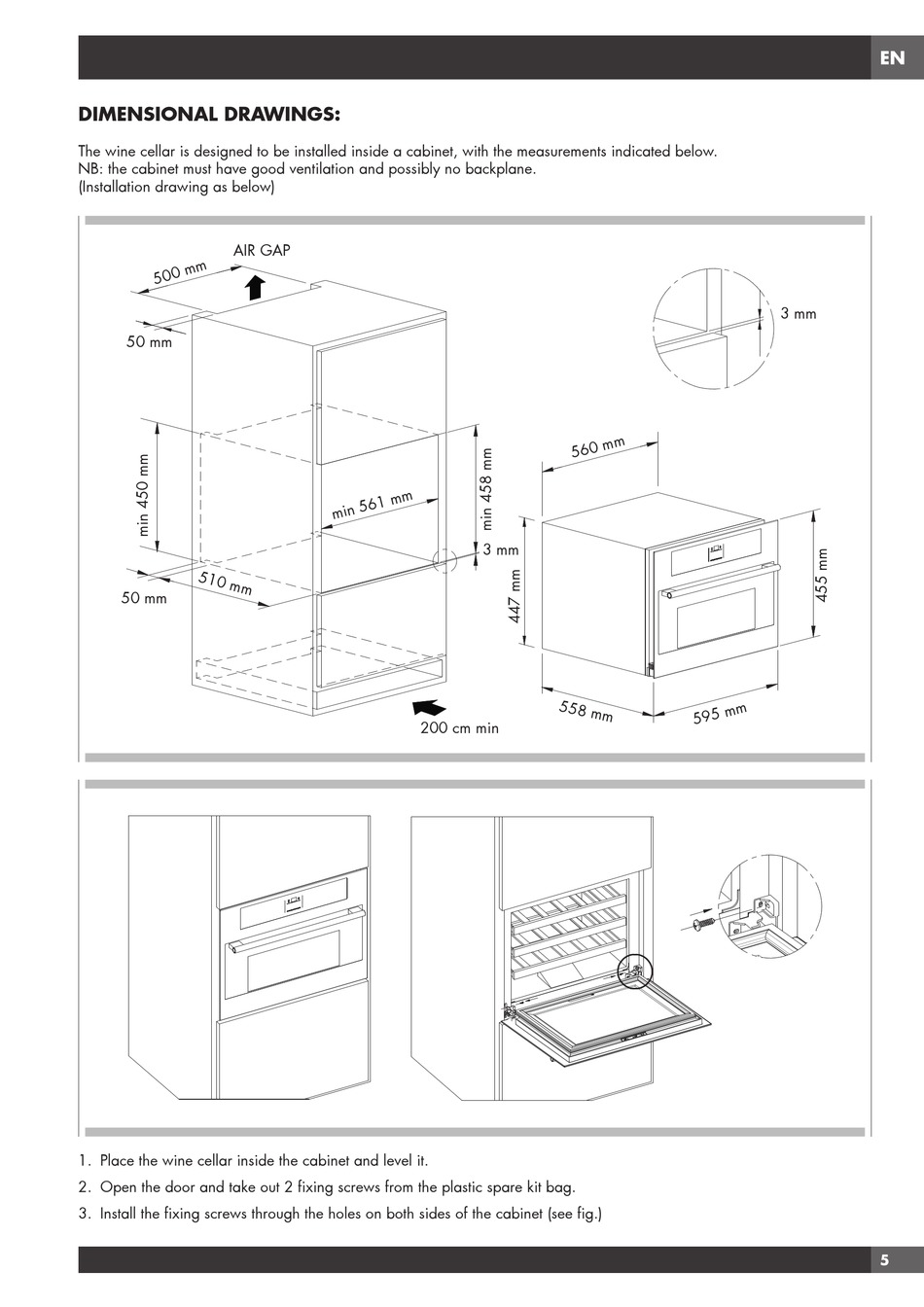

DIMENSIONAL DRAWINGS:
The wine cellar is designed to be installed inside a cabinet, with the measurements indicated below.
NB: the cabinet must have good ventilation and possibly no backplane.
(Installation drawing as below)
AIR GAP
50 mm
50 mm
1. Place the wine cellar inside the cabinet and level it.
2. Open the door and take out 2 fixing screws from the plastic spare kit bag.
3. Install the fixing screws through the holes on both sides of the cabinet (see fig.)
3 mm
200 cm²min
