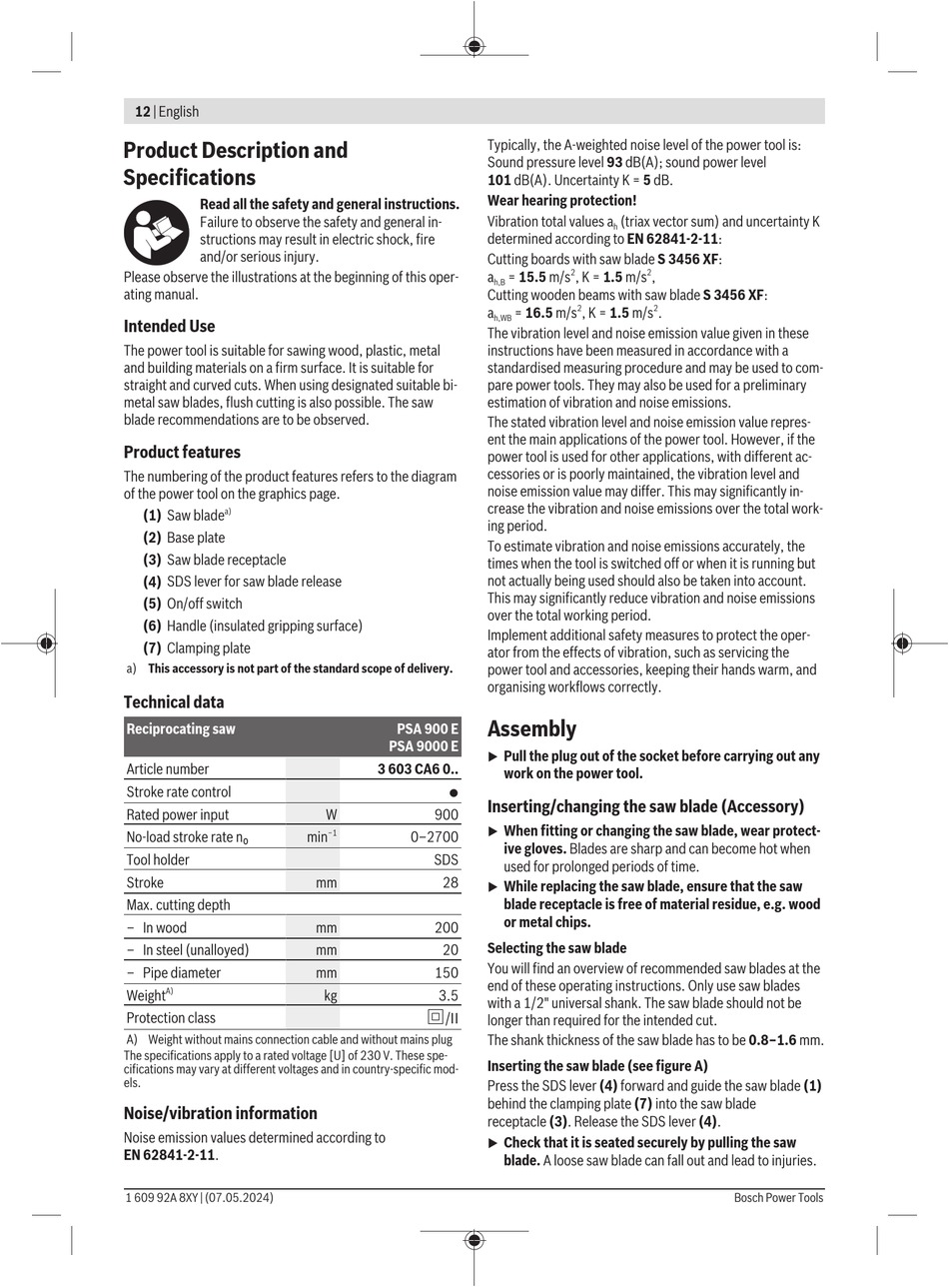

12 | English
Product Description and
Specifications
Read all the safety and general instructions.
Failure to observe the safety and general in-
structions may result in electric shock, fire
and/or serious injury.
Please observe the illustrations at the beginning of this oper-
ating manual.
Intended Use
The power tool is suitable for sawing wood, plastic, metal
and building materials on a firm surface. It is suitable for
straight and curved cuts. When using designated suitable bi-
metal saw blades, flush cutting is also possible. The saw
blade recommendations are to be observed.
Product features
The numbering of the product features refers to the diagram
of the power tool on the graphics page.
a)
(1) Saw blade
(2) Base plate
(3) Saw blade receptacle
(4) SDS lever for saw blade release
(5) On/off switch
(6) Handle (insulated gripping surface)
(7) Clamping plate
a) This accessory is not part of the standard scope of delivery.
Technical data
Reciprocating saw
Article number
Stroke rate control
Rated power input
No-load stroke rate n₀
Tool holder
Stroke
Max. cutting depth
– In wood
– In steel (unalloyed)
– Pipe diameter
A)
Weight
Protection class
A) Weight without mains connection cable and without mains plug
The specifications apply to a rated voltage [U] of 230 V. These spe-
cifications may vary at different voltages and in country-specific mod-
els.
Noise/vibration information
Noise emission values determined according to
EN 62841‑2‑11.
1 609 92A 8XY | (07.05.2024)
PSA 900 E
PSA 9000 E
3 603 CA6 0..
●
W 900
−1
min 0–2700
SDS
mm 28
mm 200
mm 20
mm 150
kg 3.5
/Ⅱ
Typically, the A-weighted noise level of the power tool is:
Sound pressure level 93 dB(A); sound power level
101 dB(A). Uncertainty K = 5 dB.
Wear hearing protection!
Vibration total values a (triax vector sum) and uncertainty K
h
determined according to EN 62841‑2‑11:
Cutting boards with saw blade S 3456 XF:
2 2
a = 15.5 m/s , K = 1.5 m/s ,
h,B
Cutting wooden beams with saw blade S 3456 XF:
2 2
a = 16.5 m/s , K = 1.5 m/s .
h,WB
The vibration level and noise emission value given in these
instructions have been measured in accordance with a
standardised measuring procedure and may be used to com-
pare power tools. They may also be used for a preliminary
estimation of vibration and noise emissions.
The stated vibration level and noise emission value repres-
ent the main applications of the power tool. However, if the
power tool is used for other applications, with different ac-
cessories or is poorly maintained, the vibration level and
noise emission value may differ. This may significantly in-
crease the vibration and noise emissions over the total work-
ing period.
To estimate vibration and noise emissions accurately, the
times when the tool is switched off or when it is running but
not actually being used should also be taken into account.
This may significantly reduce vibration and noise emissions
over the total working period.
Implement additional safety measures to protect the oper-
ator from the effects of vibration, such as servicing the
power tool and accessories, keeping their hands warm, and
organising workflows correctly.
Assembly
Pull the plug out of the socket before carrying out any
u
work on the power tool.
Inserting/changing the saw blade (Accessory)
When fitting or changing the saw blade, wear protect-
u
ive gloves. Blades are sharp and can become hot when
used for prolonged periods of time.
While replacing the saw blade, ensure that the saw
u
blade receptacle is free of material residue, e.g. wood
or metal chips.
Selecting the saw blade
You will find an overview of recommended saw blades at the
end of these operating instructions. Only use saw blades
with a 1/2" universal shank. The saw blade should not be
longer than required for the intended cut.
The shank thickness of the saw blade has to be 0.8–1.6 mm.
Inserting the saw blade (see figure A)
Press the SDS lever (4) forward and guide the saw blade (1)
behind the clamping plate (7) into the saw blade
receptacle (3). Release the SDS lever (4).
Check that it is seated securely by pulling the saw
u
blade. A loose saw blade can fall out and lead to injuries.
