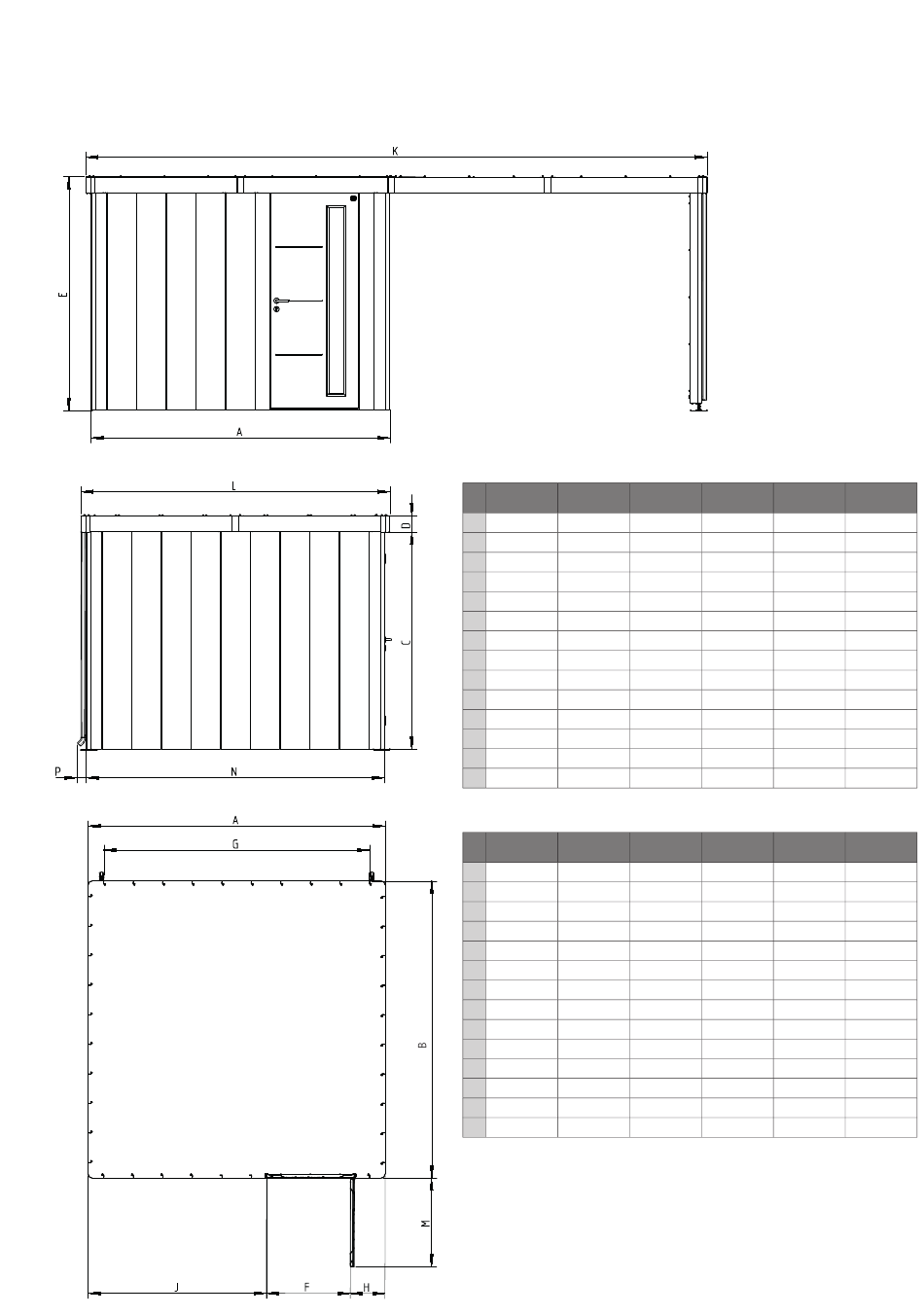

Abmessungen Gerätehaus „NEO" und Seitendach
Dimensions garden shed "NEO" and side canopy
Dimensions des abri de jardin "NEO" et de l'auvent
58
NEO NEO
2A 2B
A
1700 mm 2260 mm
B
2260 mm 2260 mm
C
2050 mm 2050 mm
D 155 mm 155 mm
E
2205 mm 2205 mm
F
800 mm 800 mm
G
1395 mm 1955 mm
H
330 mm 330 mm
J
570 mm 1130 mm
K
4748 mm 5308 mm
L
2355 mm 2355 mm
M
840 mm 840 mm
N
2260 mm 2260 mm
P
80 mm 80 mm
NEO NEO
3C 3D
A
2820 mm 3380 mm
B
2820 mm 2820 mm
C
2050 mm 2050 mm
D
155 mm 155 mm
E
2205 mm 2205 mm
F
800 mm 800 mm
G
2515 mm 3075 mm
H
330 mm 330 mm
J 1690 mm 2250 mm
K
5868 mm 6428 mm
L
2915 mm 2915 mm
M
840 mm 840 mm
N
2820 mm 2820 mm
P 80 mm 80 mm
NEO NEO NEO
2C 2D 3A
2820 mm 3380 mm 1700 mm
2260 mm 2260 mm 2820 mm
2050 mm 2050 mm 2050 mm
155 mm 155 mm 155 mm
2205 mm 2205 mm 2205 mm
800 mm 800 mm 800 mm
3075 mm 2515 mm 1395 mm
330 mm 330 mm 330 mm
1690 mm 2250 mm 570 mm
5868 mm 6428 mm 4748 mm
2355 mm 2355 mm 2915 mm
840 mm 840 mm 840 mm
2260 mm 2260 mm 2820 mm
80 mm 80 mm 80 mm
NEO NEO NEO
4A 4B 4C
1700 mm 2260 mm 2820 mm
3380 mm 3380 mm 3380 mm
2050 mm 2050 mm 2050 mm
155 mm 155 mm 155 mm
2205 mm 2205 mm 2205 mm
800 mm 800 mm 800 mm
1395 mm 1955 mm 2515 mm
330 mm 330 mm 330 mm
570 mm 1130 mm 1690 mm
4748 mm 5302 mm 5868 mm
3475 mm 3475 mm 3475 mm
840 mm 840 mm 840 mm
3380 mm 3380 mm 3380 mm
80 mm 80 mm 80 mm
NEO
3B
2260 mm
2820 mm
2050 mm
155 mm
2205 mm
800 mm
1955 mm
330 mm
1130 mm
5308 mm
2915 mm
840 mm
2820 mm
80 mm
NEO
4D
3380 mm
3380 mm
2050 mm
155 mm
2205 mm
800 mm
3075 mm
330 mm
2250 mm
6428 mm
3475 mm
840 mm
3380 mm
80 mm
