Introduction
EcoFlow Smart Meter (The device) is a DIN rail mountable three-phase energy meter. It can be
controlled and monitored through Wi-Fi connection. Bluetooth connection can be used for the
inclusion process. The device reports accumulated energy as well as voltage, current, and power
factor data in real-time. It stores data in non-volatile memory for later retrieval at least 60 days of 1
min data resolution.

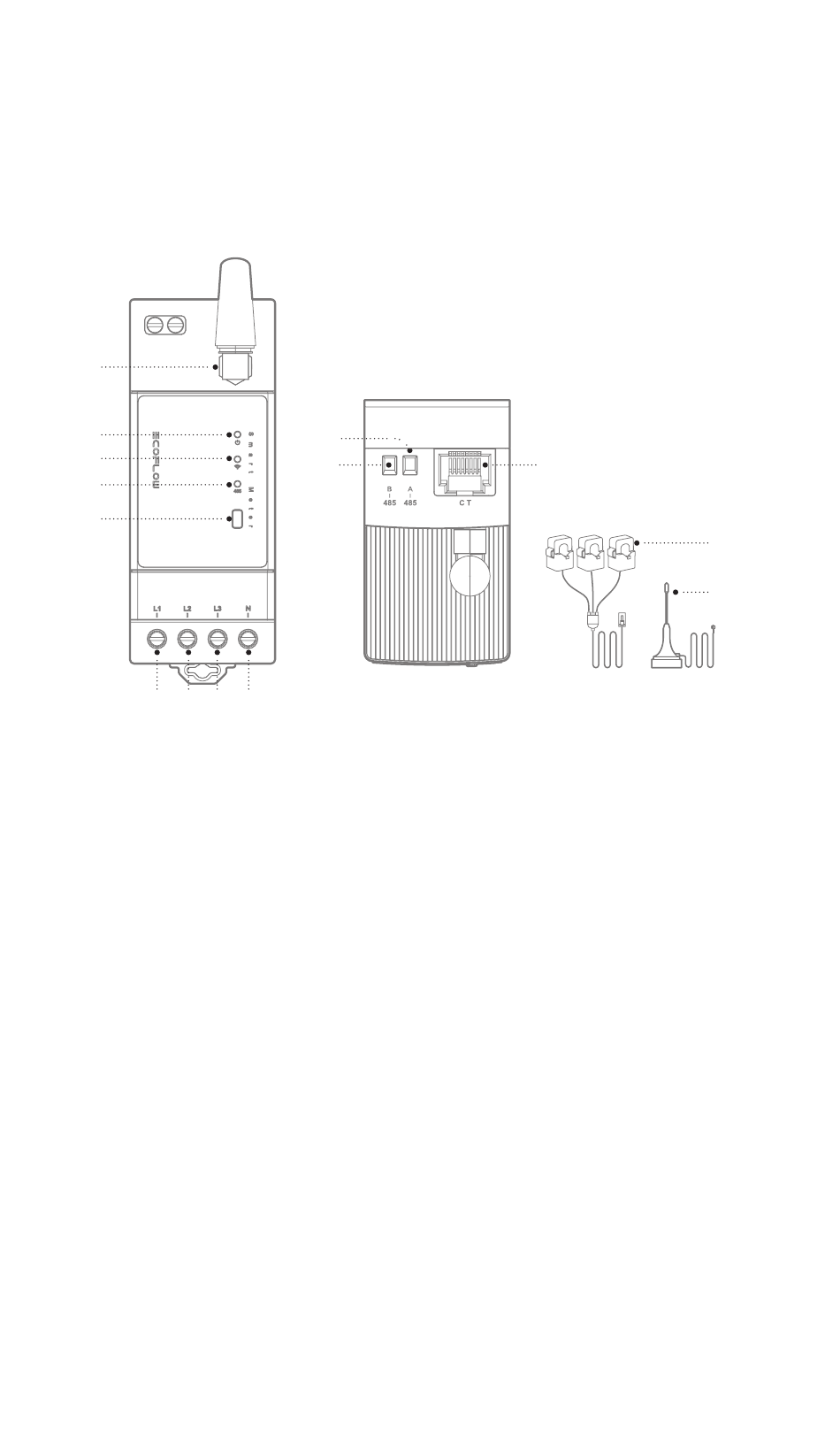

Appearance
1
2
3
4
5
6
1
Detachable antenna
2
Power Status Indicator
3
Wi-Fi Status Indicator
4
RS485 Status Indicator
5
Reset Button
6
Voltage L1 Input and Device Power Supply Input
7
Voltage L2 Input
* Images are for demonstration purposes only. Refer to the actual product received.
10
11
7 8 9
12
8
Voltage L3 Input
9
Neutral Input
10
RS485 A (+) Terminal
11
RS485 B (−) Terminal
12
CT (Current Transformer) Port
13
External CT Cable
14
Extension Antenna
13
14
