- Seite 1 RAYSTAT-EX-02 Installation instructions Montageanleitung Instructions d’installation...

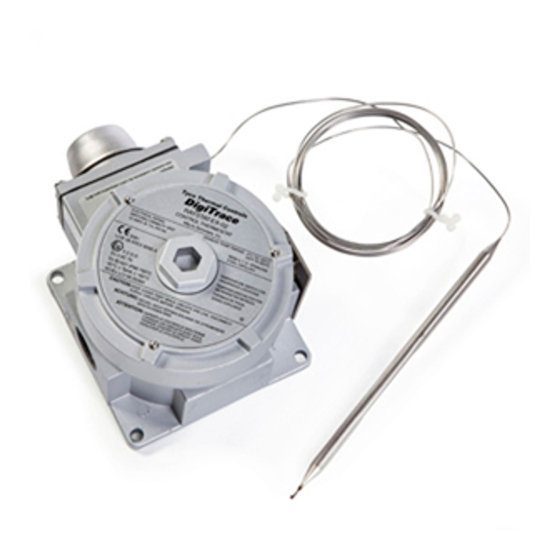

- Seite 3 ENGLISH Cover over adjustment knob & dial Capillary Lid locking system Bulb 3/4 inch NPT entry DEUTSCH Kapillarrohr Abdeckkappe für Einstellknopf DEUTSCH Deckelfixierung Sensor 3/4 NPT-Innengewinde FRANÇAIS Couvercle protégeant la molette de Capillaire réglage et le cadran Sonde Verrouillage du capot Entrée 3/4"...
- Seite 4 Für die Auswahl des sonstigen Heizkreis-Zubehörs steht Ihnen eine Zubehör-Auswahlhilfe zur Verfügung. Bitte die Anleitungen genau beachten. FRANÇAIS Instructions d’installation du thermostat RAYSTAT-EX-02 Ce thermostat convient aux applications pour lesquelles les conditions suivantes sont remplies : Caractéristiques nominales du circuit <...
-
Seite 5: Avertissements
ENGLISH Enclosure installation WARNINGS: Alternative mounting arrangements are To avoid compromising the internal shown (4 mounting holes M6 clearance on insulation integrity 101.5 x 101.5 mm centres). - keep thermostat lid firmly closed For optimised temperature control locate when not working on the assembly enclosure remote from bulb. - Seite 6 ENGLISH Maintenance Maintain thermostat during normal plant Internal and external terminals are tight. maintenance. Thermostat operation correct. Thermostat set to suit application. CHECK: Mounting is firm. Dial cover closed firmly. Lid closed firmly. Exposed capillary is not damaged. Gland seal (grommet) is in place. Lid grub screw is tight.
- Seite 7 90° ENGLISH Bulb and capillary installation - on lower quadrant of pipe 90° from Location of bulb single heating cable (B) - as indicated in the system design - on lower quadrant of pipe centrally documentation between heating cables if two or more - away from heat sinks such as heating cables (C).
- Seite 8 Dimensions in mm ENGLISH Bulb and capillary installation WARNING: continued Do not bend bulb, keep it straight at all Attachment of bulb times. - fix bulb firmly on pipe surface with heating cable fixing tape in three places (D) - fix bulb parallel to pipe (D) - route capillary to avoid damage in use.
- Seite 9 Presse-étoupe du câble d’alimentation présents entre les bornes de phase Presse-étoupe Raychem (repère 1 du schéma ci-dessus) dans la Thermostat RAYSTAT-EX-02 boîte de jonction ont été ôtés, sinon le Boîte de jonction thermostat ne contrôle rien. Kit de raccordement du ruban chauffant...
- Seite 10 ENGLISH Cable connections continued Close lid by hand Ensure lid retaining grub screw is loose Tighten lid retaining grub screw but is retained in plate Where required connect external earth Remove lid using spanner if necessary terminal provided Install cable through gland, fix gland in place firmly and terminate WARNING: cable to required standards...
- Seite 11 ENGLISH Complete installation When thermostat installation is complete Ensure the pipe and bulb are thermally test as described in the Installation & insulated and clad to the design specifica- Maintenance manual. tion after installation of thermostat. Retain this instruction for future use e.g. Seal cladding with sealant at entry of setting, testing, maintenance.
- Seite 12 ENGLISH Setting Loosen fixing bolts and remove cover from dial. Adjust knob to required setting. Replace cover firmly by tightening fixing bolts. DEUTSCH Einstellung Abdeckkappe losschrauben. Regler auf gewünschte Schalttemperatur einstellen. Abdeckung wieder aufsetzen und fest verschrauben. FRANÇAIS Réglage Oter les vis de fixation et déposer le couver- cle du cadran.
