10
iNSPIRE iP2000/iP1000/iP500
Thank you for choosing a Turbosound loudspeaker product for your application. If you would like further information about this or any other Turbosound product,
please visit our website at turbosound.com.
Unpacking the Loudspeaker
After unpacking the unit please check carefully for damage. If damage is found, please notify your supplier at once. You, the consignee, must instigate any claim.
Please retain all packaging in case of future re-shipment.
iP500 ships with a protective cover for the subwoofer and a shoulder bag for the column segments. Make sure to keep these covers so you can protect your iP500 from
unnecessary wear and tear!
For iP1000 and iP2000, covers and shoulder bags are available separately.
Assembly
iP2000
iP1000
iP500

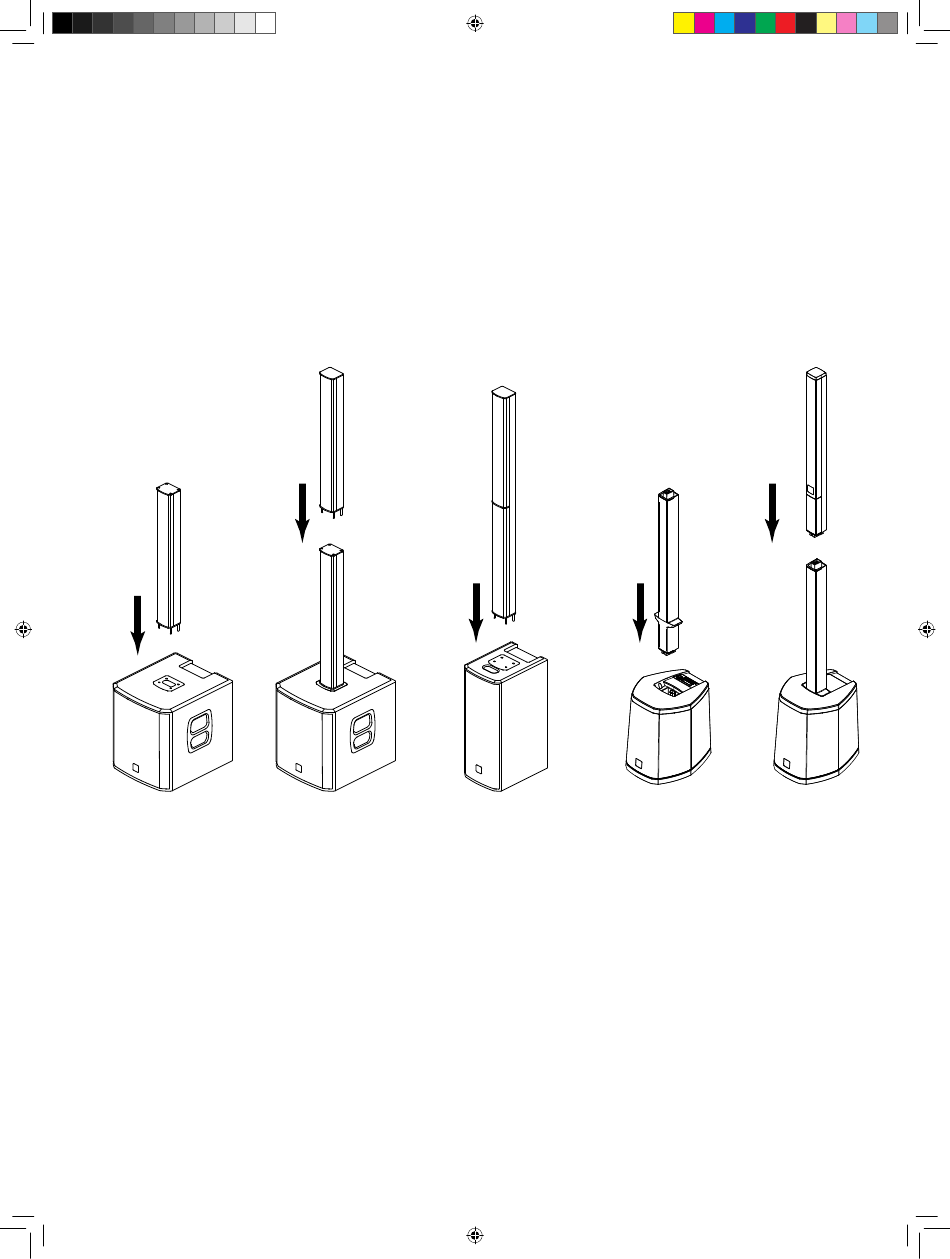

iP500, iP1000 and iP2000 speakers ship with separate base and column elements that will need to be assembled.
To assemble the speakers, follow these steps:
1. Make sure the unit is switched off.
2. Place the base unit onto a firm, level surface, with the column connection inputs facing upward.
3. Align the speaker column over the base unit's connection inputs with the column connectors facing downward.
4. Lower the speaker column into the connection input and gently press downward until the column connectors slot into place.
Note: iP2000 and iP500 feature a 2-piece column assembly. Connect the lower column assembly to the base unit first, and then connect the upper column segment
directly on top of the lower segment.
Once the column assembly is firmly slotted into place, the iP speakers will automatically make all power and audio connections between the base unit and the
speaker column.
