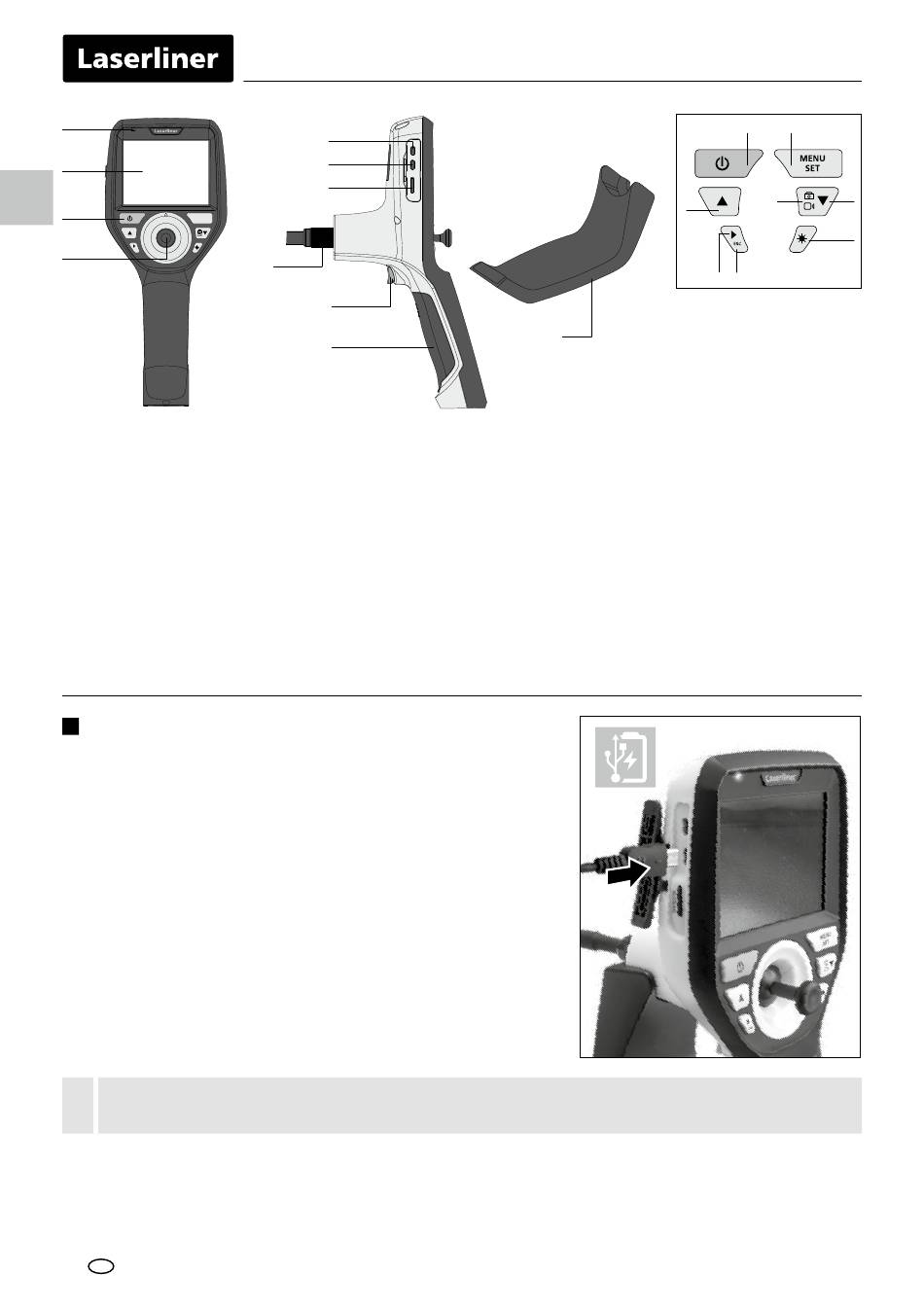

LaserLiner VideoInspector 3D Bedienungsanleitung Seite 14

1
2
3
MENU
SET
4
ESC
1
Operation indicator
2 LCD
3 Hot keys
4
Joystick to turn
the camera head
5 HDMI interface
6
Micro USB interface /
Charging socket
7 Micro SD card slot
Using the power supply /
1
lithium-ion rechargeable battery
– Use the power supply/charger unit only in closed rooms; do not
expose to moisture or rain otherwise risk of electric shock.
– Charge the device's battery completely prior to use.
– Connect the power pack/charger to the mains power supply and
the socket in the battery pack. Please only use the power pack/
charger supplied. Using any other power pack/charger will
invalidate the warranty.
– The LED lights up red while the device is charging.
The LED changes to green when charging is complete.
– Remove the charging cable after charging and disconnect
the power pack from the mains.
!
The device has a replaceable battery. Contact your distributor or the UMAREX-LASERLINER
service department.
14
EN
5
6
7
8
9
10
8
Connection
for 昀氀ex cable
9
Trigger
10
Battery compartment
11 Magnetic
holder
11
a
ON/OFF / Still image
b Rotation 180° /
Menu control
c Media gallery
Image / video
d
Cancel
e Settings mode /
Con昀椀rm /
Select recordings /
Delete recording
3
a e
f
b
c d
f
Image / video
selection
g
Menu control
h
LED lighting
Micro-USB
g
h
