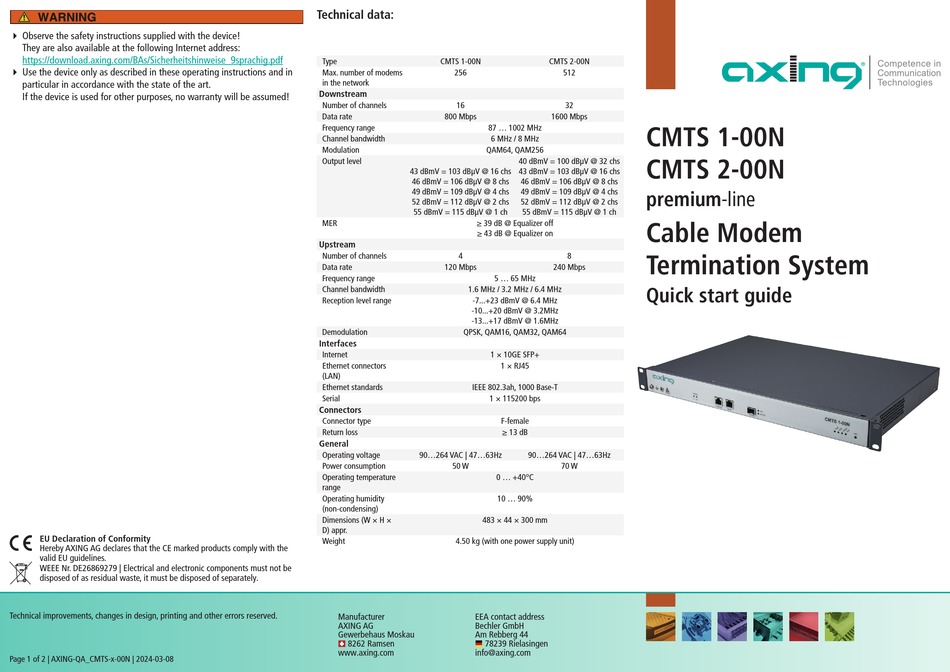

axing premium-line CMTS 1-00N Schnellstartanleitung Seite 3

 Observe the safety instructions supplied with the device!
They are also available at the following Internet address:
https://download.axing.com/BAs/Sicherheitshinweise_9sprachig.pdf
 Use the device only as described in these operating instructions and in
particular in accordance with the state of the art.
If the device is used for other purposes, no warranty will be assumed!
EU Declaration of Conformity
Hereby AXING AG declares that the CE marked products comply with the
valid EU guidelines.
WEEE Nr. DE26869279 | Electrical and electronic components must not be
disposed of as residual waste, it must be disposed of separately.
Technical improvements, changes in design, printing and other errors reserved.
Page 1 of 2 | AXING-QA_CMTS-x-00N | 2024-03-08
Technical data:
Type CMTS 1-00N
Max. number of modems 256
in the network
Downstream
Number of channels 16
Data rate 800 Mbps
Frequency range 87 ... 1002 MHz
Channel bandwidth 6 MHz / 8 MHz
Modulation QAM64, QAM256
Output level
43 dBmV = 103 dBµV @ 16 chs
46 dBmV = 106 dBµV @ 8 chs
49 dBmV = 109 dBµV @ 4 chs
52 dBmV = 112 dBµV @ 2 chs
55 dBmV = 115 dBµV @ 1 ch
MER ≥ 39 dB @ Equalizer off
≥ 43 dB @ Equalizer on
Upstream
Number of channels 4
Data rate 120 Mbps
Frequency range 5 ... 65 MHz
Channel bandwidth 1.6 MHz / 3.2 MHz / 6.4 MHz
Reception level range -7...+23 dBmV @ 6.4 MHz
-10...+20 dBmV @ 3.2MHz
-13...+17 dBmV @ 1.6MHz
Demodulation QPSK, QAM16, QAM32, QAM64
Interfaces
Internet 1 × 10GE SFP+
Ethernet connectors
(LAN)
Ethernet standards IEEE 802.3ah, 1000 Base-T
Serial 1 × 115200 bps
Connectors
Connector type
Return loss
General
Operating voltage 90...264 VAC | 47...63Hz
Power consumption 50 W
Operating temperature
range
Operating humidity
(non-condensing)
Dimensions (W × H × 483 × 44 × 300 mm
D) appr.
Weight 4.50 kg (with one power supply unit)
Manufacturer EEA contact address
AXING AG Bechler GmbH
Gewerbehaus Moskau Am Rebberg 44
8262 Ramsen 78239 Rielasingen
www.axing.com info@axing.com
CMTS 2-00N
512
32
1600 Mbps
CMTS 1-00N
CMTS 2-00N
40 dBmV = 100 dBµV @ 32 chs
43 dBmV = 103 dBµV @ 16 chs
46 dBmV = 106 dBµV @ 8 chs
49 dBmV = 109 dBµV @ 4 chs
premium-line
52 dBmV = 112 dBµV @ 2 chs
55 dBmV = 115 dBµV @ 1 ch
Cable Modem
Termination System
8
240 Mbps
Quick start guide
1 × RJ45
F-female
≥ 13 dB
90...264 VAC | 47...63Hz
70 W
0 ... +40°C
10 ... 90%
