marposs Quick digit S12,5 BASIC Gebrauchsanweisung Seite 6

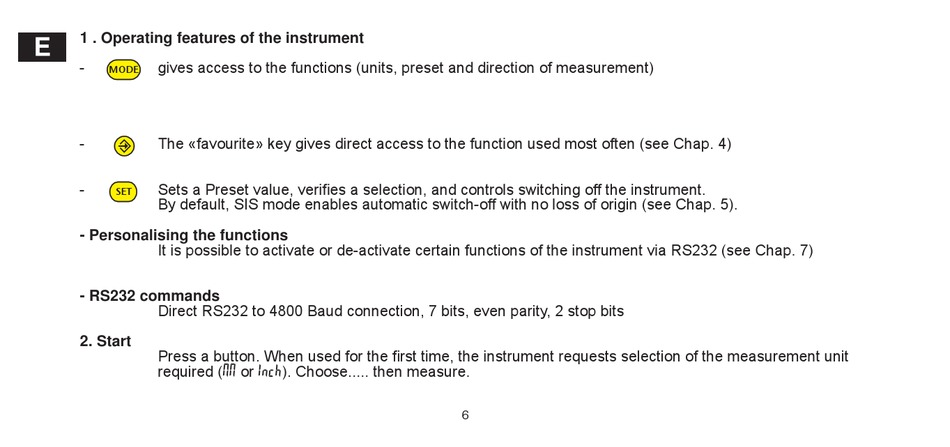

1 . Operating features of the instrument
E
- gives access to the functions (units, preset and direction of measurement)
MODE
- The «favourite» key gives direct access to the function used most often (see Chap. 4)
- Sets a Preset value, verifi es a selection, and controls switching off the instrument.
SET
By default, SIS mode enables automatic switch-off with no loss of origin (see Chap. 5).
- Personalising the functions
It is possible to activate or de-activate certain functions of the instrument via RS232 (see Chap. 7)
- RS232 commands
Direct RS232 to 4800 Baud connection, 7 bits, even parity, 2 stop bits
2. Start
Press a button. When used for the fi rst time, the instrument requests selection of the measurement unit
required (MM or Inch). Choose..... then measure.
6
