5. Protective hood
6. Filament spool
7. Spacer
8. Cutting head
9. Lock for length setting
10. Lock for front handle
11. Front handle
12. Safety lock
Scope of delivery
• Operating manual
• Lawn trimmer
• Guide roller
• Protective hood
Assembly
CAUTION! Risk of injury! On the under-
side of the protective hood there is a sharp
blade designed to cut the thread. Remove
the transportation protection mechanism
after mounting.
► P. 3, fig. 2
– Assemble the individual product components and
secure with screws (13).
► P. 4, fig. 3
– Use screws (14) to screw the protective (5) hood
to the trimming head
► P. 4, fig. 4
– Connect the two halfs of the front handle (11)
using the screw (15).
– Screw the front handle (11) to the device using the
screw (16).
Operation
Check before starting the device!
DANGER! Risk of injury! The device may
only be put into operation if there are no
defects. If a part is defective it must be
replaced before the device is used again.
WARNING! Risk of injury! Before starting
work check the area and remove all objects
which may be kicked up by the unit.
Check to make sure the device is in safe operating
condition:
– Check to make sure there are no visible defects.
– Check to make sure all device components are
correctly mounted.
Proper position
Hold the unit
• with the left hand on the front handle,
• and the right hand at approximately hip level on
the operating handle,
• balanced in a comfortable way.
Setting the angle of the front handle
► P. 4, fig. 4
– Loosen the screw (16).
– Tilt the front handle (11) to the required position.
– Tighten the screw (16) back up again.
Setting the length of the unit
► P. 4, fig. 5
WARNING! Risk of injury! Before each
use, make sure that the telescopic rod is
securely clamped and cannot come loose
during operation.
– Slacken the coupling nut (9).
– Pull the telescopic pole (17) to the desired length.
– Retighten the coupling nut (9) again.
Setting the angle of the cutting head
► P. 4, fig. 6
– Press in and hold the locking button (4).
– Tilt the cutting head to the required position.
– Release the locking button (4) again.
Attaching the extension cable
Note: The used extension cables must be of
a quality that is, at minimum, equal to, or
greater than the permanently installed con-
nection cable of the device!
► P. 4, fig. 7
– Plug the unit plug into the connector of the exten-
sion cable.
– Feed the extension cable through the strain relief
mechanism (3) as shown.
Switching on and off
– Switching on: Press the switch lock (12) and
simultaneously press the On/Off switch (1).
– Switching off: Release the on-off switch (1).

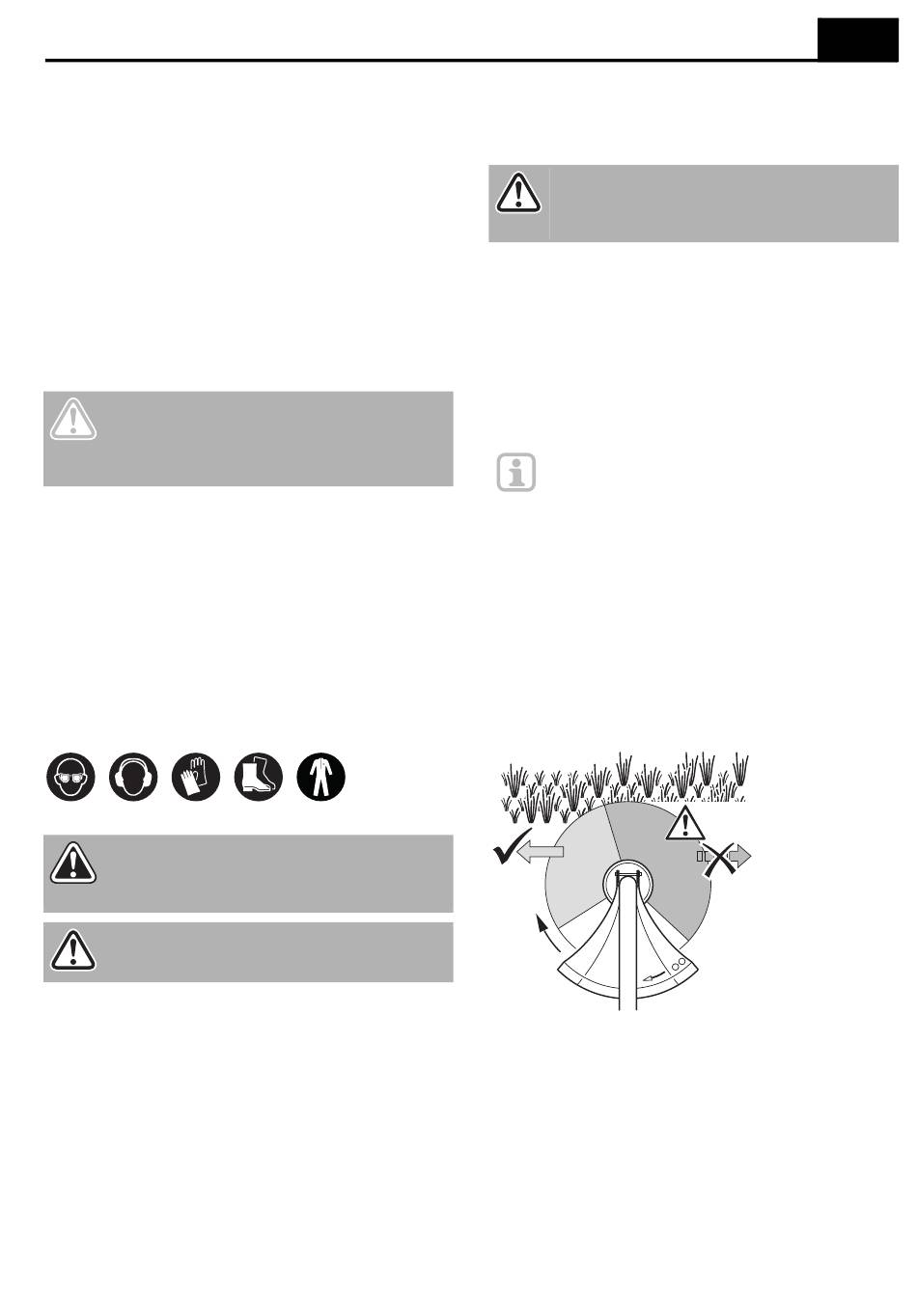

Cutting tips
• Only cut with the left (shown here as light grey)
area of the cutting unit when the unit is being
moved from right to left.
• In the right (dark grey) area, the threads rotate in
your direction.
This represents a high level of kickback risk and
objects may be thrown in your direction by the
rotation of the thread. You may be hurt as a result.
• When the unit is moved from left to right, ensure
that the thread is kept away from the grass to
ensure that the grass is not thrown up.
• Cut long grasses from top to bottom to ensure that
the grasses do not get tangled around the spool.
