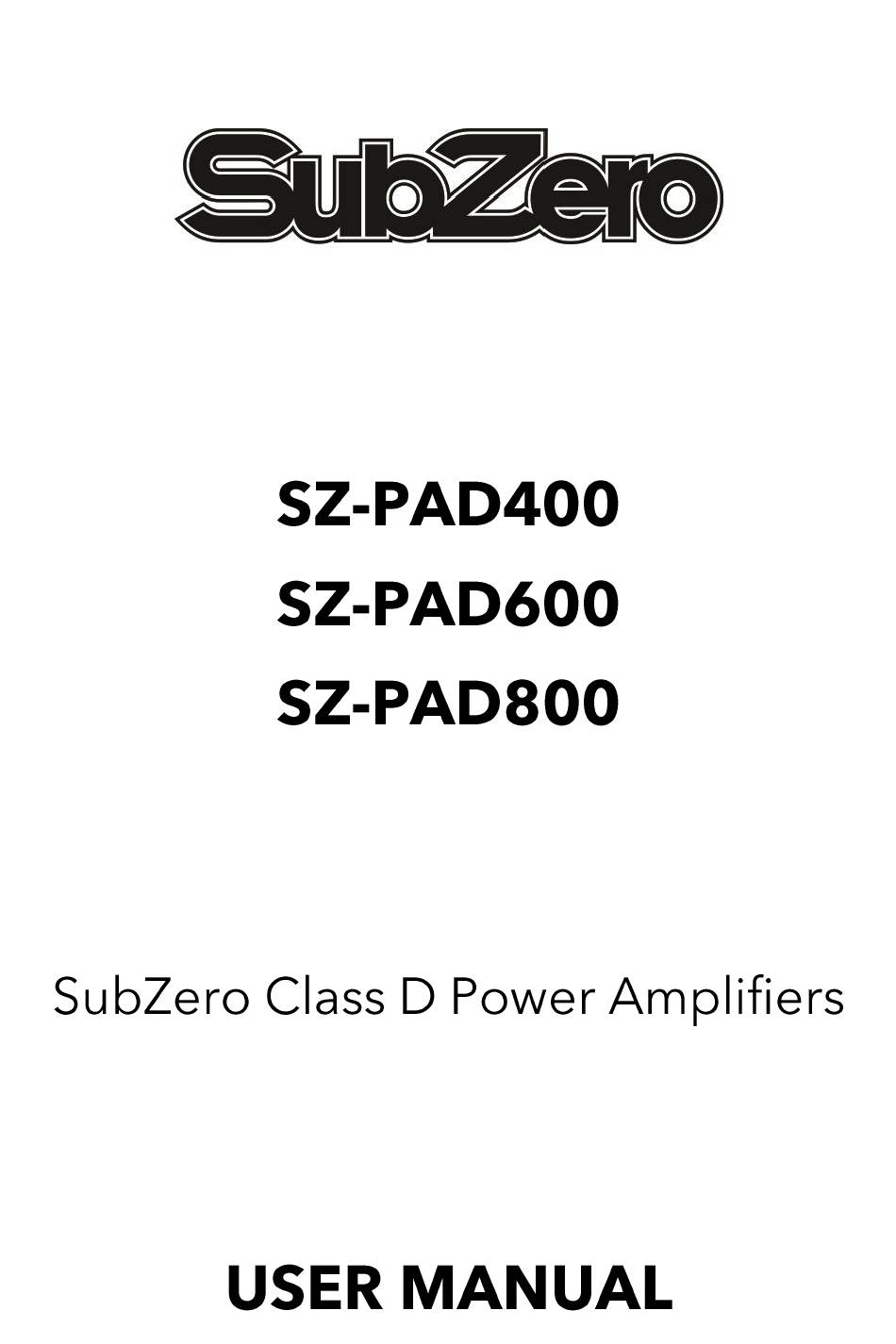

- Seite 1 Subzero SZ-PAD400 SZ-PAD600 SZ-PAD800 SubZer Class D Power A mplifiers USER MANUAL...
- Seite 2 WARNING! Do not open cover. No user-serviceable parts inside. Referservicing to qualified service personnel DO not place the product in a location near a heat source such as a radiator, or in an area subject to direct sunlight, excessive dust, mechanical vibration or shock The product must not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the product...
-
Seite 3: Ostrze±Enie
ATTENTION! Ne pas ouvrir le couvercle. Aucune piece interne réparable par l'utilisateur. Confier la réparation a du personnel de réparation qualifié Ne pas laisser l'appareil proximité d'une source de chaleur telle qu•un radiateur, dans un endroit directement exposé aux rayons du soleil, trop poussiéreux, ou pouvant subir des chocs mécaniques L'appareil ne doit pas étre exposé... - Seite 4 ATENGÄO! Nao abra a tampa. Näo tente a reparaqäo do instrumento por si. Dirija-se a pessoal qualificado Nao aproxime a uma fonte de calor excessivo Ou exponha 0 produto luz solar, poeira, vibraqäO ou choque Nao mantenha o produto num local hümido ou perto liquidos como vasos,etc. Nao aproxime o produto a fontes de fogo vivo, como Velas Mantenha o produto num espaqo suficientemente arejado de forma a evitar sobre-aquecimento.
-
Seite 5: Basic Functions
BASIC FUNCTIONS (FRONT) 1 . MAINS POWER SWITCH Please note that this amplifier has been equipped with "soft start" circuitry to prevent power surges. When the unit is powered on, there will be a five to six second delay, during which you should hear two clicks roughly two seconds apart. - Seite 6 BASIC FUNCTIONS (BACK) 1. Mains Power Supply Cord 2. CH-A/CH-B input XLR Standard XLR conector, Connection method - Pin 1: signal ground, Pin2: signal +, Pin3: signal - 3. CH-A/CH-B input JACK TRSjack input. Both TS and TRSjack input cables can be used. Tip: signal Ring: signal Sleeve: ground 4.
- Seite 7 SPECIFICATIONS MODEL SZ-PAD400 SZ-PAD600 SZ-PAD800 Output Power Stereo 115W+115W 175W+175W 226W+226W (ElA IKHz 1%THD) 190W+190W 290W+290W 380W+380W Bridge 380W 580W 760W Parallel 380W 580W 760W Speakon & Binding Output Connections 20Hz-20kHz, ±1dB Frequency Response Input Sensitivity O. 77V/26dB/1.4V Input Impedance 20kQ/Bala nced, 10kQ/un-Balanced >95dB...
