Thermal Imager / English
Image mode: set image source for the display on the Thermal Imager's LCD. It
contains six items such as infrared image, visual image and fusion.
Palette: set the type of color bar.
Settings: set for the user preferences such as language, unit of temperature
measurement, date, time. restore factory setting and display product information.

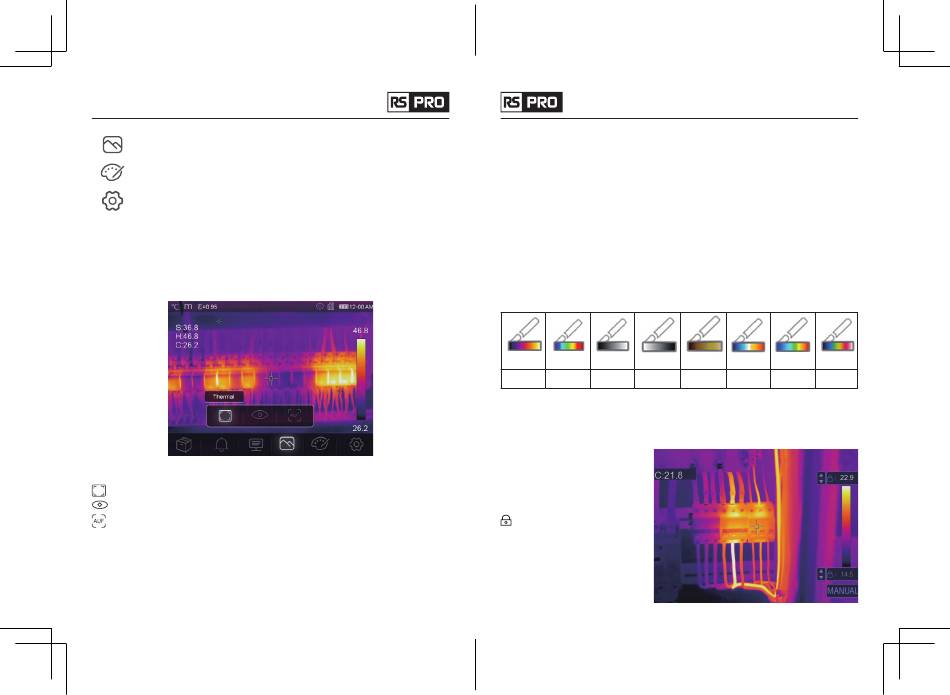

6-2. Image Mode
In main menu, press "Left/Right" button, highlight "Image mode" icon , highlight "Image
mode",Short Press the "OK|ESC" button to popup Image submenu which contains five image
modes.Long Press the "OK|ESC" button to exit the Palette Image mode menu.
Thermal Imager has 3 kinds of image modes for display. IR, Camera, AUF mode.
IR: displays only infrared image;
Camera: displays only visible image;
AUF: Auto Fusion mode, compare the centre area temperature with full screen, the
machine will calculate the mix ratio of infrared and visible images automaticly.
14
6-3. Image Palette
• The Image Palette lets you change the false-color presentation of the infrared images on
display or captured.
• A variety of palettes are available for specific applications.
• The standard palettes offer an equal, linear presentation of colors that allow for best
presentation of detail.
Standard Palette
• In main menu, press "Left/Right" button, highlight "Palette".
• Short Press the "OK|ESC" button, the Palette menu will be poped up, Palette submenu
which contains 8 kinds of color palettes.Long
• Press the "OK|ESC" button to exit the Palette settingmenu.
Iron
Rainbow
Grey
Grey invert Brown hot Blue red Hot cold
6-4. Image Adjustment
There are three kinds of mode for image adjustment, hisgram, Auto and Manual.
6-4-1. Lock operation
Short press power key button to
switch to Manual mode, lock the
current scene temperature range.
means Manual.
Thermal Imager / English
Feather
15
