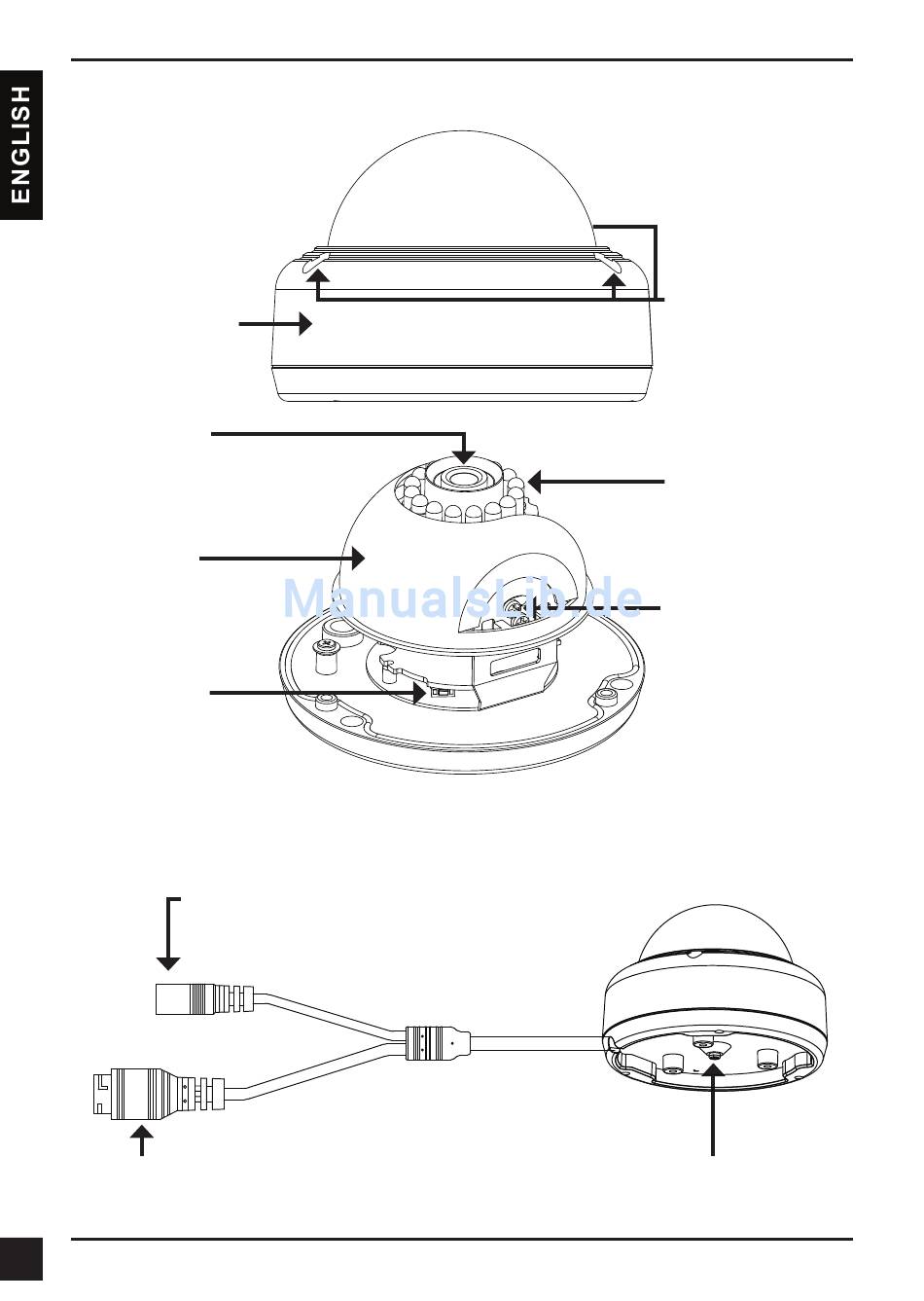

Hardware Overview - D-Link DCS-4602EV Installationsanleitung

Protective Cover
Camera Lens
Inner Cover
Reset Button
Resets camera back
to the factory default
settings
Power Connector
Connects to an optional 12 V / 1.5 A
power adapter (not included)
Ethernet Jack
RJ-45 connector for Ethernet which can also be used to
power the camera using Power over Ethernet (PoE)
2

Hardware Overview

D-Link DCS-4602EV Quick Installation Guide
Cover Screws
The three screws can be
removed with the included
wrench
IR LEDs
Provide illumination for
low-light environments
Tilt Adjustment Screw
Can be loosened to adjust
camera angle
Grounding Screw
Attach to a grounding wire
if desired
