Hardware Overview - D-Link Vigilance DCS-4705E Installationsanleitung

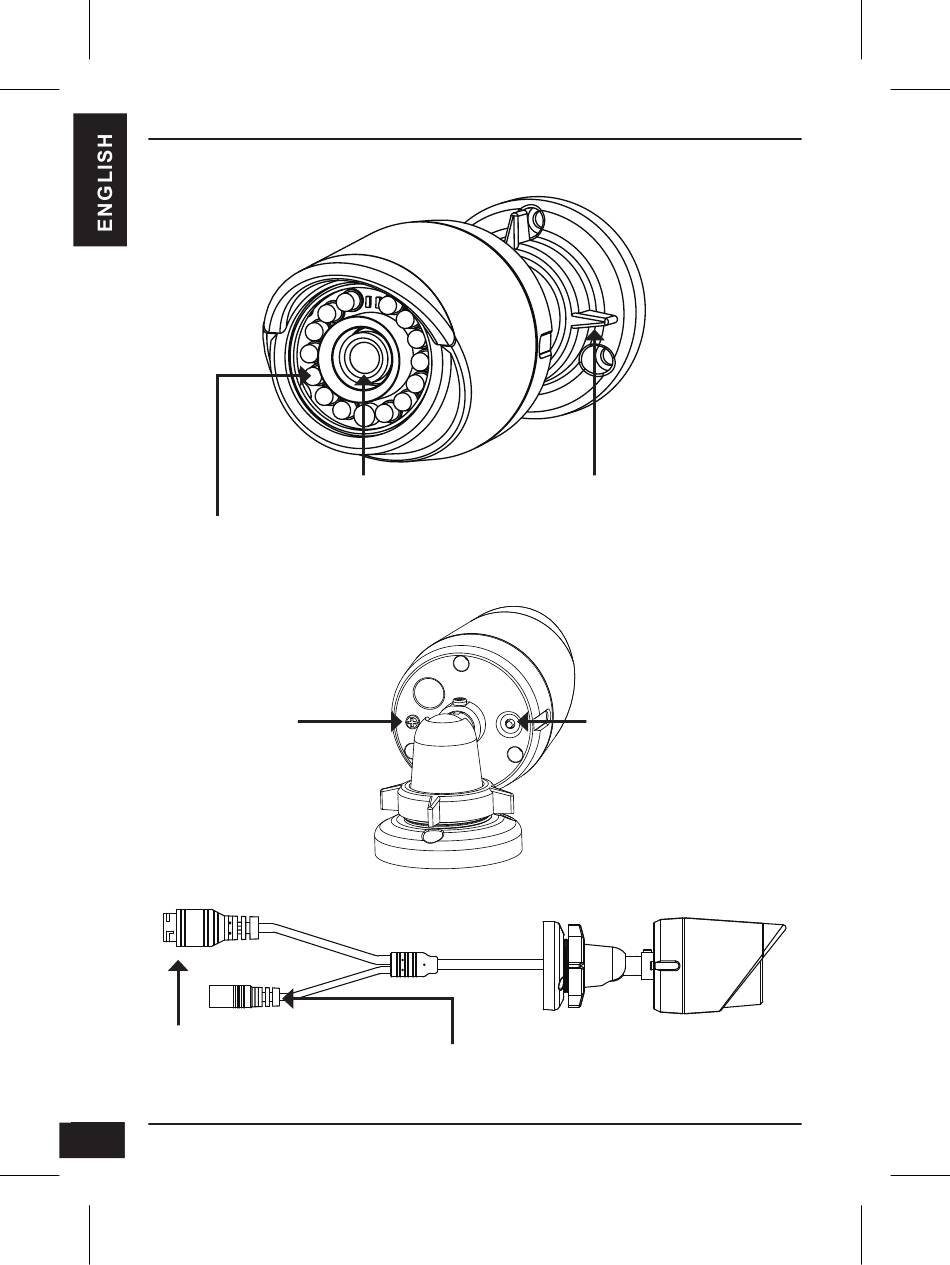

IR LEDs
Provide illumination for
low-light environments
Grounding Screw
Can be attached to a
grounding wire if desired
Ethernet Jack
RJ-45 connector for Ethernet, can
also be used to power the camera
using Power over Ethernet (PoE)
2 2

Hardware Overview

Camera Lens
Power Connector
Connects to an optional 12 V / 1.5 A power
adapter (not included)
D-Link DCS-4705E Quick Installation Guide
Adjustment Ring
Loosen to adjust camera
angle and tighten to lock
camera angle
Reset Button
Press and hold for 10
seconds to reset camera
back to the factory default
settings
