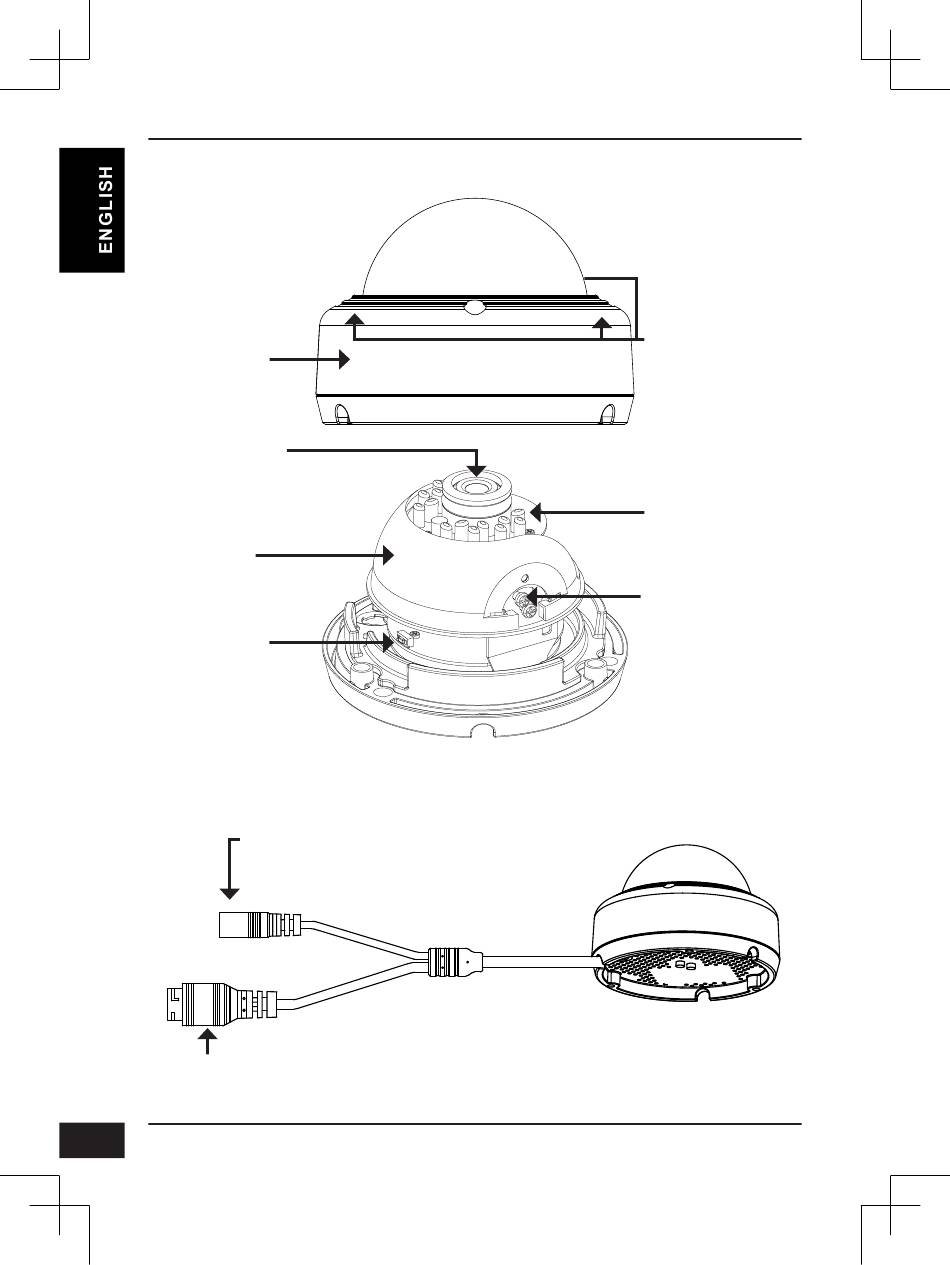

Camera Cover
Camera Lens
Inner Cover
Reset Button
Resets camera back
to the factory default
settings
Power Connector
Connects to an optional 12 V / 1.5 A
power adapter (not included)
Ethernet Jack
RJ-45 connector for Ethernet which can also be used
to power the camera using Power over Ethernet (PoE)
2

Hardware Overview

D-Link DCS-4603 Quick Installation Guide
Cover Screws
The three screws can
be removed with the
included wrench
IR LEDs
Provide illumination for
low-light environments
Tilt Adjustment Screw
Can be loosened to
adjust camera angle
