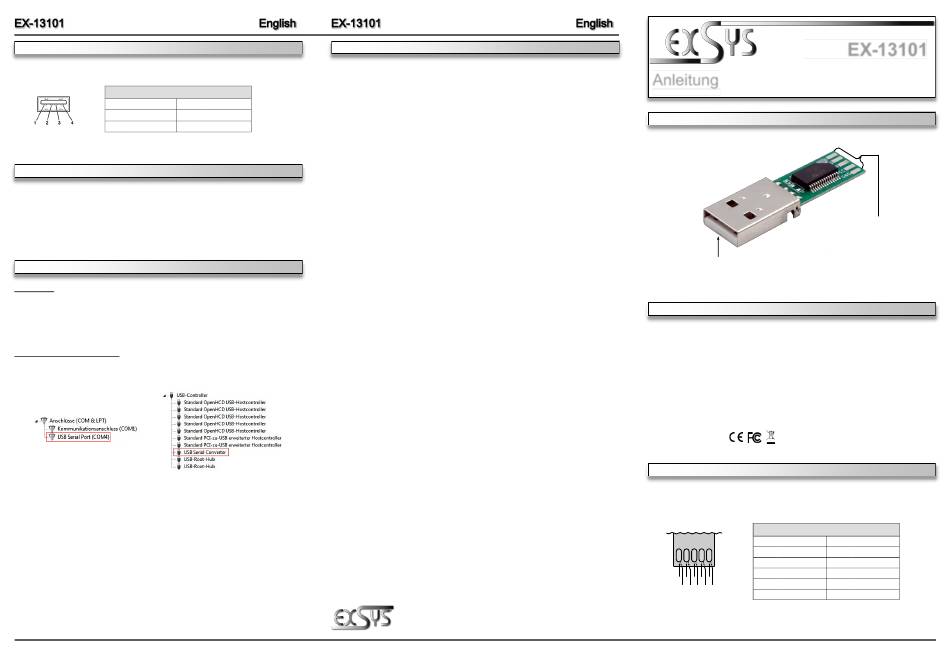

Exsys EX-13101 Anleitung

CONNECTORS & STATUS LED'S
USB 2.0 A-Plug:
USB 2.0 A-Plug
Pin Signal Pin
1 VCC 3
2 DATA- 4
HARDWARE INSTALLATION
Because there are large differences between PC's, we can give you only a general installation
guide for the EX-13101. Please refer your computers reference manual whenever in doubt.
1. Connect the EX-13101 USB to the USB A-Port at the your PC.
2. When you are ready you can start your PC and continue with the point „Driver Installation".
DRIVER INSTALLATION
Windows
After the hardware installation Windows will recognize the device automatically and install the
drivers. If the driver shoul not be installed automatically, please download the driver from our
homepage (www.exsys.de / www.exsys.ch) first. Now select the folder with your operating
system and install the driver. Follow the hardware assistant and finish the installation.
Important! Restart your PC in any case after installing the drivers.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „Ports (COM & LPT)" and „USB-
Controller" the following new entry:
If you see this or a similar information the device is installed correctly.
5
CLEANING
To clean the unit, use only a dry, lint-free cloth and apply light pressure to remove dirt. Be
careful not to leave any fibres of the cloth in the connector area.
Never use a damp or wet cloth for cleaning!
Signal
DATA+
GND
Germany: Switzerland:
EXSYS Vertriebs GmbH EXSYS Vertriebs GmbH
Industriestrasse 8 Dübendorfstrasse 17
61449 Steinbach 8602 Wangen
www.exsys.ch
www.exsys.de
6
Anleitung
Vers. 1.0 / 30.10.23
AUFBAU
USB A-Stecker
zum Anschluss an PC
BESCHREIBUNG & TECHNISCHE DATEN
Das EX-13101 USB zu RS232 UART Konverter-Board besteht aus einer Platine mit fest
montiertem USB-Stecker und einem FTDI-Chip FT232RL, der alle USB-Signale und -Protokolle
verarbeitet. Es eignet sich ideal für Testzwecke oder zum erstellen von USB zu Seriell Kabeln
nach eigenen Kriterien.
Kompatibilität: USB 1.1, 2.0 & 3.2
Betriebssysteme: Windows 9.x / ME / 2000 / XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx/
Linux / MAC
Anschlüsse: 1x USB 2.0 A-Stecker, 1x 10 Lötpunkte seriell RS-232
Lieferumfang: EX-13101
Zertifikate:
ANSCHLÜSSE & STATUS LED'S
RS-232 Anschlussbelegung:
Lötpunkte:
Lötpunkte
Pin Signal
1 GND
2 VCC
3 DTR
1 2 3 4 5
4 DCD
6 7 8 9 10
5 RTS
1
EX-13101
10 Lötpunkte seriell RS-232
Pin Signal
6 CTS
7 TXD
8 DSR
9 RXD
10 RI
