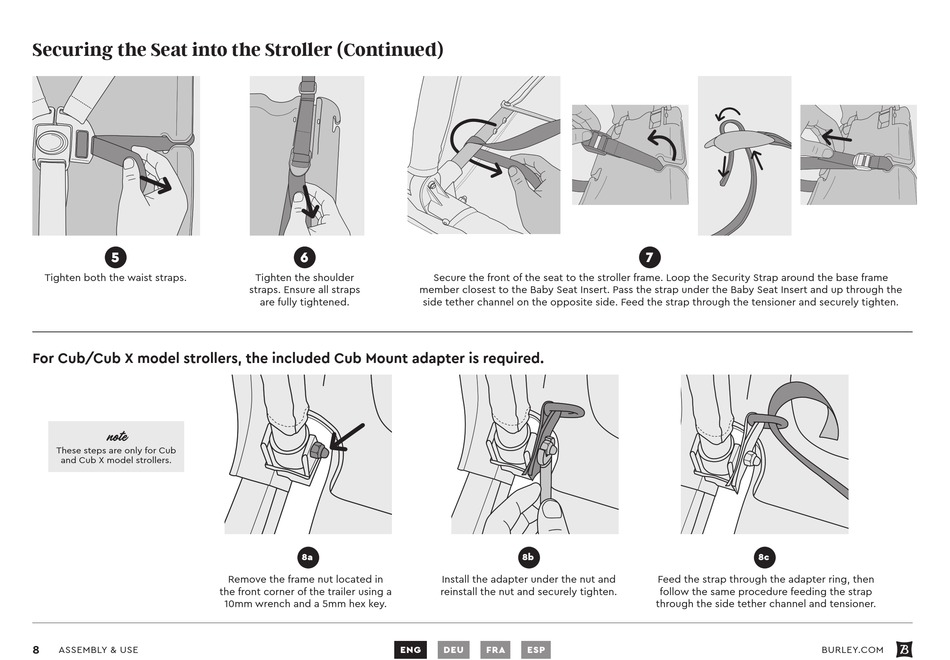

Securing the Seat into the Stroller (Continued)
5 6 7
tighten both the waist straps. tighten the shoulder Secure the front of the seat to the stroller frame. Loop the Security Strap around the base frame
straps. Ensure all straps member closest to the Baby Seat Insert. Pass the strap under the Baby Seat Insert and up through the
are fully tightened. side tether channel on the opposite side. Feed the strap through the tensioner and securely tighten.
For Cub/Cub X model strollers, the included Cub Mount adapter is required.
note
these steps are only for cub
and cub X model strollers.
8a 8b 8c
remove the frame nut located in Install the adapter under the nut and Feed the strap through the adapter ring, then
the front corner of the trailer using a reinstall the nut and securely tighten. follow the same procedure feeding the strap
10mm wrench and a 5mm hex key. through the side tether channel and tensioner.
8
