Assembly & Use; Setting Up The Seat Base; Securing The Seat Into The Stroller - Burley Insert Anleitung Zur Montage Und Verwendung

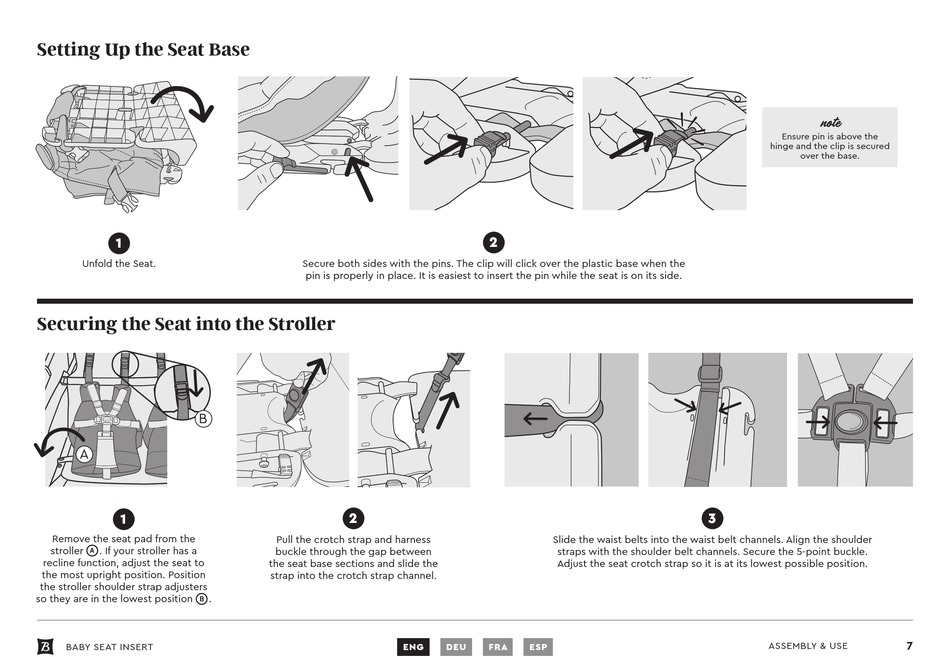

Setting Up the Seat Base

1
unfold the Seat.

Securing the Seat into the Stroller

B
A
1
remove the seat pad from the
stroller A . If your stroller has a
recline function, adjust the seat to
the most upright position. Position
the stroller shoulder strap adjusters
so they are in the lowest position B .
BABY SEAT INSERT
Secure both sides with the pins. the clip will click over the plastic base when the
pin is properly in place. It is easiest to insert the pin while the seat is on its side.
2
Pull the crotch strap and harness
buckle through the gap between
the seat base sections and slide the
strap into the crotch strap channel.
ENG DEU
2
Slide the waist belts into the waist belt channels. Align the shoulder
straps with the shoulder belt channels. Secure the 5-point buckle.
Adjust the seat crotch strap so it is at its lowest possible position.
FRA ESP
note
Ensure pin is above the
hinge and the clip is secured
over the base.
3
ASSEMBLY & uSE
7
