OPTION 2 (cabinet mounting)
LAN cable
LAN cable
LAN cable
LAN cable

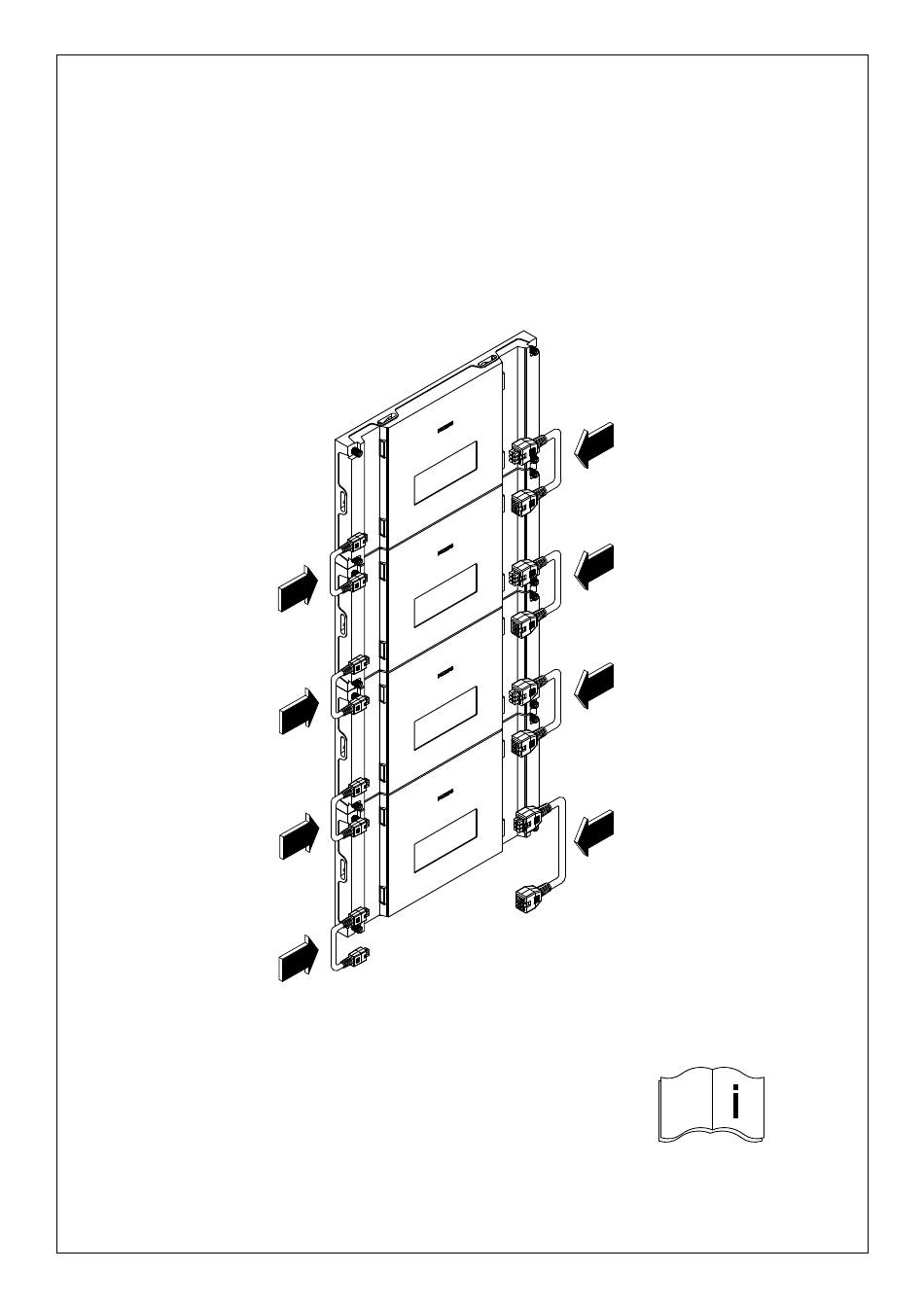

Attach cables to display column
REAR VIEW
To LED
display
controller
SMS LEDDY WALL 4X4 FOR PHILIPS BDL 27 23
Power cable
(daisy chain)
Power cable
(daisy chain)
Power cable
(daisy chain)
Power cable
(daisy chain)
To power
Refer display manual
