Beetronics User Manual | Bedienungsanleitung | Manuel d'utilisation
Mounting options
Mounting options

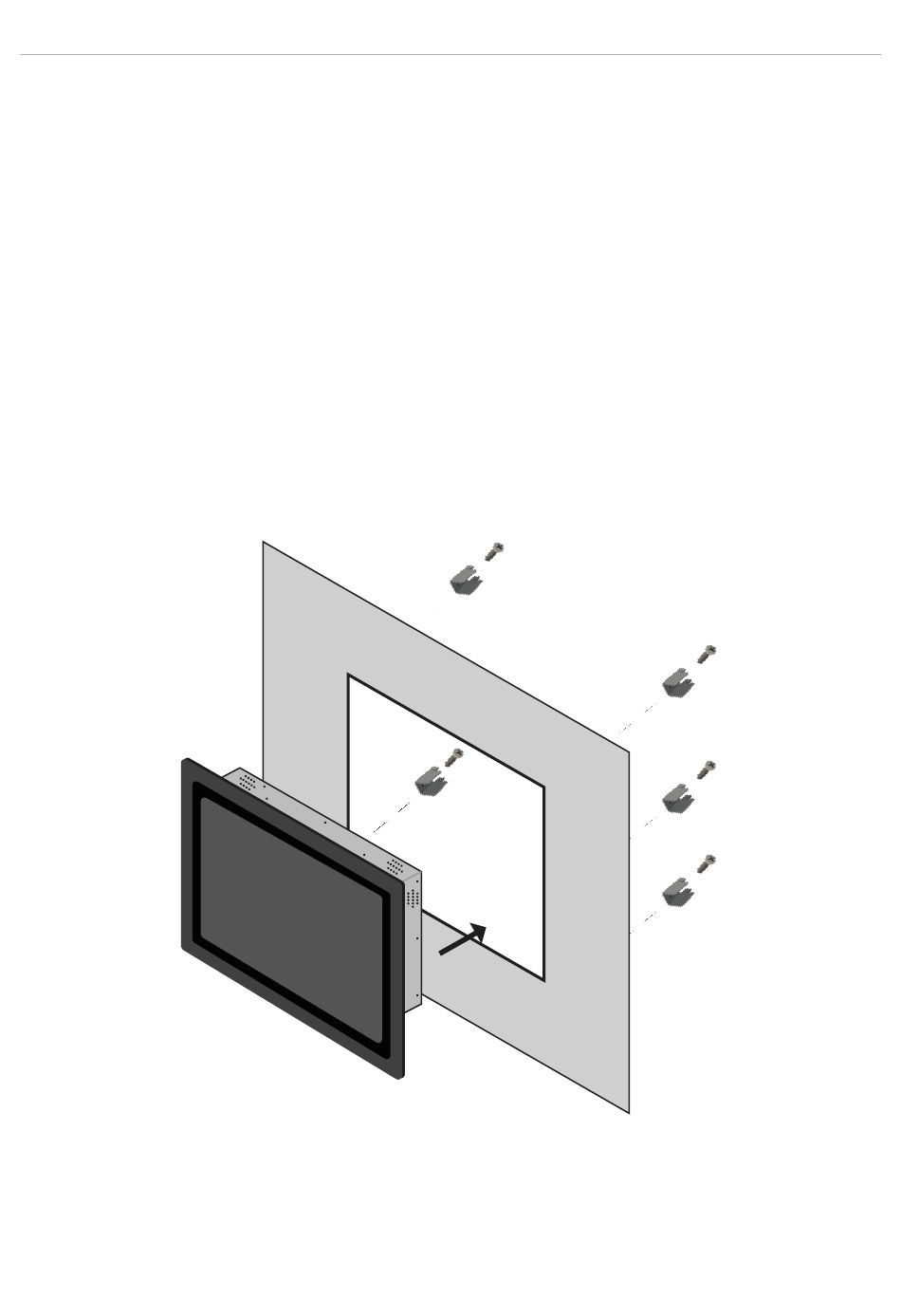

01 | Panel mount
1.
(Optional) Place the sealing ring around the casing of the display if you wish to integrate the display while maintaining the IP65 rating.
2.
Position the display in the designated cut-out area, ensuring that the edges of the display align perfectly with the cut-out edges. Be
careful not to make the cut-out too small or too large and consider the thickness limitation.
3.
Securely attach the mounting strips to the display.
4.
Slide the clamps into the designated holes on the mounting strips.
5.
Tighten the screws securely on each clamp to ensure a stable fit.
6.
Repeat steps 3 to 5 a total of 8 times, using all 8 mounting strips, clamps, and screws to complete the secure installation.
22
