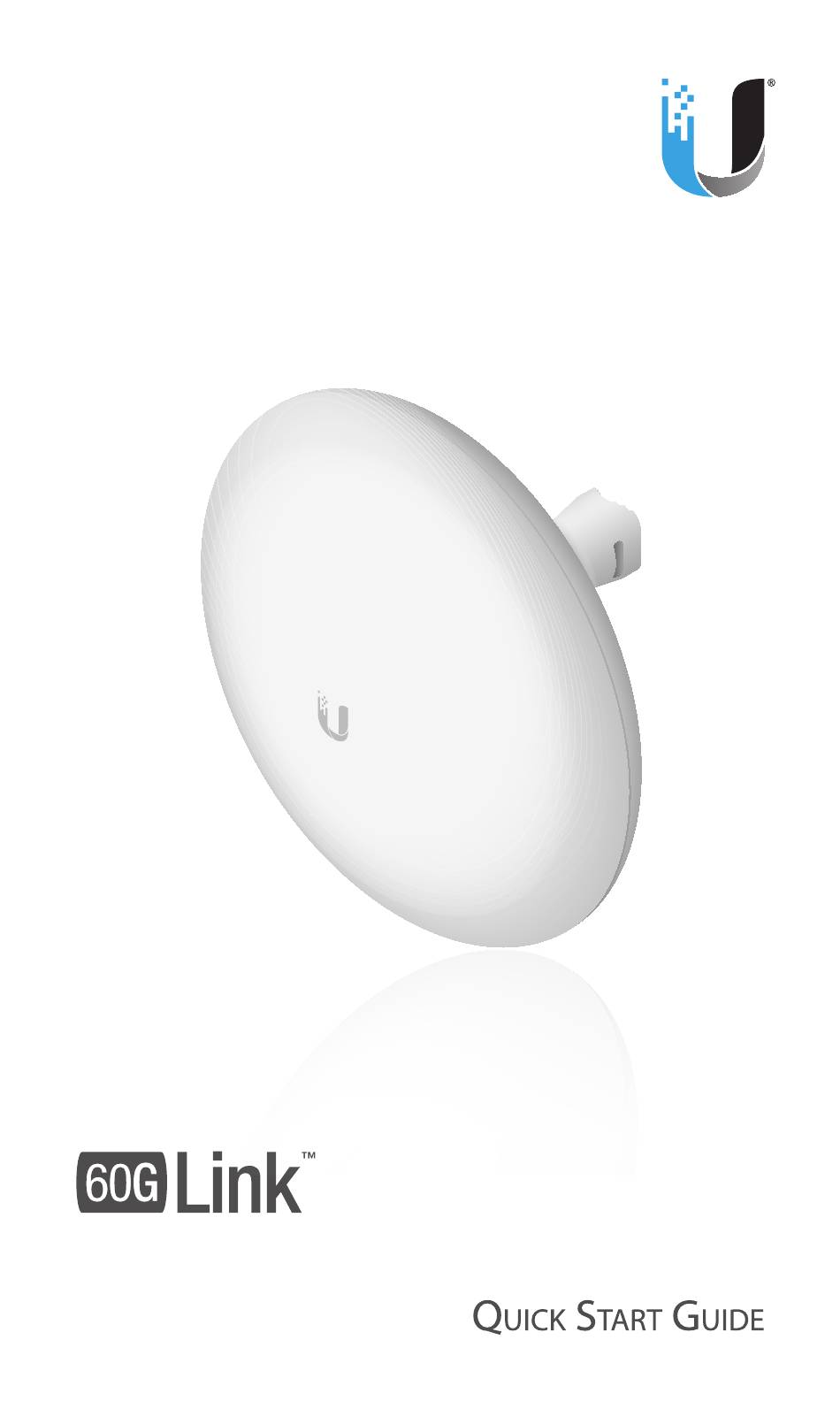

- Seite 1 All manuals and user guides at all-guides.com 60 GHz/5 GHz Radio System with 1 Gbps+ Throughput Model: 60G-Link...
-
Seite 2: Package Contents
All manuals and user guides at all-guides.com Package Contents 60G Link Ball Joint Lock Ring Mount Metal Strap Gigabit PoE (24V, 0.5A) Power Cord with Mounting Bracket... -
Seite 3: Installation Requirements
AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit ui.com/toughcable • Surge protection should be used for all outdoor installations. -
Seite 4: Hardware Overview
All manuals and user guides at all-guides.com Hardware Overview Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the device is powered on. Alternatively, the device may be reset remotely via a Reset button located on the bottom of the Gigabit PoE Adapter. - Seite 5 All manuals and user guides at all-guides.com LEDs Lights steady blue when there is a strong GPS signal. . 60 GHz Lights steady blue when 60G link is ready. 5 GHz Lights steady blue when the 5 GHz link is ready. The LED will light steady blue when an active Ethernet connection is made to the Ethernet port and flash when there is activity.
-
Seite 6: Hardware Installation
All manuals and user guides at all-guides.com Hardware Installation Go to the appropriate mounting instructions: Pole Mounting or “Wall Mounting” . Pole-Mounting... - Seite 7 All manuals and user guides at all-guides.com...
-
Seite 8: Wall Mounting
All manuals and user guides at all-guides.com Wall Mounting The device must be mounted directly to a wood stud or other structurally stable surface to avoid damage to the mounting hole when you adjust the aim. Optional Accessory To enhance stability, you can use the NanoBeam® Wall Mount Kit, model NBE-WMK (sold separately). - Seite 9 All manuals and user guides at all-guides.com Fastener (not included) NanoBeam Wall Mount Kit...
- Seite 10 All manuals and user guides at all-guides.com Aiming...
-
Seite 11: Connecting Power
All manuals and user guides at all-guides.com Connecting Power... - Seite 12 All manuals and user guides at all-guides.com 4. Connect the power using: • included Gigabit PoE Adapter • PoE switch WARNING: The switch port must comply with the power specifications listed in the Specifications section of this Quick Start Guide. Connecting to the PoE Adapter Mounting the PoE Adapter (Optional)
- Seite 13 If necessary, you can power cycle the device to re-enable its Wi-Fi. UNMS App 1. Download the UNMS app. 2. Connect your device’s Wi-Fi to the SSID named: 60G-Link:<MAC Address> Note: Ensure that DHCP is enabled on your Wi-Fi adapter. 3. Launch the app and follow the on-screen instructions.
- Seite 14 All manuals and user guides at all-guides.com 3. Select your Country and Language. You must agree to the Terms of Use to use the product. Click Continue. 4. Create a username and password. Confirm your new password and then click Save. The airOS Configuration Interface will appear, allowing you to customize your settings as needed.
- Seite 15 All manuals and user guides at all-guides.com Installer Compliance Responsibility Devices must be professionally installed and it is the professional installer’s responsibility to make sure the device is operated within local country regulatory requirements. The Output Power field is provided to the professional installer to assist in meeting regulatory requirements.
- Seite 16 All manuals and user guides at all-guides.com Specifications 60G-Link Dimensions 140 x 140 x 90 mm (5.51 x 5.51 x 3.54") Weight 376 g (13.3 oz) Gain 5 GHz 10 dBi 60 GHz 17.2 dBi Networking Interface 10/100/1000 Ethernet Ports...
-
Seite 17: Safety Notices
All manuals and user guides at all-guides.com Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in a location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. - Seite 18 All manuals and user guides at all-guides.com Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions.
- Seite 19 All manuals and user guides at all-guides.com IMPORTANT NOTE: Radiation Exposure Statement: • This equipment complies with radiation exposure limits set forth for an uncontrolled environment. • This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. •...
- Seite 20 All manuals and user guides at all-guides.com CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. Country List AT BE BG CY CZ DE DK EE EL ES FR HR LU MT NL PL PT RO...
- Seite 21 All manuals and user guides at all-guides.com Deutsch Die Europäische Richtlinie 2012/19/EU verlangt, dass technische Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem Symbol versehen ist, nicht zusammen mit unsortiertem Gemeindeabfall entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt von regulärem Haushaltmüll getrennt entsorgt werden sollte.
-
Seite 22: Declaration Of Conformity
English Hereby, UBIQUITI, declares that this 60G-Link device, is in compliance with the essential requirements and other relevant provisions of Directives 2014/53/EU, 2014/30/EU, 2014/35/EU. The full text of the EU declaration of conformity is available at the following internet address: ui.com/compliance... - Seite 23 Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes címen: ui.com/compliance Íslenska [Icelandic] Hér, UBIQUITI, því yfir að þetta 60G-Link tæki er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipana 2014/53/ESB, 2014/30/ESB, 2014/35/ESB. Fullur texti ESB samræmisyfirlýsing er að finna á eftirfarandi netfangi: ui.com/compliance...
-
