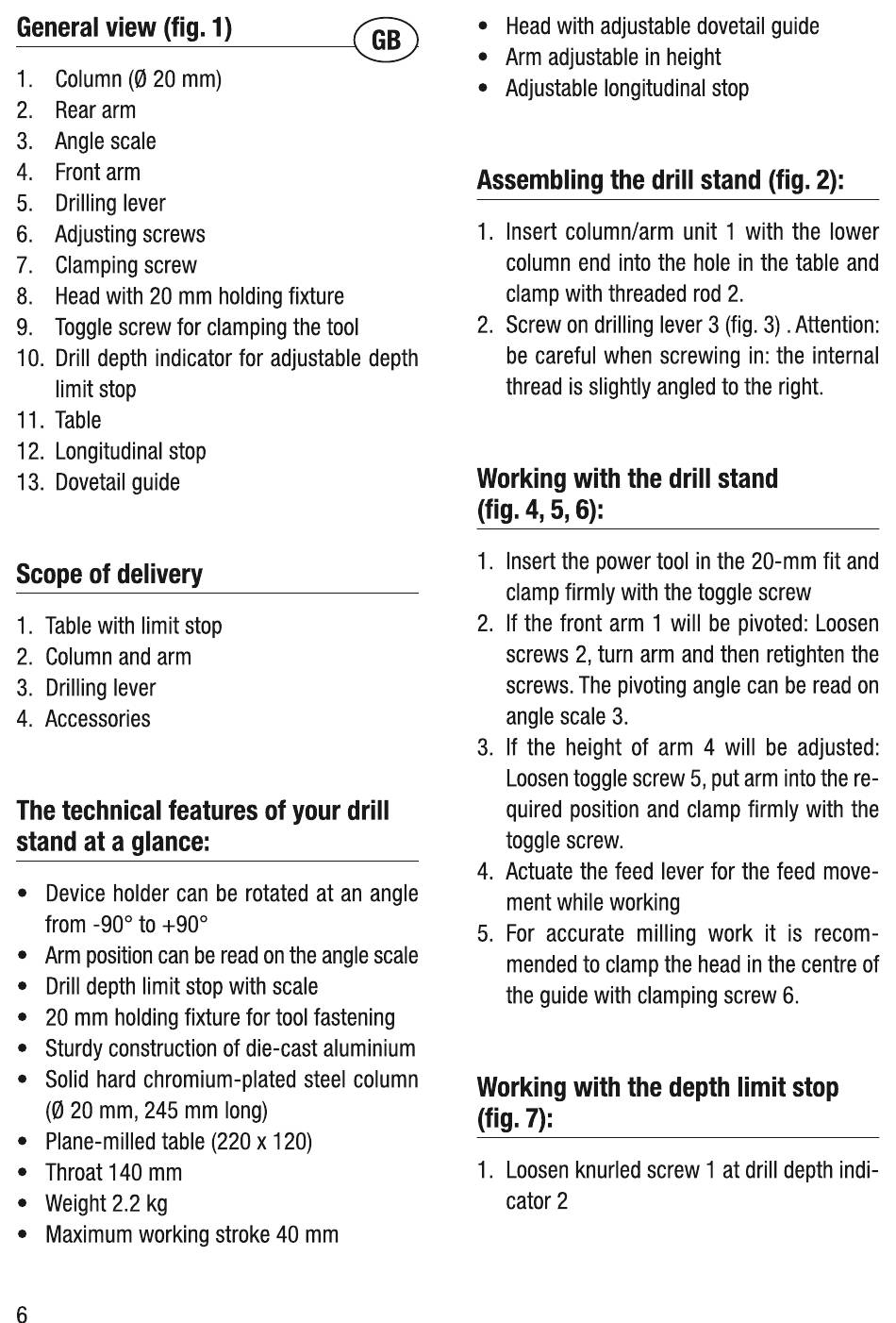

Proxxon MB 200 Gebrauchsanleitung Seite 6

General view (fig. 1)
1 Column(0 20 mm)
2 Rear arm
3 Angle scale
4 Front arm
Drilling lever
5
6 Adjusting screws
7 Clamping screw
8 Head with 20 mm holding fixture
9 Toggle screw for clamping the tool
Drill depth indicator for adjustable depth
10.
limit stop
11 Table
12 Longitudinalstop
13 Dovetailguide
Scope of delivery
1. Table with limit stop
2. Column and arm
3. Drilling lever
4. Accessories
The technical features of your drill
stand at a glance:
Device holder can be rotated at an angle
•
from -900 to +900
Arm position can be read on the angle scale
Drill depth limit stop with scale
20 mm holding fixture for tool fastening
Sturdy construction of die-cast aluminium
Solid hard chromium-plated steel column
(Ø20 mm, 245 mm long)
Plane-milled table (220 x 120)
Throat 140 mm
Weight2 2 kg
Maximumworking stroke 40 mm
6
• Headwith adjustabledovetailguide
• Arm adjustable in height
• Adjustable longitudinal stop
Assembling the drill stand (fig. 2):
1 Insert column/arm
column end into the hole in the table and
clamp with threaded rod 2.
2 Screw on drilling lever3 (fig. 3) .Attention:
be careful when screwing in: the internal
thread is slightly angledto the right.
Working with the drill stand
(fig. 4, 5, 6):
1 Insert the power tool in the 20-mm fit and
clamp firmly with the toggle screw
2 If the front arm 1 will be pivoted: Loosen
screws 2, turn arm and then retightenthe
screws.The pivotingangle can be readon
angle scale 3.
3. If the height of arm 4 will be adjusted:
Loosen togglescrew 5, put arm intothe re-
quired position and clamp firmly with the
toggle screw.
4 Actuate the feed lever for the feed move-
ment while working
For accurate milling work it is recom-
5
mendedto clampthe headin the centreof
the guide with clamping screw 6.
Working with the depth limit stop
(fig. 7):
1. Loosenknurled screw 1 at drill depth indi-
cator 2
unit 1 with the lower
