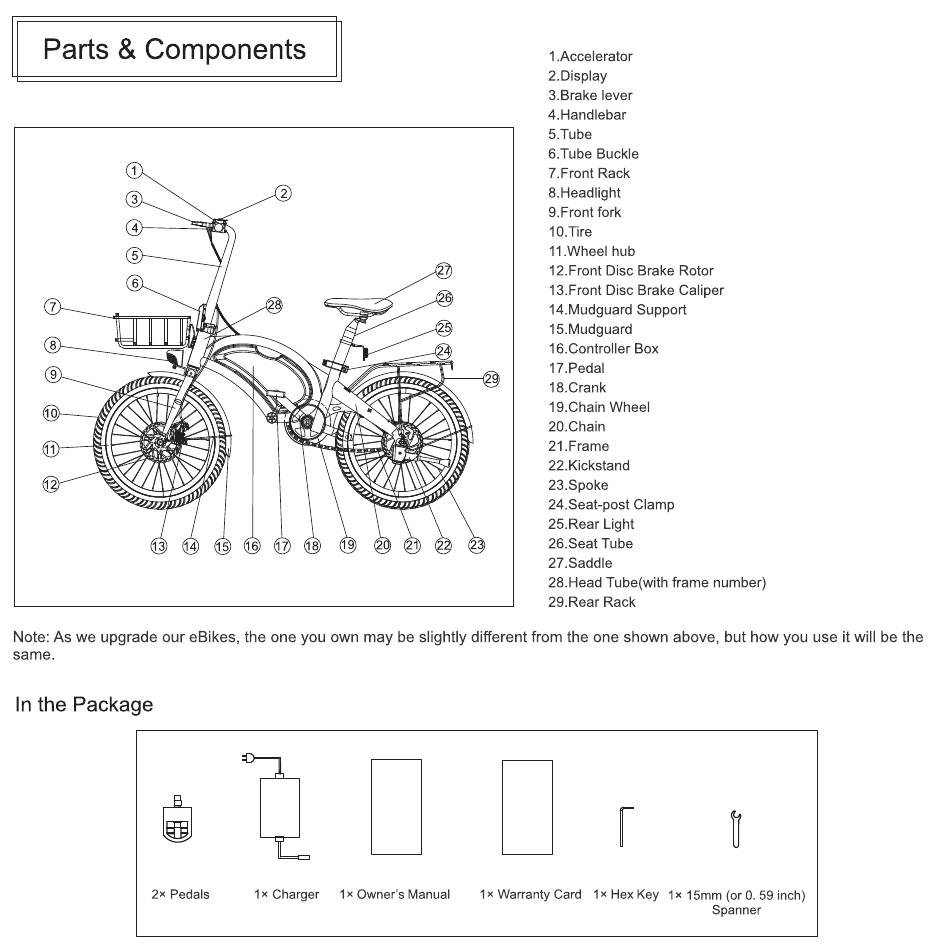

Parts & Components
5
6
7
8
Note: As we upgrade our eBikes, the one you own may be slightly different from the one shown above, but how you use it will be the
same.
In the Package
Pedals
lx Charger
lx
Owner's
Manual
1 .Accelerator
2. Display
3.Brake
lever
4. Handlebar
5.Tube
6. Tube
Buckle
7 Front
Rack
8. Headlight
9.Front
fork
10.Tlre
11 _Wheel
hub
12.Front
Disc Brake
13.Front Disc Brake Caliper
14.Mudguard
Support
15.Mudguard
16. Controller
Box
17.Pedal
18. Crank
19.Chain
Wheel
20. Chain
21.Frame
22. Kickstand
23.Spoke
24. Seat-post Clamp
25.Rear
Light
26.Seat
Tube
27.Saddle
28.Head Tube(with frame number)
29.Rear
Rack
1x Warranty Card lx Hex Key lx 15mm (or O.59 inch)
Rotor
Spanner
