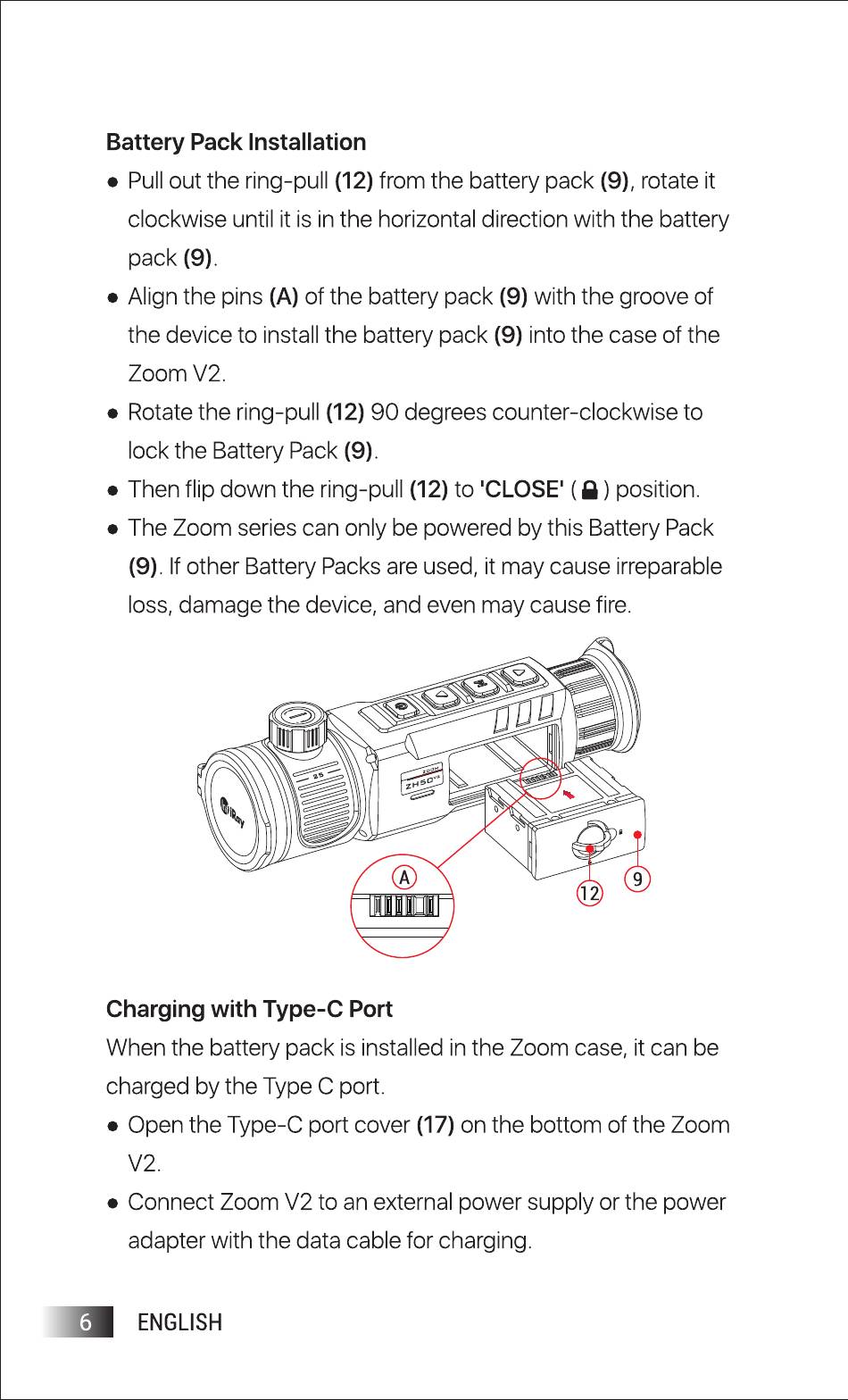

Battery
Pack Installation
• Pull out the ring-pull (12) from the battery pack (9), rotate it
clockwise until it is in the horizontal direction with the battery
pack (9).
• Align the pins (A) of the battery pack (9) with the groove of
the device to install the battery pack (9) into the case of the
Zoom
V2.
• Rotate the ring pull (12) 90 degrees counter-clockwise
lock the Battery Pack (9).
• Then flip down the ring-pull (12) to 'CLOSE' ( a ) position.
• The Zoom series can on y be powered by this Battery Pack
(9). If other Battery Packs are used, it may cause irreparable
loss, damage the device, and even may cause fire.
Charging with Type-C Port
When the battery pack is installed in the Zoom case, it can be
charged by the Type C port.
Open the Type-C port cover (17) on the bottom of the Zoom
• Connect Zoom V2 to an external power supp y or the power
adapter with the data cable for charging.
ENGLISH
to
9
