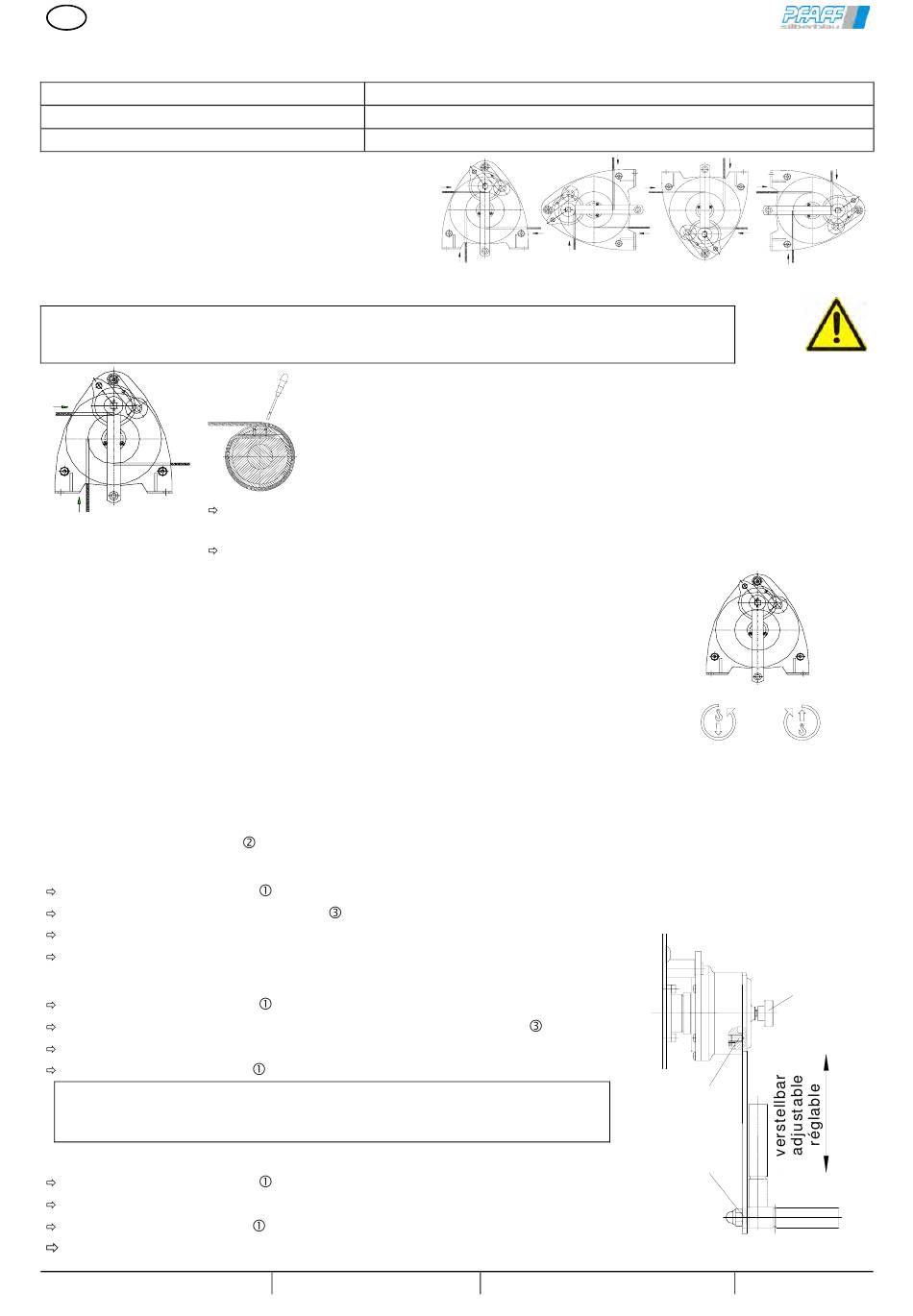

Wire rope winch >LAMBDA< BGV C1 for stages and studios
English
Mechanical Fixing:
Type
screws (material grade)
Number of screws
Mounting positions
Various rope paths can be applied subject to
the mounting positions as shown.
Pay attention to rope in-take and out-take.
Wire rope fixing
ATTENTION:
With wrong rope coiling the brake is not effective.
Rope coiling has to be effected acc. to the drawing.
rope direction
Operating Instructions
Safety Instruction
The winch is only suited for manual operation.
♦ Lifting the load by turning the crank clockwise.
♦ Lowering the load by turning the crank counter-clockwise.
Vario-Crank
The winch is equipped with a Vario-crank and a detachable crank arm. The crank arm is adjustable.
Suitable when using the winch in confined areas.
The crank arm with handle
Detaching the crank arm: (pay attention to freedom of motion)
loosen the adjusting screw
Pull the crank arm via the safety ball
store the crank arm
slightly tighten the adjusting screw
Fixing the crank arm: (pay attention to freedom of motion)
loosen the adjusting screw
put the crank arm into the guiding, strongly push over safety ball
push the crank arm into the required position
re-tighten adjusting screw
When pulling or pushing the crank arm make sure that there is
enough free space.
Pulling or pushing with force may cause accidents.
Adjustment
loosen the adjusting screw
bring the crank arm into the required position
re-tighten adjusting screw
Before every use check firm seat of the crank arm
technische Änderungen vorbehalten
Insert the rope in consideration
of winding direction.
Tighten the clamping screws
may be detached from the winch.
out of the guiding (expenditure of force is required)
design changes under reserve
030272015; 030272017; 030272018; 030272019
M 12 (min. 8.8)
For rope selection pay attention to the technical
data for the rope.
The wire rope must have a 10-fold safety against
breaking related to the lifting capacity.
The diameter of rope rollers have to be at least 20-
fold, the rope drum diameter at least 18-fold, the
rope diameter.
Calculate the rope length in such a way that at least
3 full turns of rope remain on the drum in lowest
load position.
changements techniques sous réserve
04.04.014
4
lowering
lifting
3
2
Seite / page 9
1
