SOLARWATT Battery vision Schnellstartanleitung Seite 12

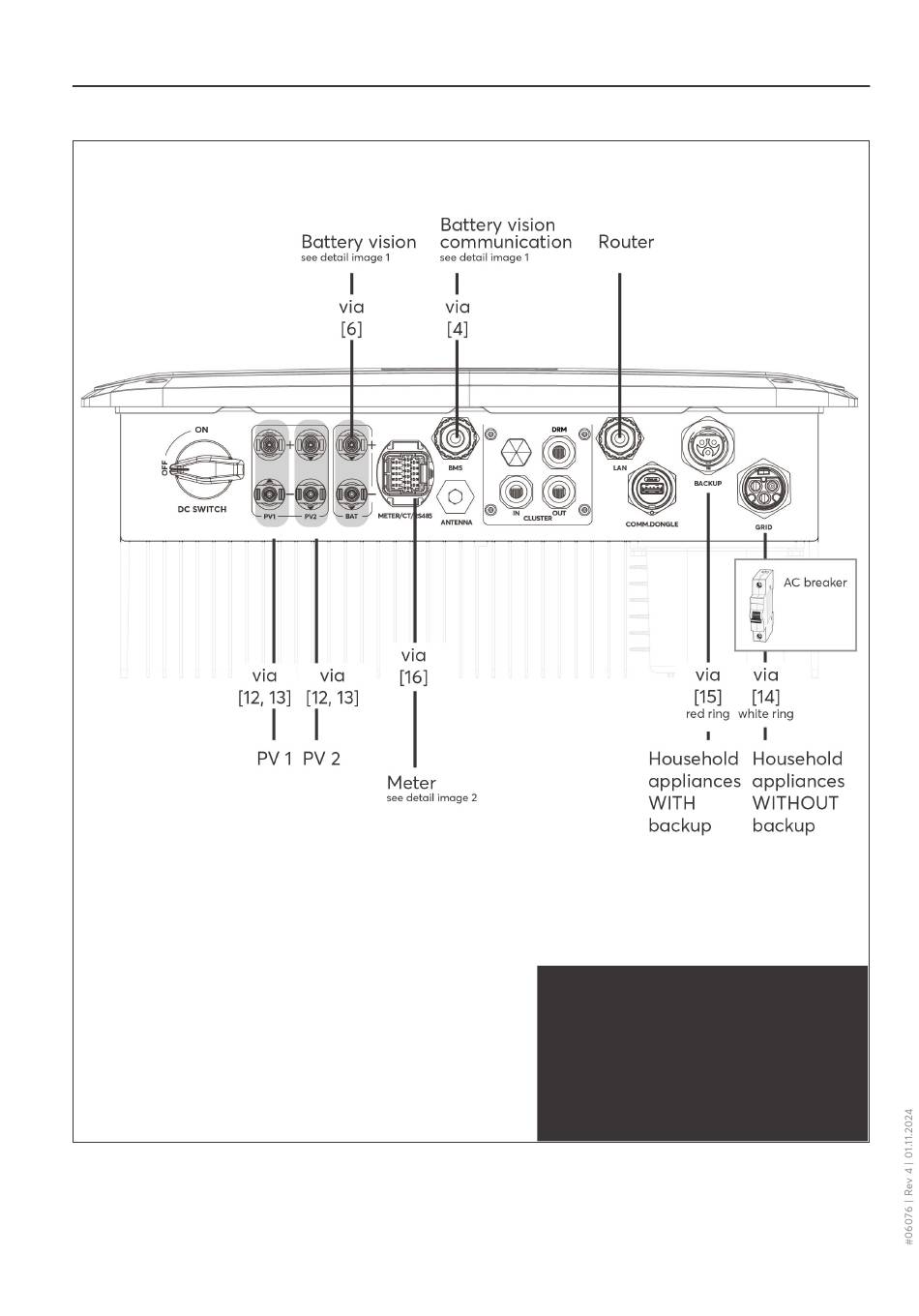

INVERTER WIRING
4 Communication cable
BMS - Inverter (1,5 m)
6 DC cable battery (1,5 m)
12 PV connectors
(MC4 Stäubli)
12
13 PV pin contacts
14 AC connector grid
15 AC connector backup
16 Meter adapter
Cable requirements:
PV: 4 -6 mm² MC4, Stäubli
AC: 4.0 - 16.0 mm²
Network: Standard LAN cable
