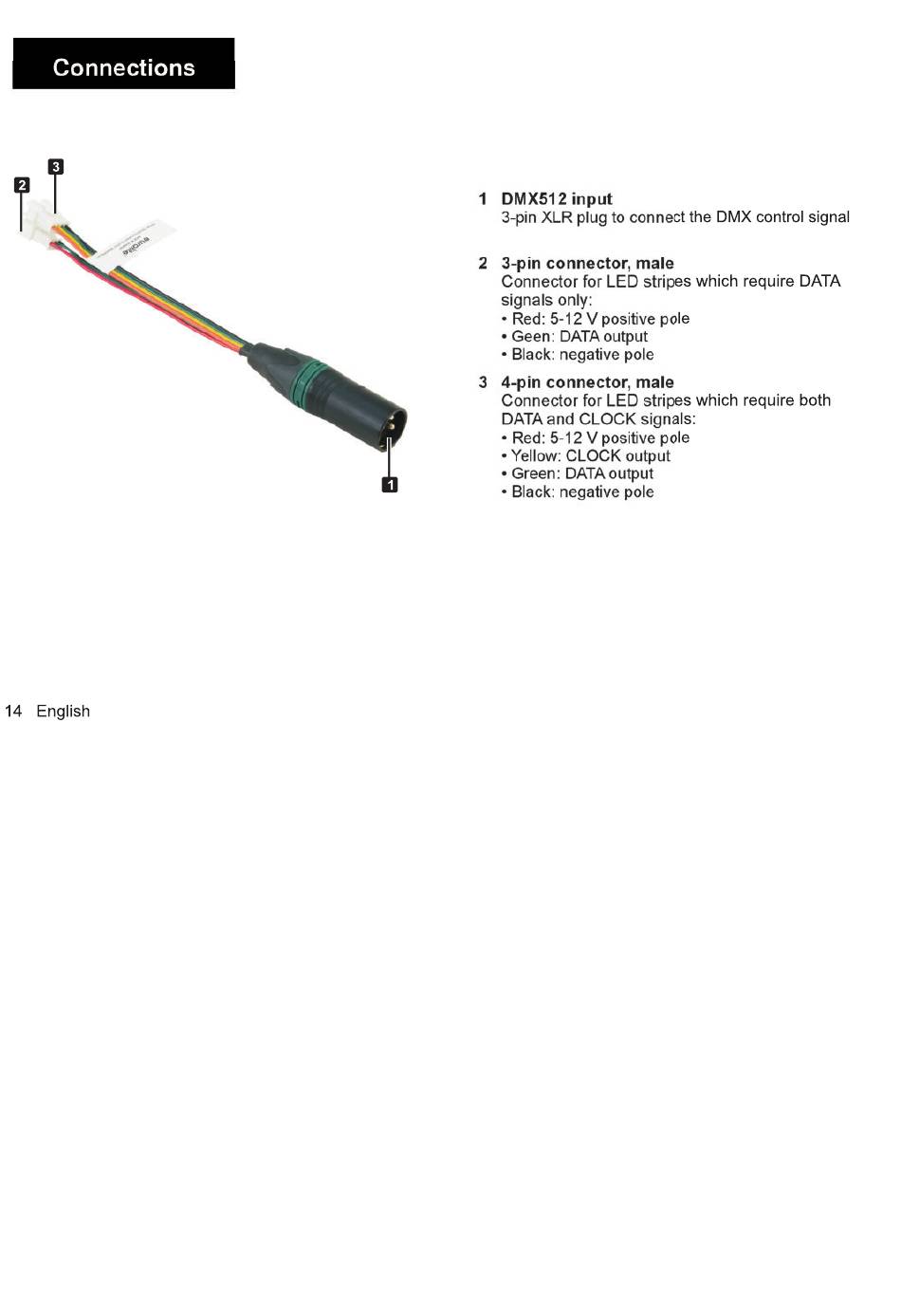

Connections
14 English
1 DMX512 input
3-pin XLR plug to connect the DMX control signal
2 3-pin connector, male
Connector for LED stripes which require DATA
signals only:
• Red: 5-12 V positive pole
• Geen: DATA output
• Black: negative pole
3 4-pin connector, male
Connector for LED stripes which require both
DATA and CLOCK signals:
• Red: 5-12 V positive pole
• Yellow: CLOCK output
• Green: DATA output
• Black: negative pole
