7. Operations
The following application is intended for the use on the table saw (as shown in
Fig.2), which can be taken as a reference for the operations on other machines:
1. Align and lock the table saw fence (as intended to setup a cut);
2. Rest the workpiece against the fence (as seen in Fig.2);
3. Loosen the locking knobs (B) and insert the T-block (A) into the T-slot;
4. While locking knobs are loosened, turn the adjusting knob (C) to the zero "0"
position;
5. Push the roller guide towards the workpiece until the two rollers (D) touch
the workpiece, while the other side of workpiece firmly pushed against the
fence;
6. Lock the roller guide on the table by tightening the locking knobs (B);
7. Turn the adjusting knob (C) to apply pressure to the workpiece. Rotating the
adjustment knob in either direction (clockwise or counter-clockwise) will
work;
8. Gently push on the workpiece to ensure that it is firmly secured between the
table saw fence and the Universal Roller Guide, if not, continue to adjust
until the pressure is appropriate.

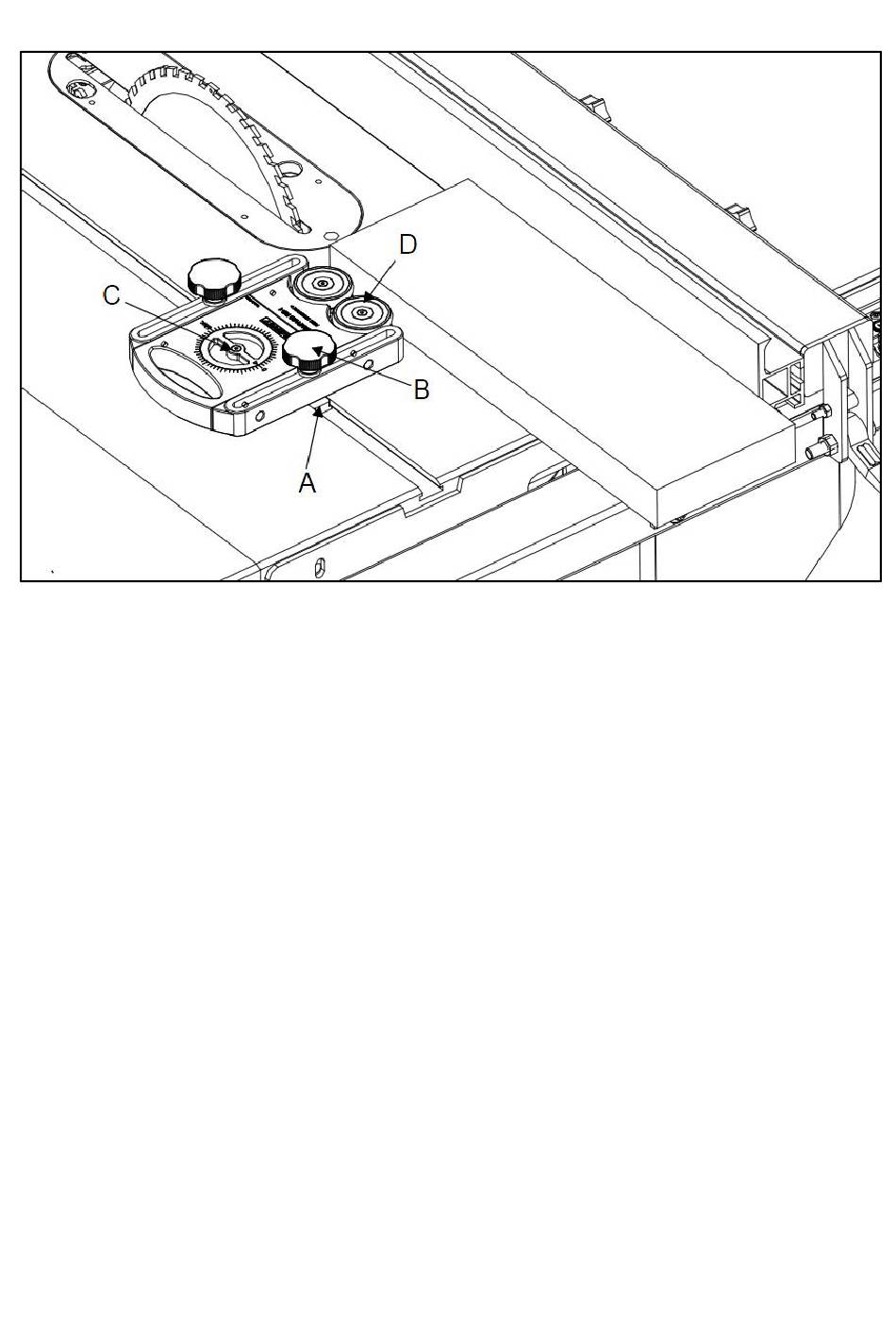

Fig.2
