4. General Instructions
4.1 The product is designed with roller pressure of 70N-100N and shall not
be used in scenarios higher than 100N.
4.2 The product is an accessorial tool. When used in conjunction with
another machines, all relevant operation requirements and safe
practices must be followed.
4.3 After usage, please properly store away in a clean and safe area.
4.4 Note that the rotation direction of the roller should be consistent with
the direction of wood feeding.
5. Specifications
Model
Main Body Thickness
Recommended Stock
Thickness
Roller Travel
Roller Diameter
Compatible T-slot Size
Roller Pressure
Overall Size
Weight
6. Feature Identification
No.
Name
A
T-block
B
Locking Knobs
C
Adjusting Knob
D
One-way Rollers
RG-1
1" (25.4 mm)
Min: 1/16" (2 mm)
Max: 2" (51 mm)
3/4" x 3/8" x 1" (19.05 x 25.4 x 9.525 mm)
8-3/4" x 7" x 2-41/64"
(222 x 175 x 67 mm)
4.2 lbs (1.9 kg)
2
2" (50.8mm)
Min: 1/16" (2 mm)
Max: 4" (102 mm)
6-1/2" (165 mm)
2" (50.8 mm)
70N～100N
8-3/4" x 7" x 3-5/8"
(222 x 175 x 92 mm)
5.5 lbs (2.5 kg)

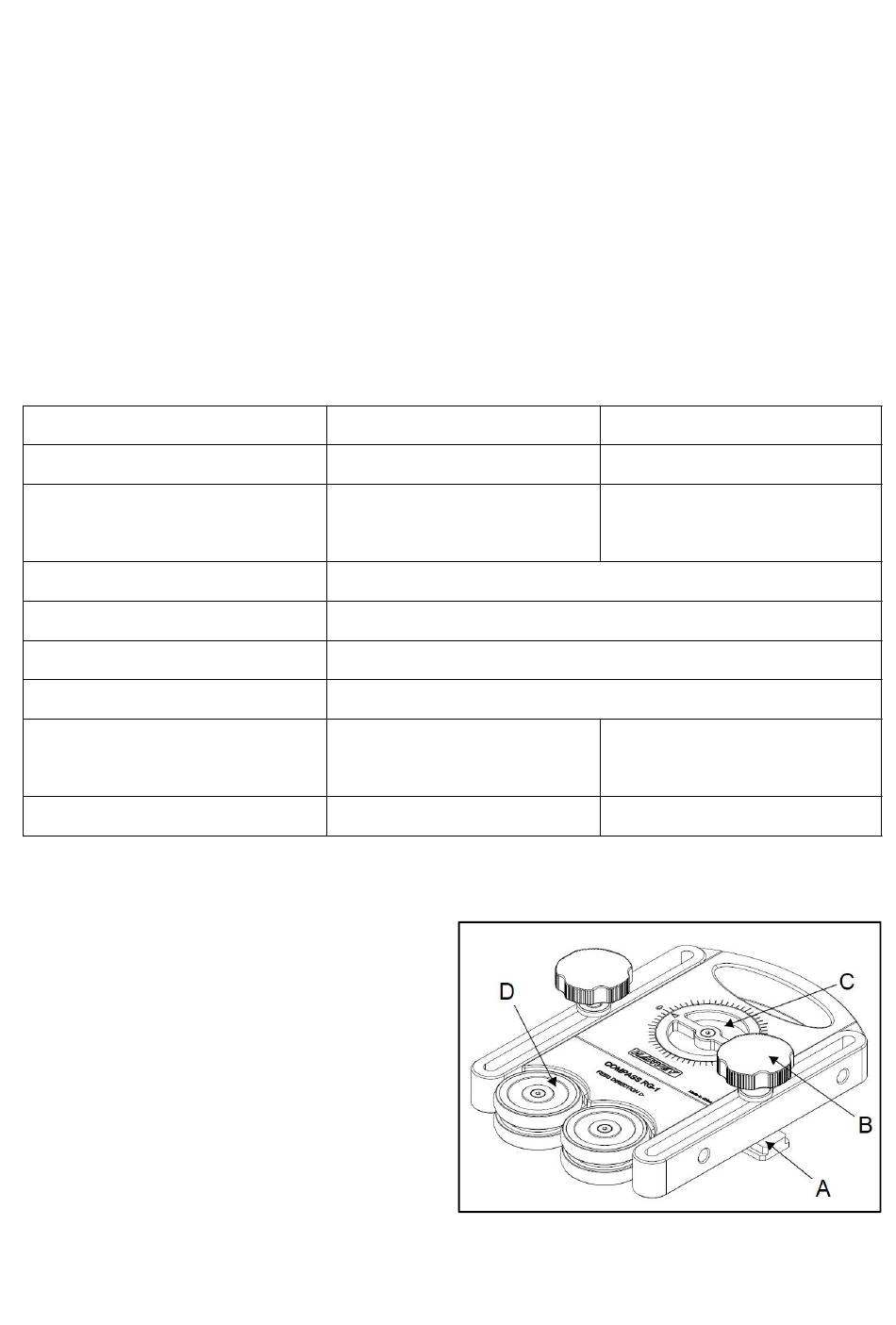

Fig.1
RG-2
